Stihl FS 490 C-M - Harness Fitting and Use

FS 360 C-M, FS 410 C-M, FS 460 C-M, FS 490 C-M
English
26

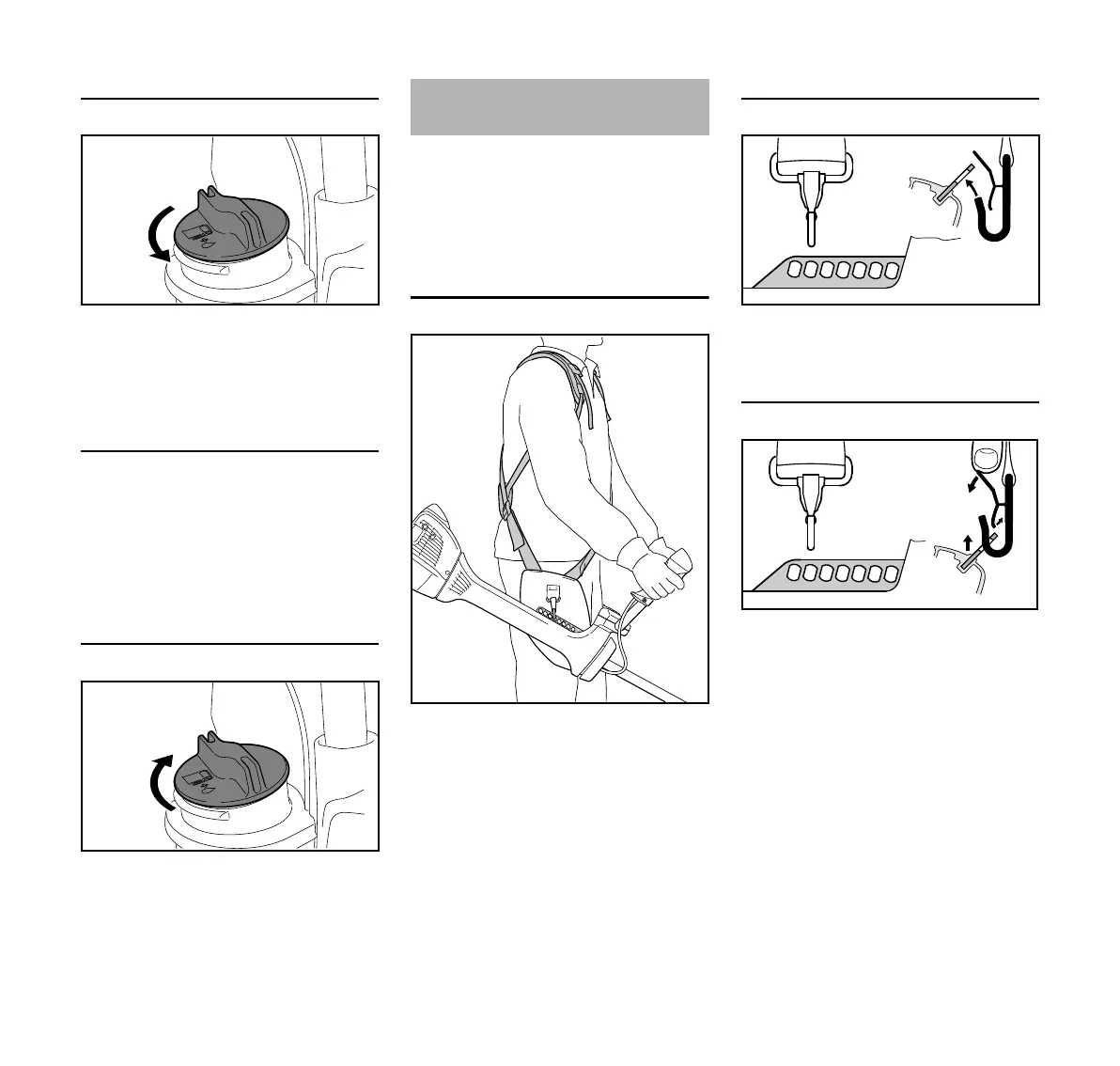

Opening the filler cap
N Turn the cap counterclockwise until
it can be removed from the tank
opening.
N Remove the cap.
Filling Up with Fuel
Take care not to spill fuel while fueling
and do not overfill the tank.
STIHL recommends you use the STIHL
filler nozzle for fuel (special accessory).
N Fill up with fuel.
Closing the filler cap
N Place the cap in the opening.
N Turn the cap clockwise as far as
stop and tighten it down as firmly as
possible by hand.
Fitting the full harness is described in
detail in the leaflet supplied with the
harness.
The type and style of the harness
depend on the market.
Fitting the Harness
N Put on the full harness (1).
N Adjust the length of the strap so that
the carabiner (2) is about a hand’s
width below your right hip.
N Attach the carabiner to the
machine's perforated rail (3) – see
“Attaching Machine to Harness”.
N Find the right attachment point for
the cutting attachment you are
using – see "Balancing the
Machine".
Attaching Machine to Harness
N Attach the carabiner (1) to the
perforated rail (2) on the drive tube.
Disconnecting Machine from Harness
N Press down the bar on the
carabiner (1) and pull the perforated
rail (2) out of the carabiner.
