Stihl FS 490 C-M - Mounting the Bike Handle; Handlebar Mounting

FS 360 C-M, FS 410 C-M, FS 460 C-M, FS 490 C-M
English
15

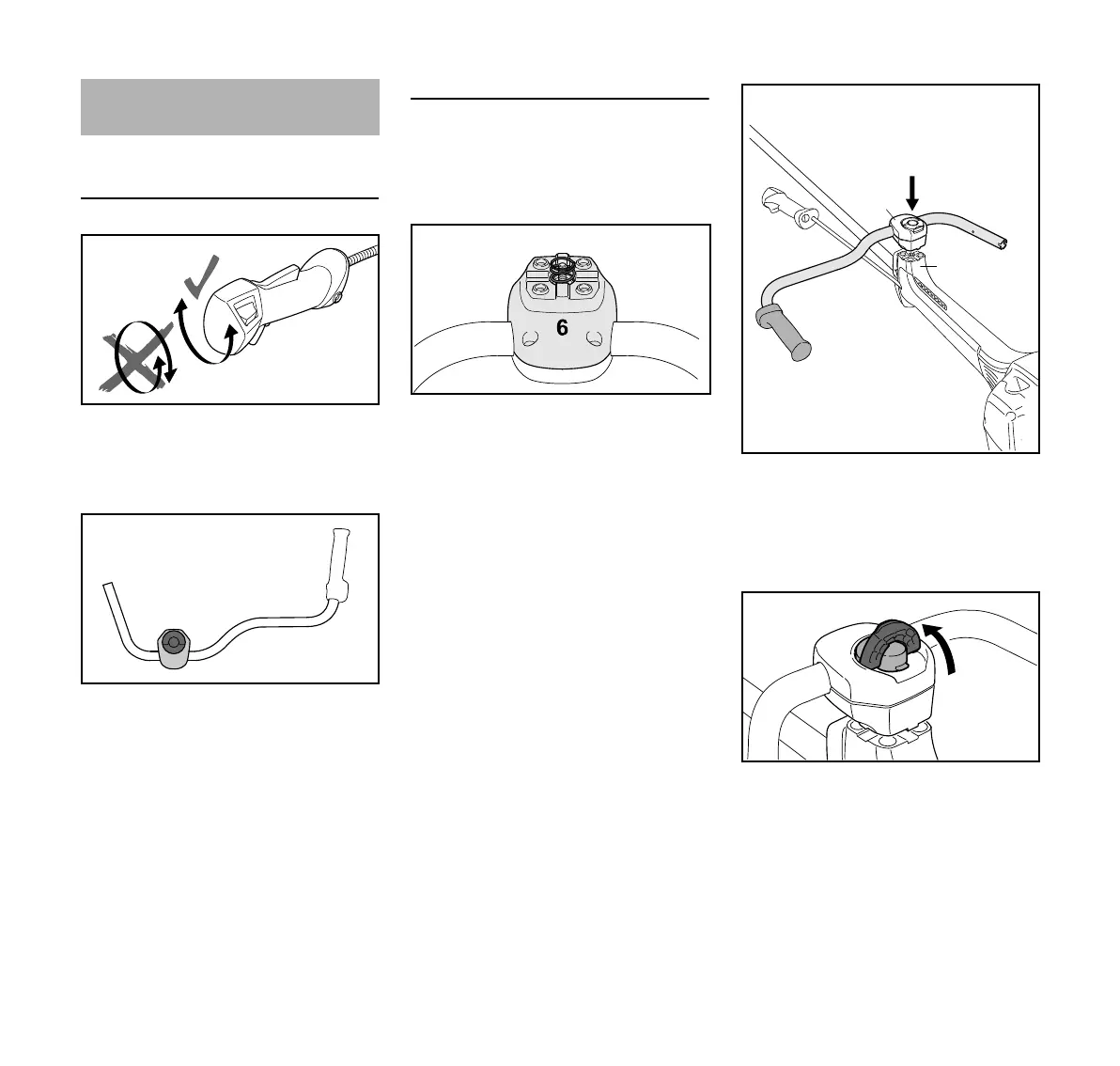

Mounting Bike Handle with Swivelling
Handle Support
Do not rotate the control handle (1)
between unpacking and mounting it on
the handlebar; see also chapter on
"Adjusting the Throttle Cable".
The machine is shipped with the clamp
moldings (4) mounted on the
handlebar (2).
N Do not change the position of the
clamp moldings on the handlebar
until the control handle is mounted.
Mounting the Handlebar
To assemble the swivelling handle
support it is necessary to fit a spring in
the clamps and secure them to the
handle support on the machine.
N Use the spring (5) from the parts kit
supplied with the machine.
N Push the spring (5) into the lower
clamp molding (6).
N Position the clamp moldings (4) with
handlebar (2) on the handle
support (7).
N Do not rotate the handlebar in the
clamp moldings.
N Raise the grip of the wing screw (8)
to the upright position.
Mounting the Bike Handle
1
3BA003 KN
3BA004 KN
4
2
3BA005 KN
5
7
3BA006 KN
2
4
8
3BA007 KN
