Stihl FSA 135 R User Manual

0458-662-0121-A
16

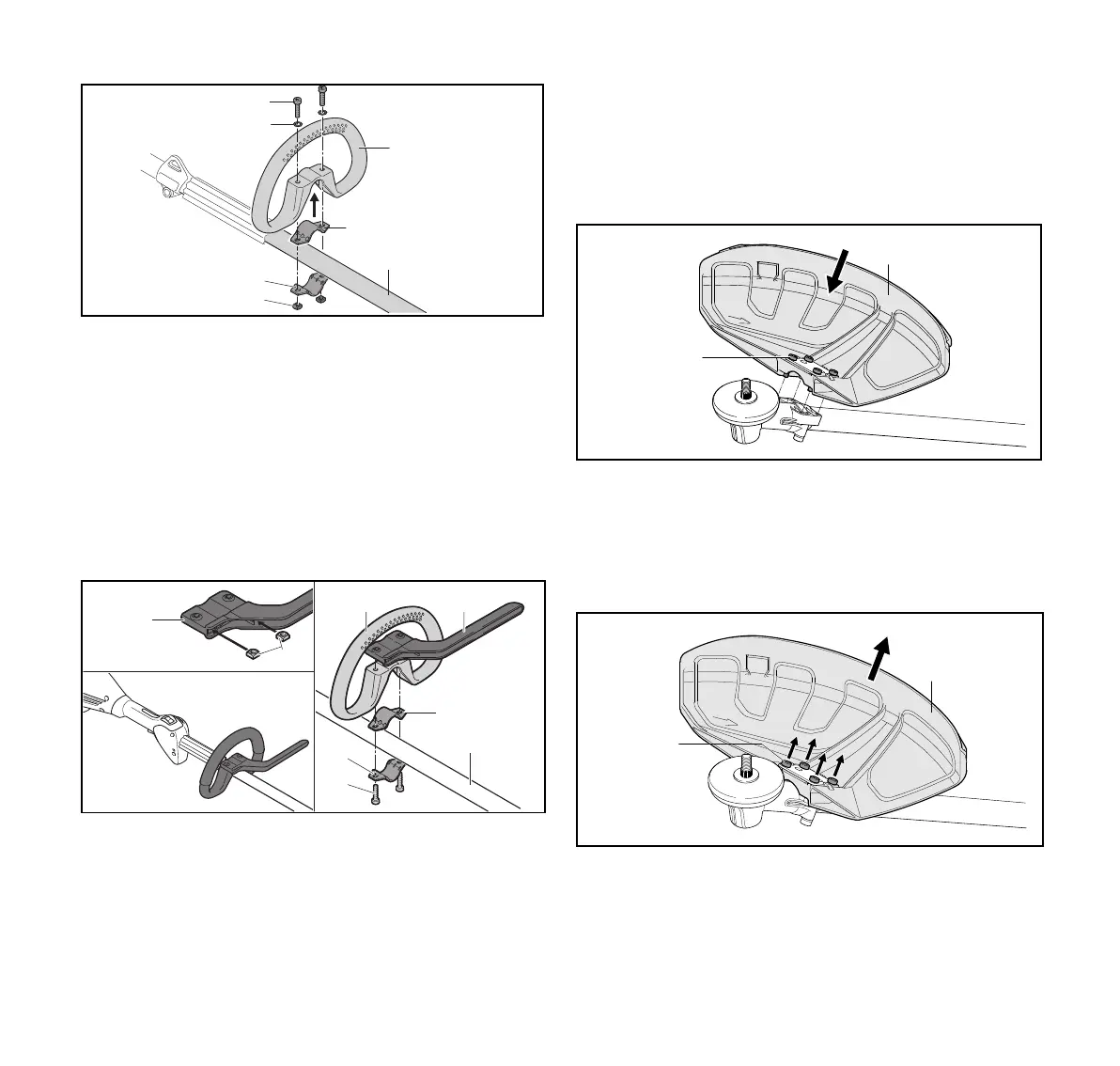

English 7 Assembling the Trimmer
► Fit the clamp (4) in the loop handle (3).
► Place the loop handle (3) with clamp (4) on the shaft (5).
► Fit the washers (2) on the screws (1).
► Press the clamp (6) against the shaft (5).
► Insert the screws (1) through holes in the loop handle (3)
and clamps (4 and 6).
► Fit and tighten down the nuts (7) firmly.
7.2 Mounting the Barrier Bar
► Switch off the brushcutter and remove the battery.
► Insert the nuts (2) in the barrier bar (1) so that the holes
line up.
► Fit the clamp (5) in the loop handle (3).
► Place the loop handle (3) with clamp (5) and barrier bar (4)
on the shaft (6).
► Press the clamp (7) against the shaft (6).
► Insert screws (8) and tighten.
7.3 Mounting and Removing the Deflector
7.3.1 Mounting the guard
► Switch off the brushcutter and remove the battery.
► Push the deflector (1) into the guides on the gear housing
up to the limit stop.
► Insert the screws (2) and tighten them firmly.
7.3.2 Removing the Deflector
► Switch off the brushcutter and remove the battery.
► Unscrew the screws (2).
► Pull off the deflector (1).
5
4
6
7
1
2
3
0000-GXX-3083-A2
1
2
3 4
5
6
7
8
0000-GXX-4589-A0
1
2
0000-GXX-3027-A0
0000-GXX-3029-A0
1
2

Stihl FSA 135 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Sound power level	92 dB
Vibration emission	3.7 m/s²
Sound pressure level	81 dB
Cutting diameter (max)	420 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1880 mm
Weight	4300 g
