English 7 Assembling the Trimmer

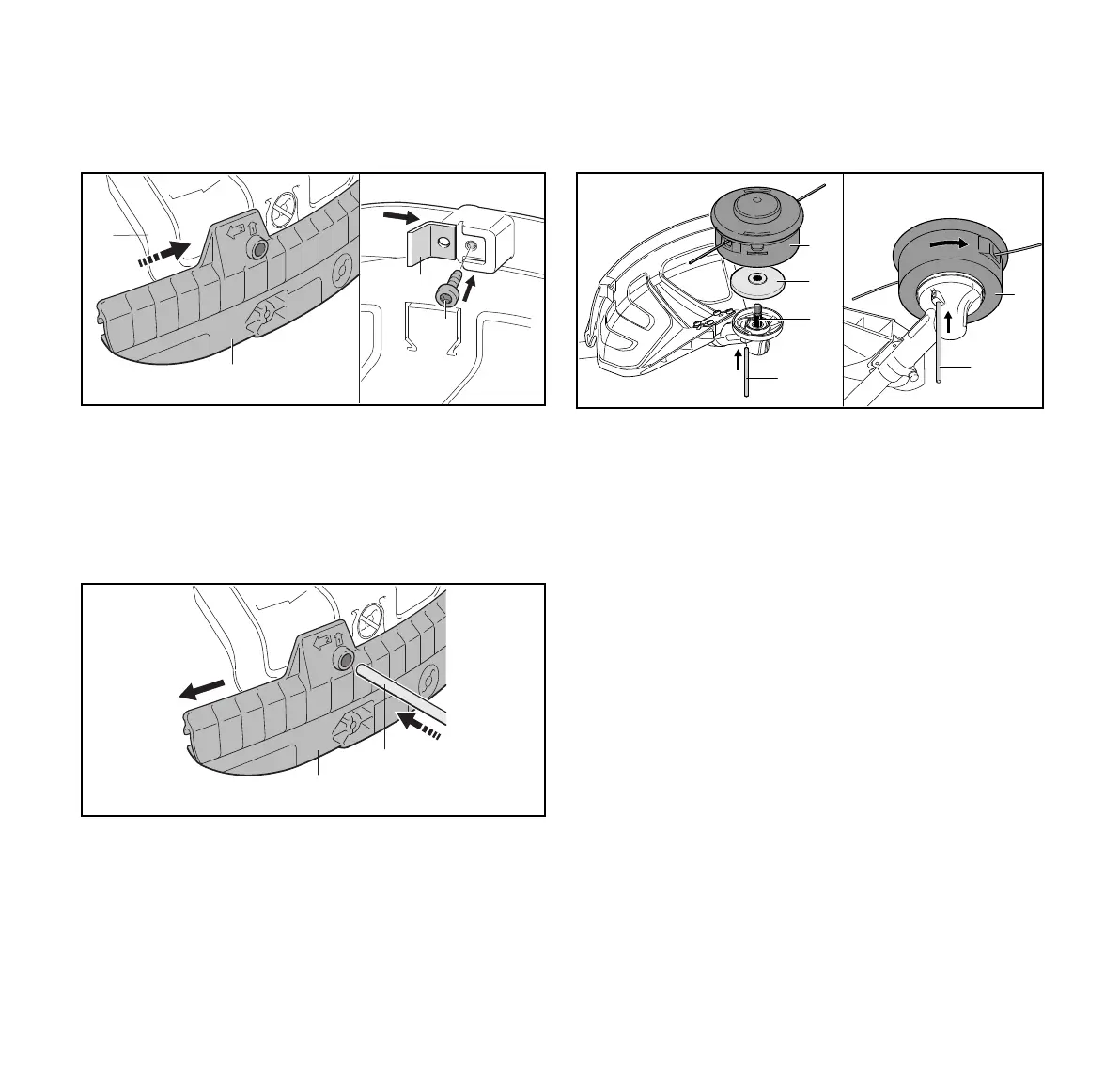

7.4 Fitting and Removing the Skirt
7.4.1 Fitting the Skirt
► Switch off the brushcutter and remove the battery.
► Slide the guide slot in the skirt (2) onto the universal
deflector (1) – it must snap into position.
► Push the line limiting blade (3) into the slot in the skirt (2).
► Insert and tighten down the screw (4) firmly.
7.4.2 Removing the Skirt
► Switch off the brushcutter and remove the battery.
► Insert the stop pin (2) into the hole in the skirt (1).
► Remove the skirt (1) with the stop pin (2).
The line limiting blade (1) can be left on the skirt.
7.5 Mounting and Removing the Mowing Head
7.5.1 Mounting the Mowing Head
► Switch off the brushcutter and remove the battery.
► Place the thrust plate (2) on the shaft (3) so that its smaller
diameter faces up.
► Fit the mowing head (1) on the shaft (3) and turn it
counterclockwise by hand.
► Insert the stop pin (4) in the bore up to the limit stop and
hold it depressed.
► Turn the mowing head (1) counterclockwise until the stop
pin (4) engages in position.
The shaft (3) is now blocked.
► Tighten down the mowing head (1) firmly by hand.
► Remove the stop pin (4).
7.5.2 Removing the Mowing Head
► Switch off the brushcutter and remove the battery.
► Insert the stop pin in the bore up to the limit stop and hold
it depressed.
► Rotate the mowing head until the stop pin engages in
position.
The shaft is now blocked.
► Unscrew the mowing head clockwise.
► Remove the thrust plate.
► Remove the stop pin.
