FSA 90 R
English
15

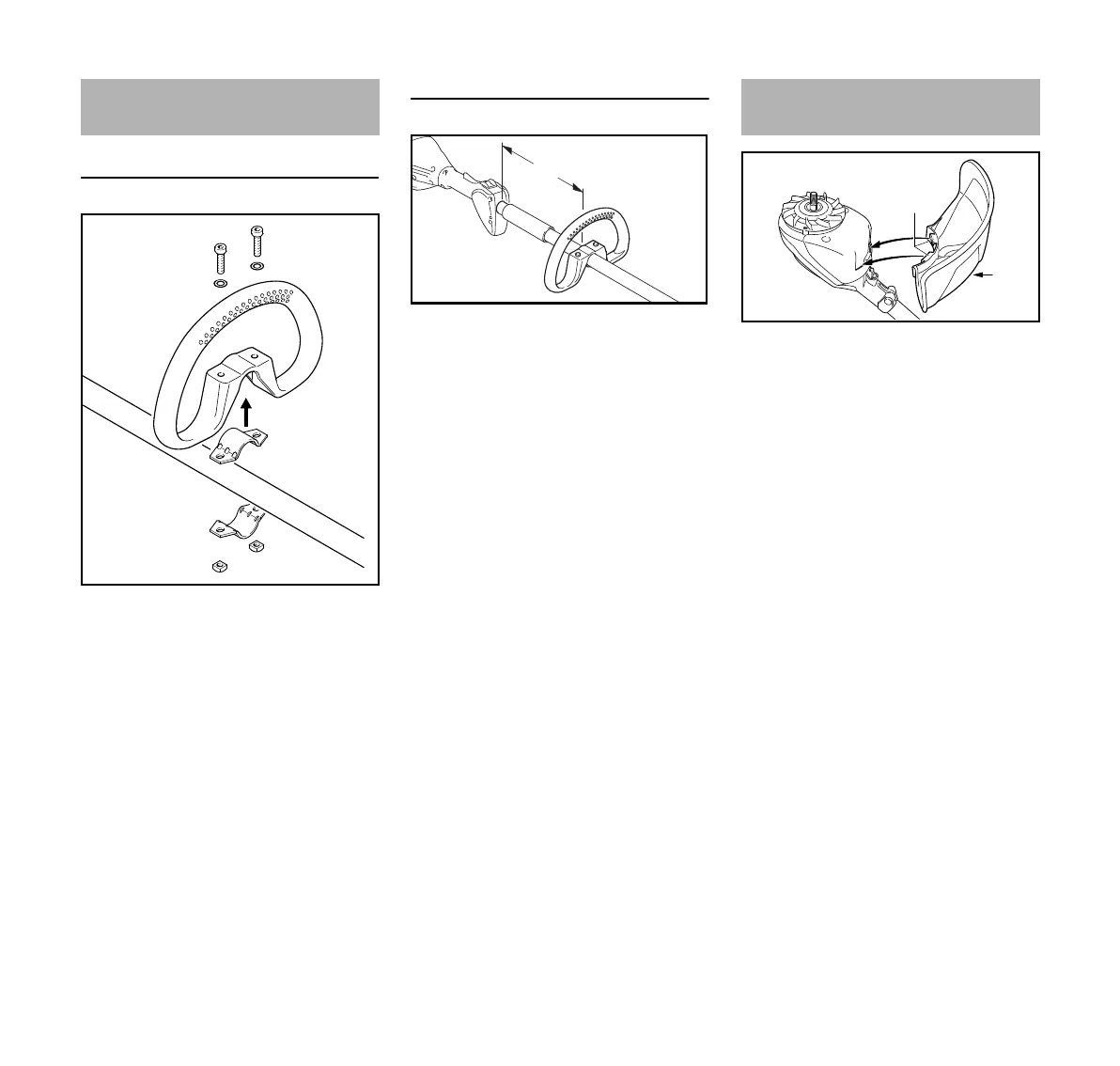

Mounting the Loop Handle
N Place the clamp (3) in the loop
handle (4) and position them both
against the shaft (5).
N Position the clamp (6) against the
shaft.
N Line up the holes.
N Fit washers (8) on the screws (7)
and insert the screws in the holes.
Fit the square nuts (1) and screw
them down as far as stop.
N Go to "Adjusting and Securing the
Loop Handle".
Adjusting and Securing the Loop Handle
The loop handle can be adjusted to suit
the height and reach of the operator and
the application by changing
distance "A".
Distance A when using mowing heads:
Max. 30 cm (12 in)
N Slide the handle to the required
position.
N Line up the loop handle (4).
N Tighten down the screws so that the
handle cannot be rotated on the
shaft.
N Position the deflector against the
motor housing.
N Push hooks (1) on deflector into the
recesses in the motor housing.
N Insert the screw (2) and tighten it
down firmly.
Mounting the Loop Handle
7
8
5
4
1
6
1
3
8
7
3988BA001 KN
4
A
0000-GXX-0571-A0
Mounting the Deflector
1
3988BA039 KN
2

Stihl FSA 90 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Vibration emission	4.8 m/s²
Sound pressure level	73 dB
Cutting diameter (max)	380 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1770 mm
Weight	2800 g
