Stihl FSA 90 R User Manual

FSA 90 R
English
23

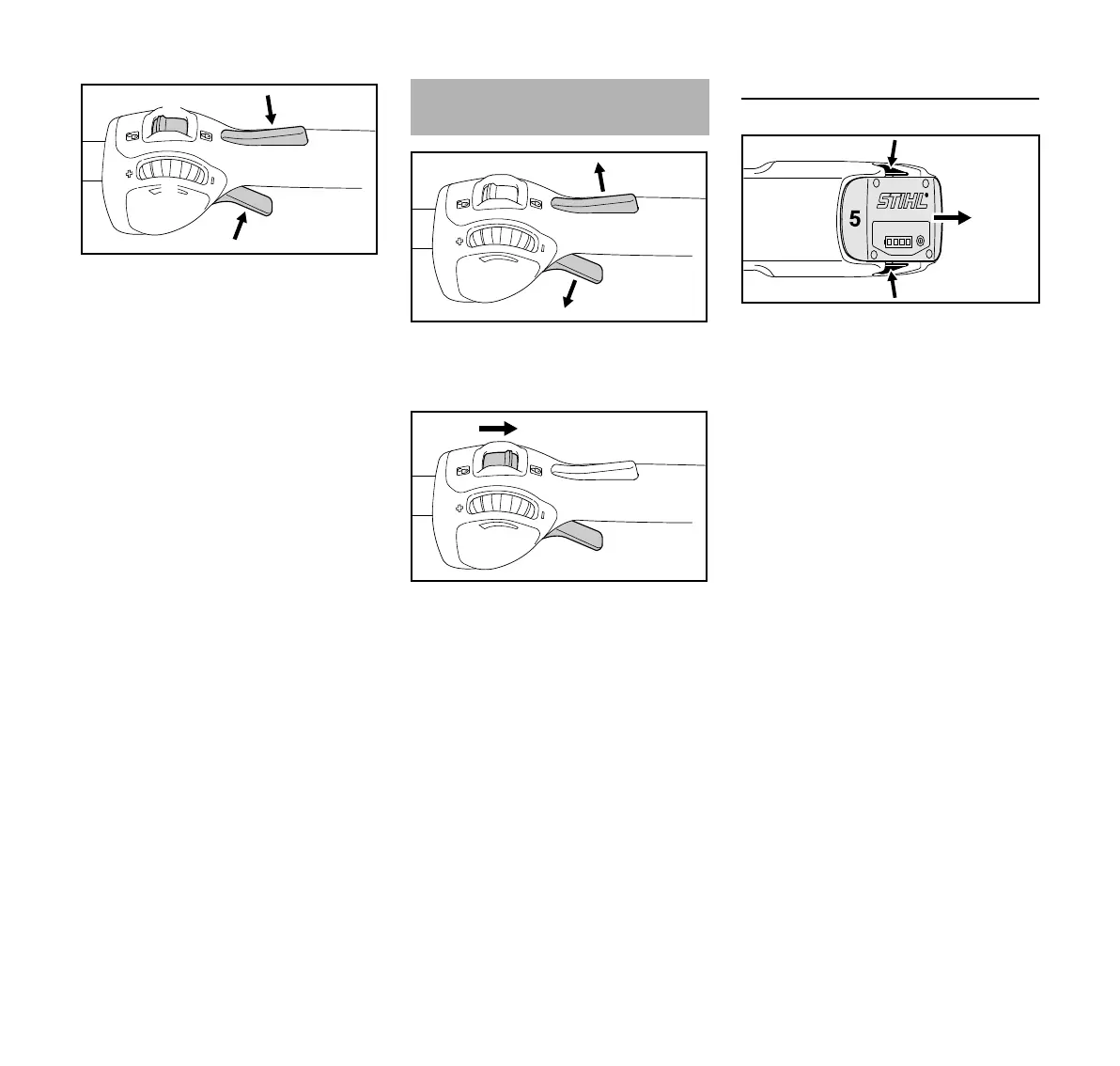

N Push down the trigger switch
lockout (3) and depress the trigger
switch (4) and hold them in that
position.
The motor runs only if the retaining
latch (2) is on ‚ and the trigger switch
lockout (3) and trigger switch (4) are
operated simultaneously.
N Release the trigger switch
lockout (1) and the trigger
switch (2).
N Move the retaining latch (3) to ƒ –
the trigger switch (2) cannot be
operated – the power tool is locked
to prevent start-up.
Remove the battery from the power tool
during breaks and after finishing work.
Removing the Battery
N Press in both locking tabs (4) at the
same time to unlock the battery (5).
N Take the battery (5) out of the
housing.
When the power tool is not in use, store
it so that it does not endanger others.
Secure it against unauthorized use.
3988BA023 KN
3
4
2
Switching Off
3988BA024 KN
1
2
3988BA025 KN
2
3
4
4
3905BA016 KN

Stihl FSA 90 R Specifications

General

Type	String trimmer
Cordless	Yes
Head type	Nylon line
Handle type	D-loop handle
Product color	Black, Orange, White
Vibration emission	4.8 m/s²
Sound pressure level	73 dB
Cutting diameter (max)	380 mm
Power source	Battery
Battery voltage	36 V

Weight and Dimensions

Length	1770 mm
Weight	2800 g
