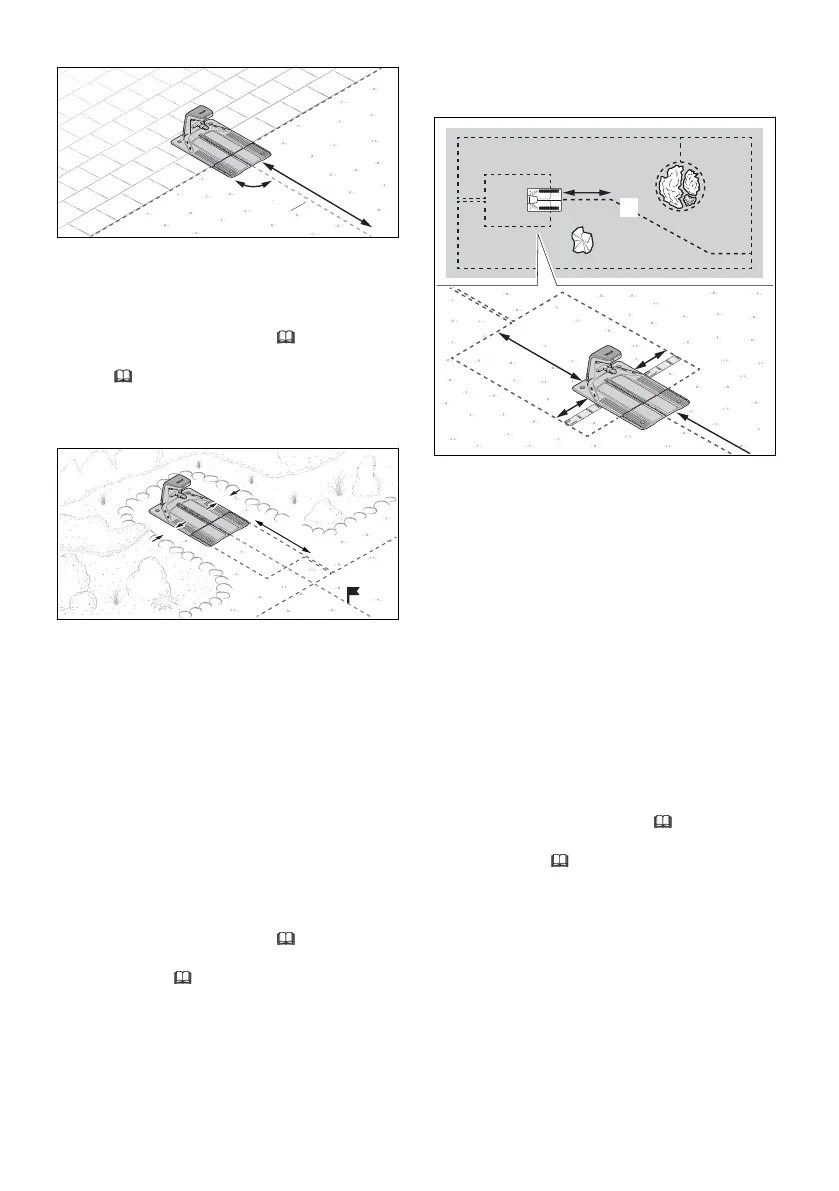

The docking station is partially in the mowing
area and the guide wire (1) can be routed for
a =2 m in a straight line from the docking station
to the mowing area.
►
Prepare the docking station, 7.3.
► Setting up the docking station in a mowing
area, 7.4.
Setting up the docking station outside the mow‐
ing area
The docking station is outside the mowing area.
The minimum lateral distance toward adjacent
areas must be at least a = 15 cm.
The minimum distance between the front edge of
the docking station and the mowing area must be
at least b = 2 m.
With this variant, it is mandatory to define a start‐
ing point (1) within the mowing area at the con‐
clusion of commissioning. The robotic mower
then starts mowing from this point and not
directly from the docking station. Starting points
can be set using the MY iMOW
®
app. The
approach frequency of the starting point (1) must
be set in the app at 100%.
►
Prepare the docking station,
7.3.
► Setting up the docking station outside the
mowing area, 7.5.
Setting up the docking station in the center of the
mowing area
The docking station is positioned as an island in
the center of the mowing area.
With this variant, the perimeter wire is routed
around the docking station toward the rear and
the edge of the mowing area. The guide wire is
routed toward the front to the edge of the mow‐
ing area.
The minimum lateral distance to adjacent areas
must be at least a = 37 cm (length: 1x iMOW
®
Ruler).
The minimum distance between the rear edge of
the docking station and the edge of the mowing
area must be b = 2 m.
It must be possible to route the guide wire (1) for
c = 2 m in a straight line from the docking station
to the mowing area.
►
Prepare the docking station,
7.3.
► Set up the docking station in the center of the
mowing area, 7.6.
