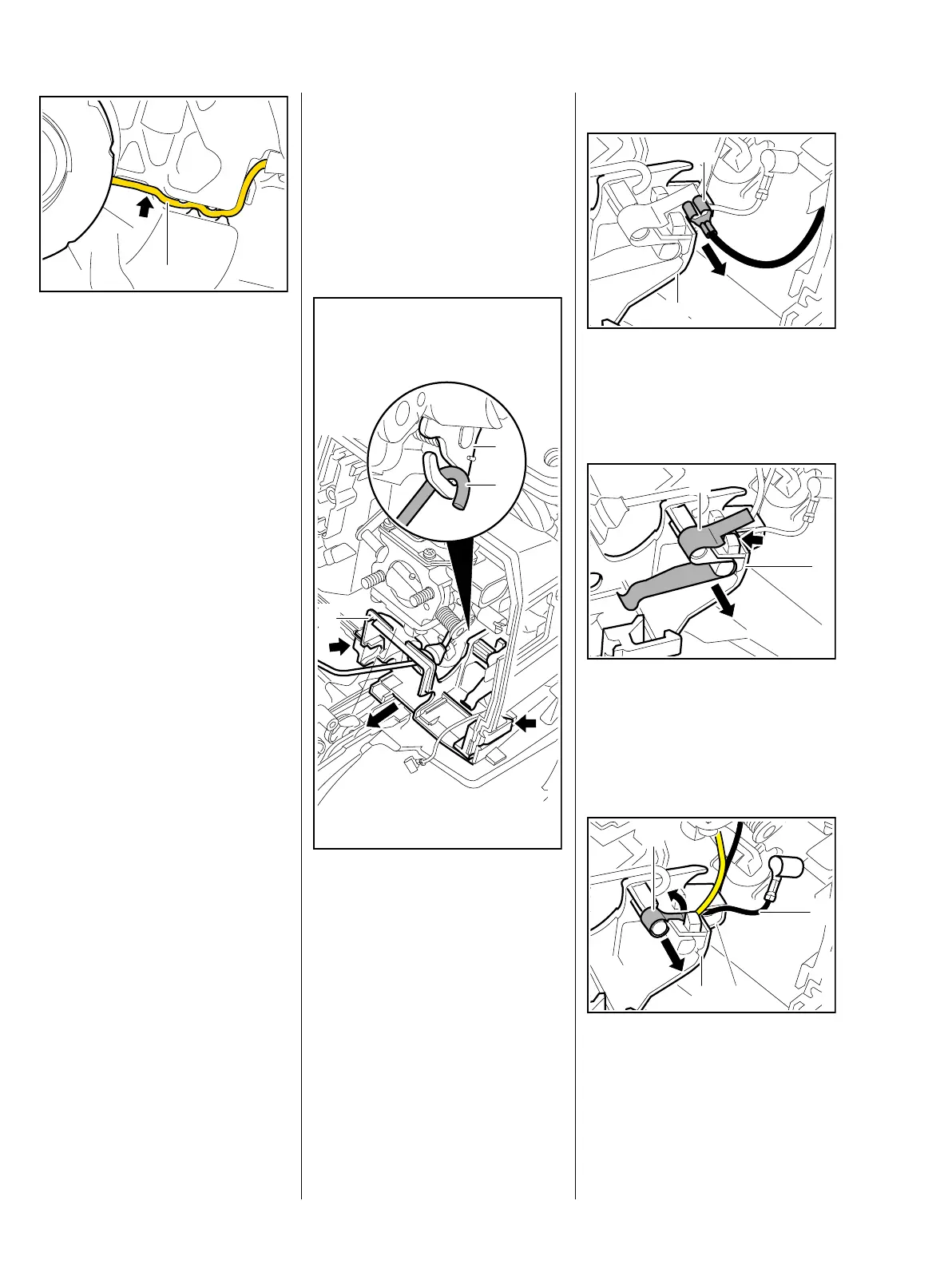

The generator wire (1) must locate
fully in the recess in the area of the
expansion loop (arrow).
The flywheel must not touch the
generator wire
– this could cause a break in power
supply.
– Install the flywheel, b 7.7
– Install the control unit, b 7.2
– Reassemble all other parts in the
reverse sequence.
1166RA157 TG
1
7.12 Contact Spring
– Remove the filter base, b 13.3
– Remove the switch shaft,
b 11.1.1
All models
: Lift locking tabs (arrows) and pull
out the retainer (1) part way,
disconnect the throttle rod (2)
from the carburetor (1) at the
same time.
1166RA158 TG
1
2
3
Models with M-Tronic
: Pull out retainer (1) part way and
disconnect terminal (2).
All models
: Lift the contact spring (1) a little
and ease it over the tab (arrow).
: Ease the contact spring (1) out of
the guides in the retainer (2).
: Turn the ring terminal (1) up and
pull it off the pivot pin on the
retainer (2).
1166RA159 TG
2
1
1166RA160 TG
1
2
1166RA161 TG
1
2 4
3
