66 MS 661, MS 661 C-M

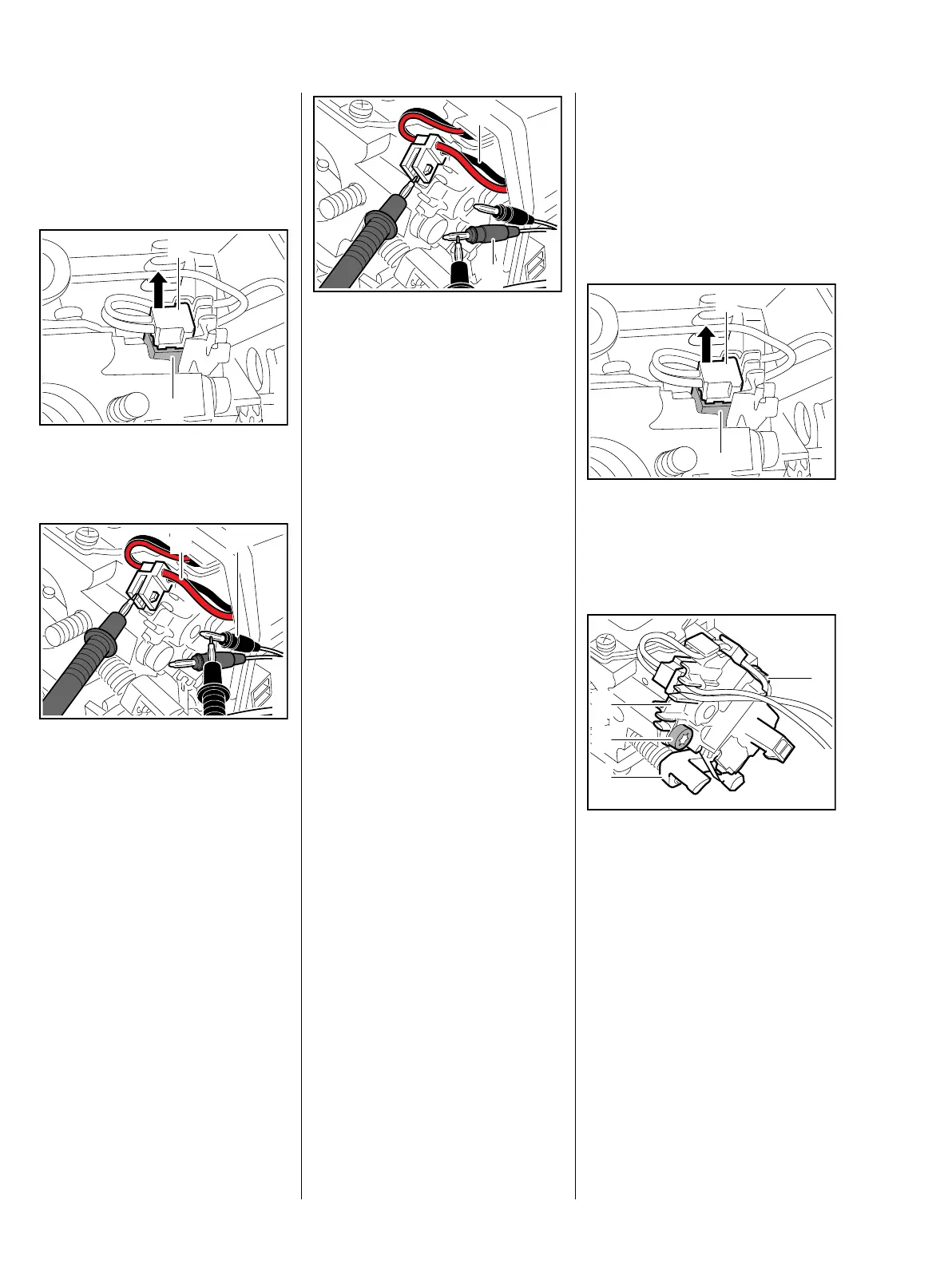

Checking wires between
solenoid valve unit and
diagnostic socket
– Connect test cable, b 8.3.2
: Pull connector (1) off the solenoid
valve (2).
: Measure resistance between red
wire (1) on the solenoid valve's
connector and test cable's black
plug (2).
Specified value: < 10 Ω
1166RA236 TG
2
1
1166RA274 TG
1 2
: Measure resistance between
black wire (1) on the solenoid
valve's connector and test
cable's red plug (2).
Specified value: < 10 Ω
If the specified values are not
obtained
– Check contact faces on the plug
and connector tag, and wires for
break, or contact between cable
lug / terminal socket, replace
switch unit if necessary, b 8.5
– Reassemble all other parts in the
reverse sequence.
8.4 Wiring Harness
The wires of the M-Tronic and the
short circuit wire are combined in a
wiring harness. Removal and
installation are described in the
chapter on "Wiring Harness with M-
Tronic / Heating, Removing and
Installing, b 7.10.
1166RA275 TG
1
2
8.5 Switch Unit
– Remove the filter base, b 13.3
– Test the switch unit, b 8.3.5
– Remove the carburetor, b 13.4
: Remove the connector (1) from
the solenoid valve (2) – do not
tug wires to remove the
connector.
: Take out the screws (1) and
remove the switch unit (2).
: Check lever on choke shaft (3),
replace if necessary, b 13.5.7
1166RA236 TG
2
1
1166RA276 TG
1
2
3
1

Stihl MS 661 C-M Specifications

General

Idle speed	- RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	800 mm
Product color	Black, Grey, Orange
Automatic oiling	Yes
Engine displacement	91.1 cm³
Power source	Gasoline
Sound power level	118 dB
Vibration emission	6.9 m/s²
Sound pressure level	105 dB

Weight and Dimensions

Weight	7400 g
