Stihl RE 120 - Fitting and Removing the High-Pressure Hose; Attaching and Removing the Spray Gun

0458-620-0121-A
17
English 7 Assembling the pressure washer

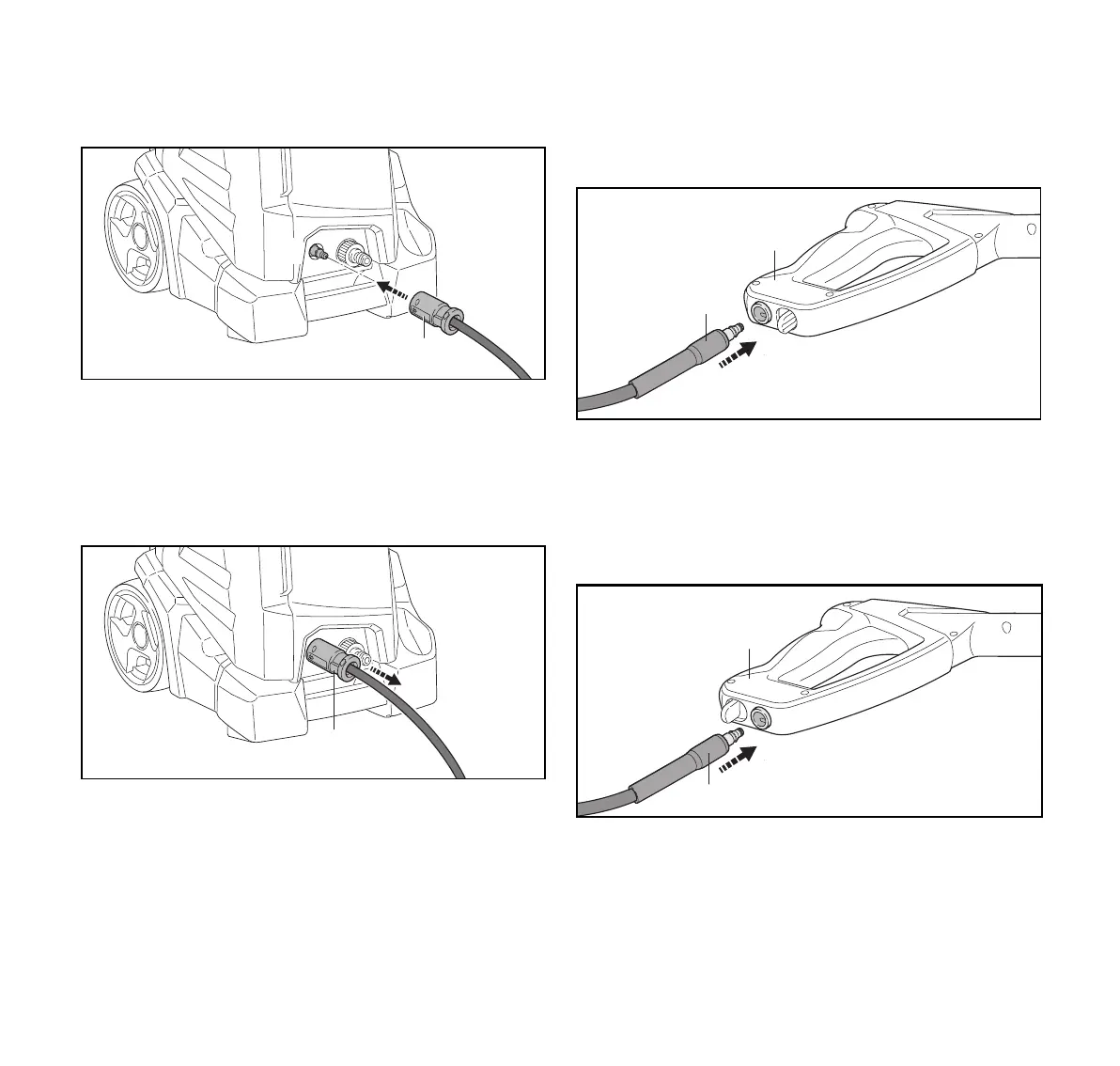

7.3 Fitting and removing the high-pressure hose
7.3.1 Connecting the high-pressure hose
► Push coupling (1) onto the connector (2).
The coupling (1) audibly engages.
► If the coupling (1) cannot be pushed easily onto the
connector: Grease the gasket on the connector (2) with
grease for fittings.
7.3.2 Removing the high-pressure hose
► Pull off coupling (1).
7.4 Attaching and removing the spray gun
7.4.1 Attaching the spray gun
RE 110
► Push connector (1) into spray gun (2).
The connector (1) audibly engages.
► If the connector (1) cannot be pushed easily into the spray
gun (2): Grease the gasket on the connector (1) with
grease for fittings.
RE 120
► Push connector (1) into spray gun (2).
The connector (1) audibly engages.
► If the connector (1) cannot be pushed easily into the spray
gun (2): Grease the gasket on the connector (1) with
grease for fittings.
