Knowledge of the Truck 3
Instrumentation and Controls
N
?
OM1766
4
3
2
1
12345.6
5

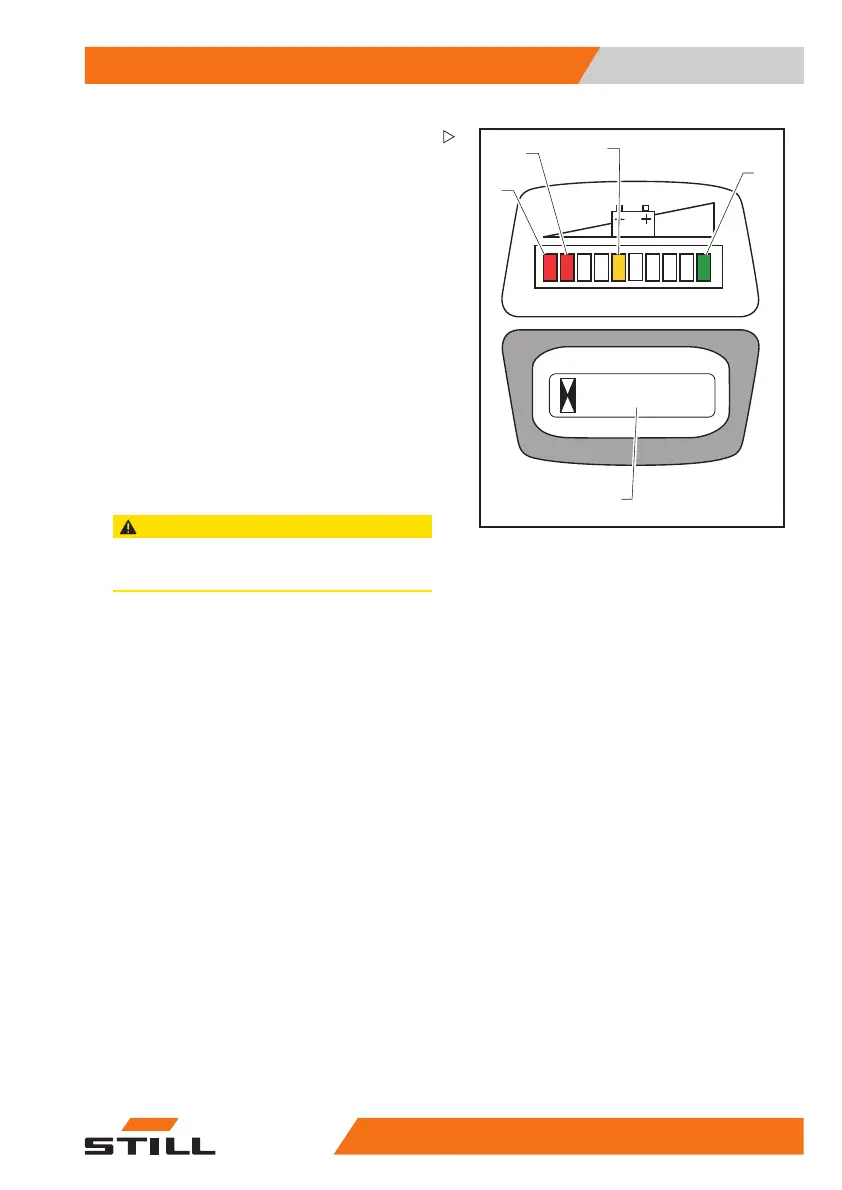

Battery status indicator and hour
meter
Battery charging status indicator
• Indicates the battery charg
elevel;itis
subdivided into ten secto
rs with respective
coloured LEDs.
• When the battery is 100% charged, LED 1
remains lit up.
• As the battery discharges, the LEDs light
up one at a time from right to left, starting
from LED 1, which indicates the completely
charged battery status.
• At 50% charged, LED 2 ligh
ts up
• When the battery is 20% charged, LEDs 3
and 4 flash alternately. Liftingisblockedat
this discharge threshold.
CAUTION
Charge the battery to at least 30% charged; below
this level the truck will not lift.
Hour meter (5)
• Indicates the actual forklift operation time,
expressed in hours.
• When the hour meter is working, the
hourglass flashes; five numbers plus one
decimal digit are displayed. The hours are
counted progressively and start from zero.
45
588043482 EN - 04/2016 29
