Still ECU-16 - Fuse Replacement

Servicing 5
Maintenance as required
OM1779
2
1
3
4

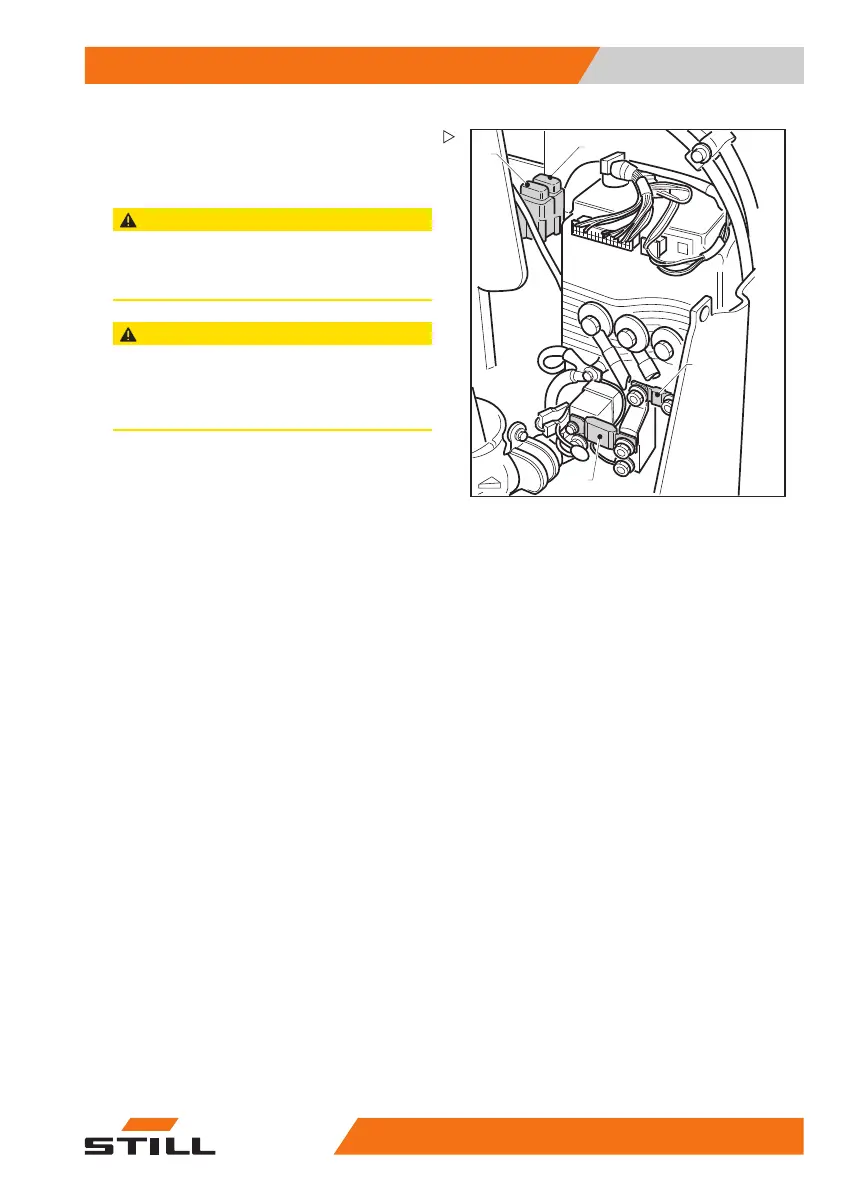

Fuse replacement
• Turn off the truck and perform the prelimi-
nary maintenance operations.
CAUTION
Before carrying out any operations on the electrical
system, turn off the truck power supply by discon-
necting the battery connector.
CAUTION
Before replacing the fuse, eliminate the cause that
led to its blowing. The blown fuse must only be
replaced with a fuse of the same amperage. Do not
tamper with the truck’s electrical system.
• Access the fuses as indicated in the "Inter-
nal Accessibility" section.
Service fuses (1) and (2)
• Remove the cover and replace the blown
fuse, then replace the cover.
Power fuses (3) and (4)
• Loosen the screws, replace the fuses and
retighten the screws.
Fuse values
• (1) Fuse = 5A
• (2) Fuse = 5A
• (3) Lifting motor protection fuse = 80A
• (4) Traction motor protection fuse = 100A
45
588043482 EN - 04/2016 77
