Stonex S580 GNSS Receiver – User Manual 15
4. External radio setup
4.1 Rover mode

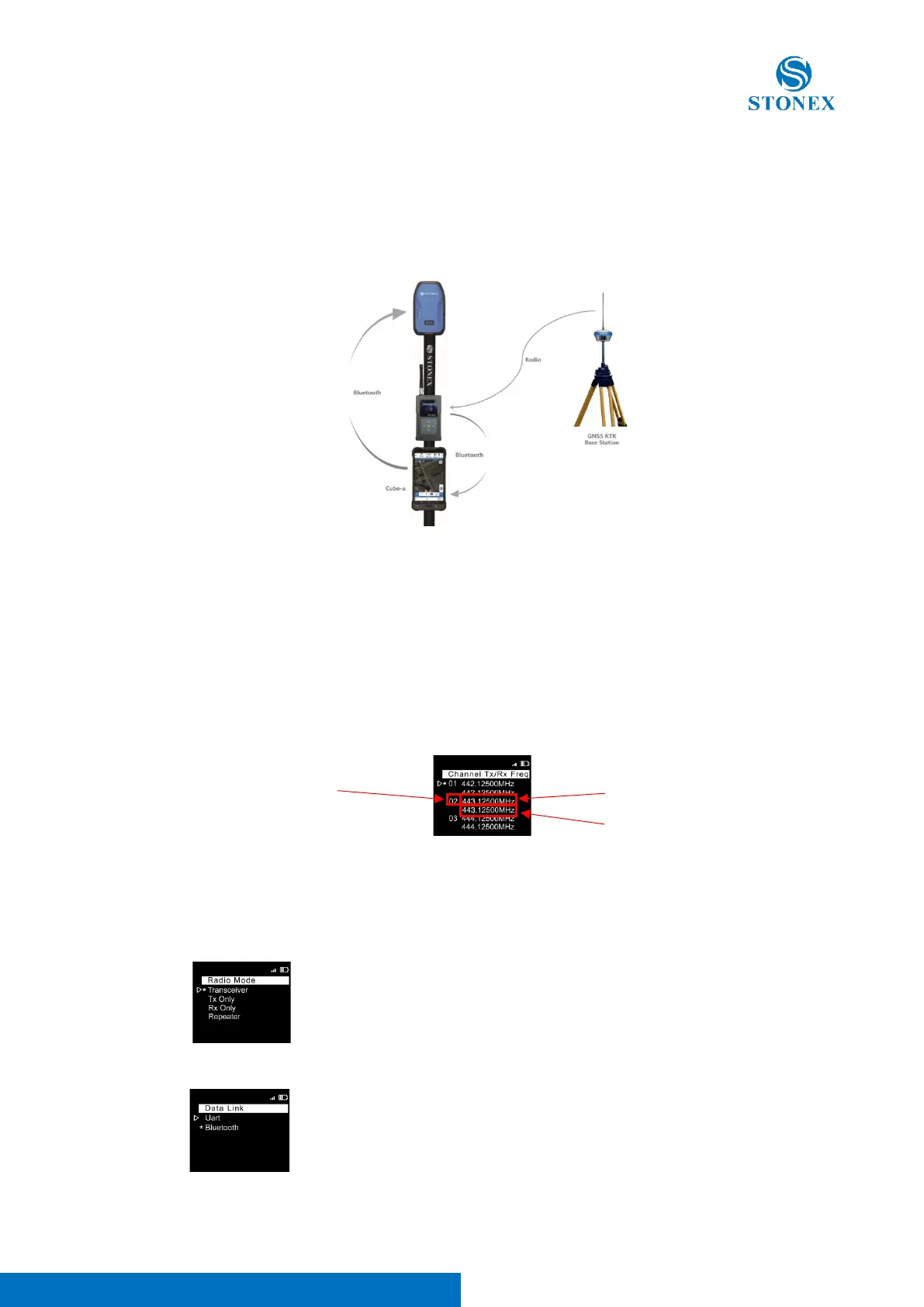

General scheme
The SR02 radio receive the corrections from the base’ radio and transmit them to a controller equipped with Cube-a via
Bluetooth, the controller at this point will forward the correction to the S580 using the Bluetooth connection.
Radio configuration
1. Set the same protocol and frequency used by the base, pressing the radio buttons. Right and left arrows let you
change page, up and down arrow let you select different options, press the power button to confirm. The left
arrow will also bring you back to the higher pages in case you’ve entered subpages.
a. Select the frequency: Channel Tx/Rx Freq page, the usual frequencies utilized by Stonex devices are on
Channels starting from number 19, the star show the channel in use.
b. Select the radio protocol: Data Protocol page (es. TRIMTALK 450S)
c. Select the radio link rate: Radio Link Rate page (es. 9600-25KHz)
2. Radio Mode page, select Transceiver
3. Data Link page, select Bluetooth
