Stonex S900 GNSS Receiver – User Manual 2
Introduction
This document is user guide for S900, S900A, and S900T GNSS receiver,
which are diverse in the internal configuration and appearance color. It is
intended to introduce how to use the receivers correctly.
1.1 Receiver appearance
The S900 series receiver is cylindrical with a diameter of 156mm, a height of
76mm and a weight of 1.2kg. The front side of the receiver is control panel,
which consists of a power button and four indicators. The bottom are
interfaces of UHF antenna and cables. PUSH buttons on both sides of the
receiver are used to open the bottom battery cover.

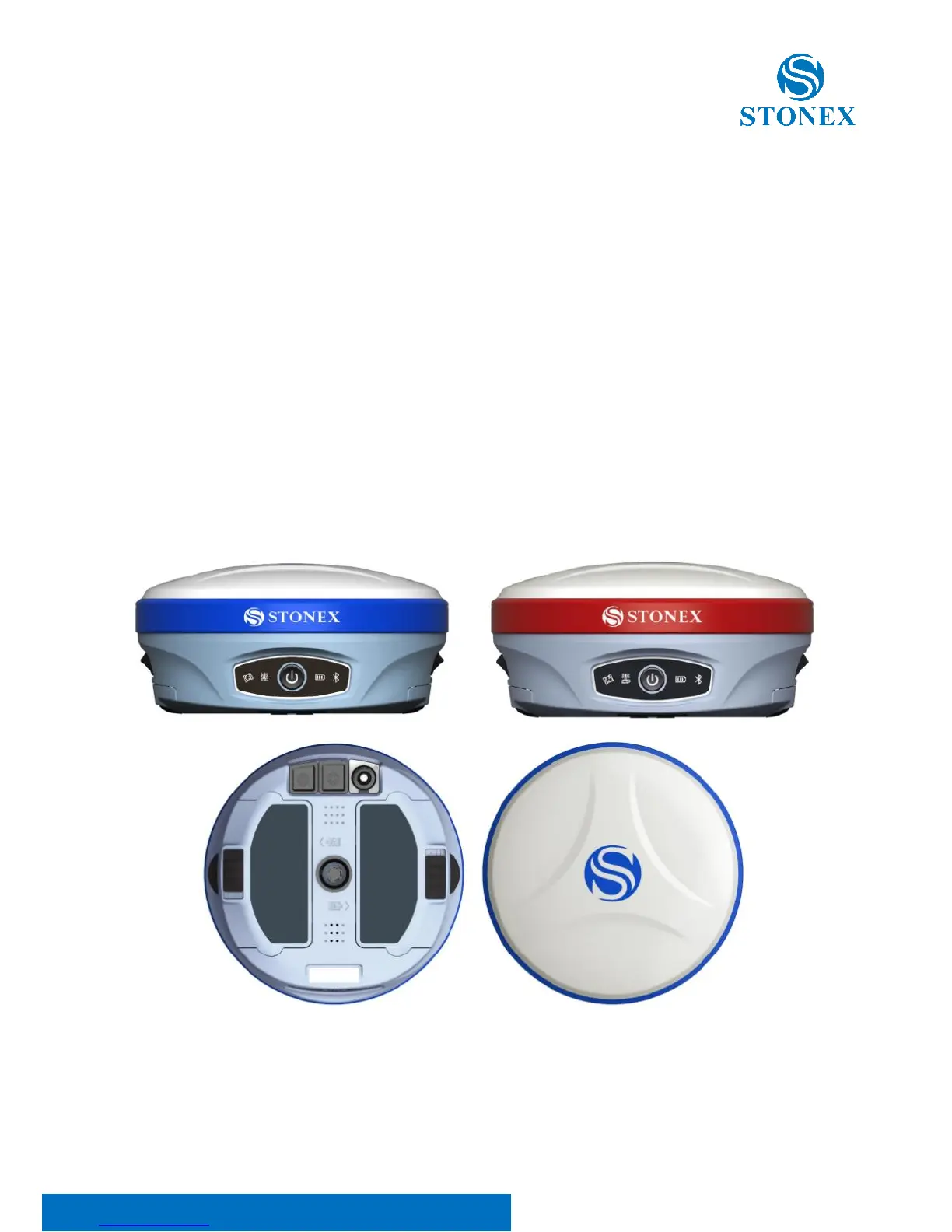

Figure 1.1 S900 series receiver
