RJ45 Ethernet connectors
Connectors
The Ethernet (Gigabit) ports of the Stormshield Network SN range
are configured in auto-sense mode, meaning that they adapt to
the configuration of the Ethernet port on the appliance to which
they are connected. These ports are therefore compatible with
straight or crossover RJ45 Ethernet cables.
On SN910, SN2000, SN3000 and SN6000 models, Ethernet
RJ45 connectors can be added by inserting extension modules.
WARNING
Keep data cables some distance away from any
source of electromagnetic interference such as mains
cables, radio transmitters, fluorescent tubes, etc.

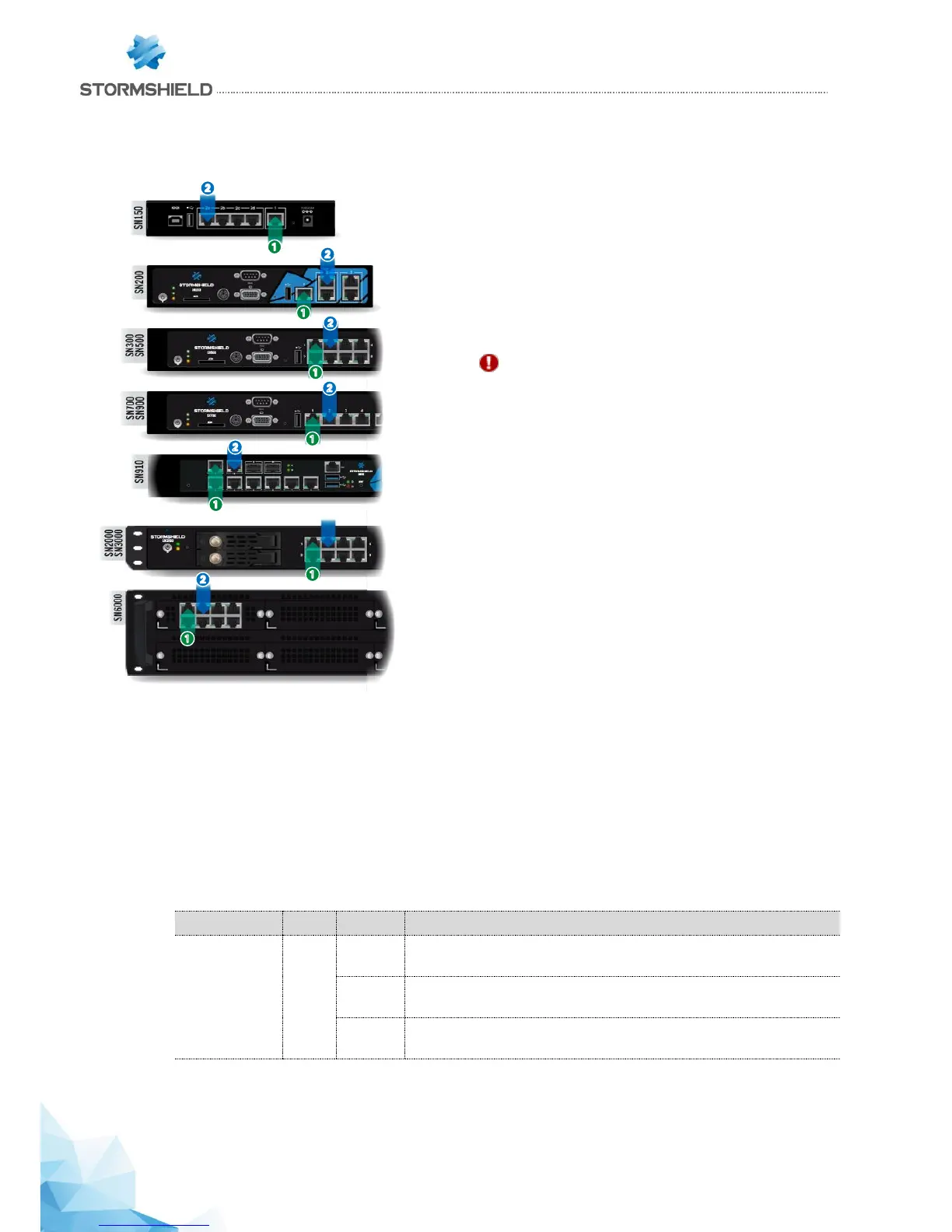

IN / OUT definition
The OUT 1 or "External" network port is reserved for the modem
or Internet router.
Access to this interface is blocked by default, then you will not
be able to access the configuration interface from this port.
To access your Firewall from a client workstation, you will need
to connect on the IN 2 or “Internal” port, or on another port
(except port 1).
For further information regarding the startup procedure of your Firewall, refer to the chapter INITIAL
CONNECTION TO THE PRODUCT.
LEDs of interfaces
LEDs associated with Ethernet interfaces provide the following information on the connection:
SN150 model
