p. 12
CHAPTER 5 OPERATION

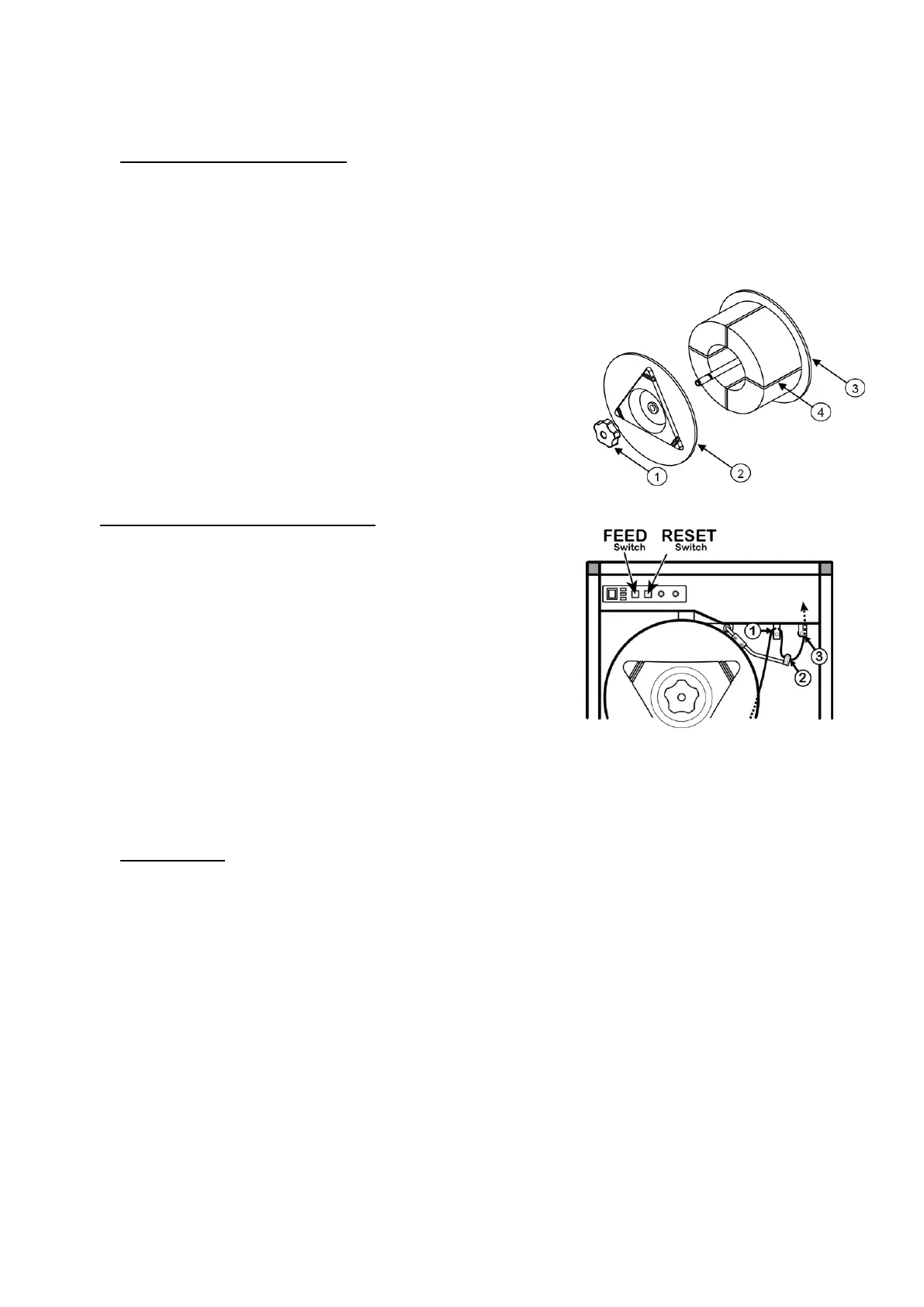

Loading the Strap Coil
Load the strap coil onto the Reel Unit without cutting retaining bands ④ tied around the coil.
1. Remove Reel Out Circular ② by rotating Reel Nut Handle ① clockwise.
2. Mount the strap coil onto the Reel In Circular ③ so that the tip of the strap points in the counterclockwise
direction. Position the coil between Reel In Circular ③ and Reel
Out Circular ② .
3. Secure it by turning Reel Nut Handle ① counterclockwise to
tighten.
4. Cut all of the retaining bands ④
Strap Threading Procedure
1 Insert the power plug into a suitable power outlet and turn on
the Power Select Switch.
2 Press the Reset Switch.
*
Machine will start and stop at the Home Position.
*
Confirm that the machine has finished cycling.
3 Thread the ti of strap through ① ② and insert to the square
hole ③.
4 Keep pushing the insert strap lightly and push strap Feed Switch
Operation
After turning on the Power Select Switch, the heater element will reach operating temperature in
approximately 45 seconds.
1. Place the package to be strapped on the Upper Tables and over the sealing point (Slide Table).
Insert the free end of the strap into the groove of the band-way.
This will start the strapping operation and the tensioning of the strap around the package.
2. After one strapping cycle (tensioning, cutting and sealing) is completed, a fixed length of strap will
feed forward automatically for the next strapping operation.
★Strap length is adjustable by the Feed Dial and Feed Switch.
3.
After strapping all of your packages, turn off the Power Select Switch.
