5

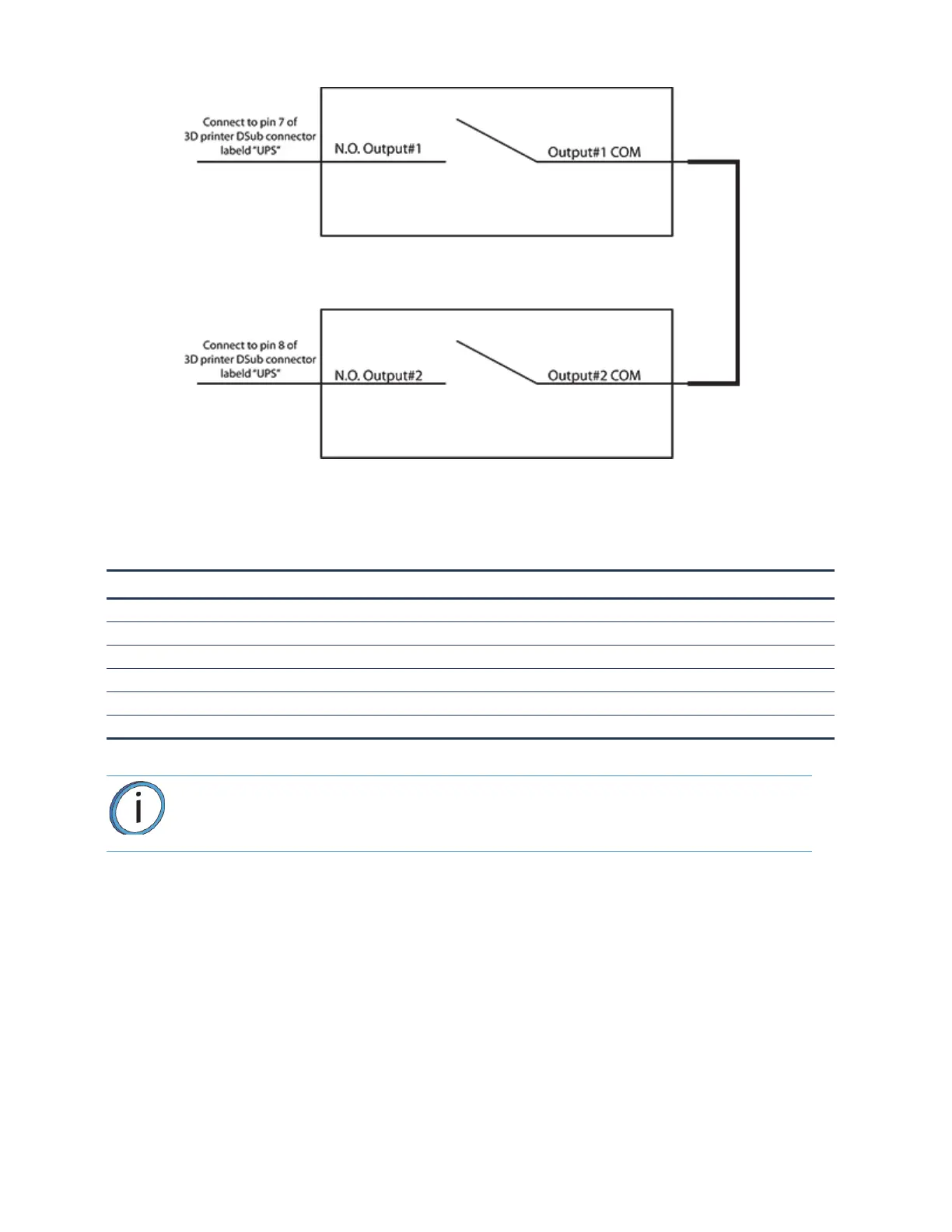

Figure 1: Wired-And configuration
PARTS LIST – CABLE, UPS TO 3D PRINTER
Item Qty Nomenclature / Description Material Specification
1 1 Conn, Hsg, Plug, 9Pos AMP - 205204-9
2 2* Pin, Male, 24-20 AWG AMP - 1-66506-0
3 1 Shell, Size 1, 9-Pin w/Grommets AMP - 748677-1
4 2 Jackscrew Pair 4-40, Knurled AMP - 747784-3
5 XX.x Cable, 2 Conductor, 22 AWG ALPHA - 1172C or Equivalent
6 3.0 inch Sleeving, Heatshrink 1/4 Inch 3M - FP301 or Equivalent
Note: * May need additional pins depending on the UPS configuration.
