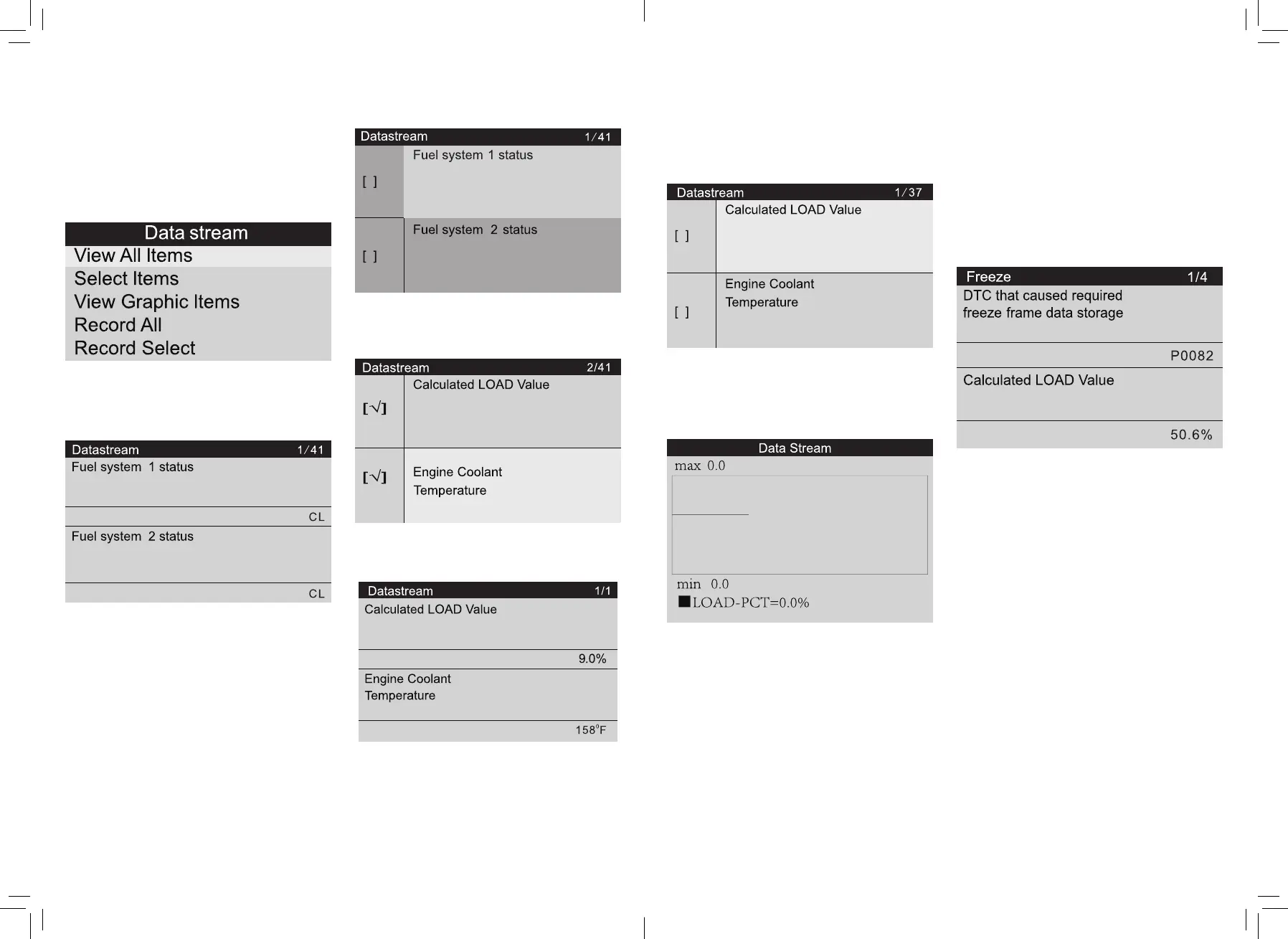

4.1.4 Data Stream
Press UP or DOWN button to select Data
Stream in Main Menu interface and then
press OK button to confirm, the screen will
display the interface as shown below:
Select [View All Items] and press OK button,
the screen will display the interface as shown
below:
You can use UP/DOWN button to view
other data streams. Press ESC to return to
Diagnostic Menu.
Select [Select Items] in Data stream menu
and press OK ,the screen will display the
interface as shown on the next page.
You can use UP/DOWN button to select data
stream items, the screen will display the
interface as shown.
After selected items and press ESC, the
screen will display the interface as shown.
Press ESC to return to Diagnostic Menu.
Select [View Graphic Items] in Data stream
menu and press ESC, the screen will display
the interface as shown.
You can use UP/DOWN button to select single
data stream items to view of live data with a
graph, and press ESC button, the screen will
display the interface as shown.
Press ESC to return to Diagnostic Menu.
You can view all data stream items or select
a certain item of live data with a graph.
4.1.5 Freeze Frame
When and emission-related fault occurs,
certain vehicle conditions are recorded by
the on-board computer. This information is
referred to as freeze frame data. Freeze Data
is a snapshot of the operating conditions at
time of an emission-related fault.
Note: if DTCs were erased, Freeze Data may
not be stored in vehicle memory depending
on vehicle.
Select [Freeze Frame] in main menu
interface, the screen will display the interface
as shown.
You can use UP/DOWN button to view
the data. Press ESC to return to
Diagnostic Menu.
4.1.6 O2 Sensor Test
The results of O2 sensor test are not live
values but instead the results of the ECU
’s last O2 sensor test. For live O2 sensor
readings, refer to any of the live sensor
screens such as Graph Screen.
Not all test values are applicable to all
vehicles. Therefore,the list generated will vary
depending on vehicle. In addition, not all
vehicles support the Oxygen Sensors screen.
For results of latest mandated on-board
oxygen sensor monitoring test.
