Stricker CITY 7 - First Adaptation to the Wheelchair

Manual English V16/04 page 11
Safety tip: The angle connectors must be pushed completely into the cross
tube. Do not pull them out to adjust the width!

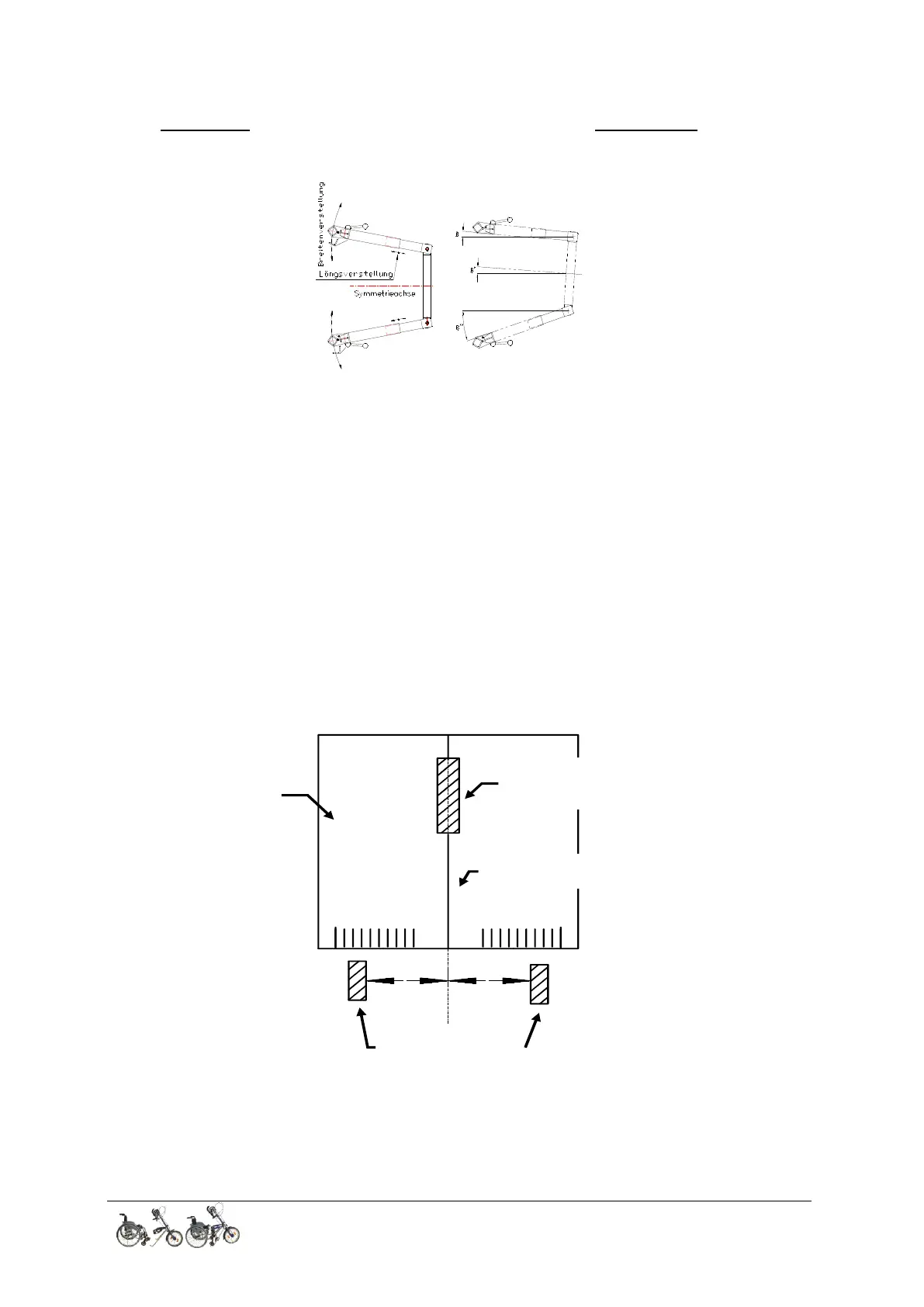

Abb. 9
correct wrong
7.3 First adaptation to the wheelchair
Clamp the Hand-Bike on a flat surface with opened clamps on to the wheelchair. The
bolts S1L and S1R are only slightly fixed, so that the drive wheel can be moved into all
directions. Make sure the wheel is straight.
The drive wheel has to be exactly in the symmetry axis of the wheelchair. Deviations
of max. 1cm are acceptable. Use the centre of the footrests to check. Incorrect
adjustment of the wheel can lead to accidents through bad alignment and vibration.
Please check correct adjustment of the drive-wheel before every ride.
To make adjustments easier, you can make a stencil (as shown in picture 10) out of
cardboard. This insures that the drive wheel is exactly in the middle of the symmetry
axis.
Drive-wheel
of the Hand-
Bike
Symmetry
axis
Front wheels of
the wheelchair
Adjustment
stencil
Drive the wheelchair towards the stencil and make sure both front-wheels have the
same distance from the symmetry axis. Put the drive wheel of the Hand-Bike exactly
on the symmetry line. Make sure, that the Hand-Bike is standing upright and is not
leaning to one side.
Please take note then of the following adjustment instructions.
