Manual English V16/04 page 16
If the adjustment space is not sufficient, the attachment at the clamp can be changed to another
hole. Change the bolts S4L and S4R (see picture 13) to one of the 3 holes.
Please check the ground clearance through lifting the front wheels. The ground clearance
should be between 2-3 cm. If the distance is not correct, adjust the spanner or the automatic
adjuster as described above.
Check the hand-crank position again with lifted front-wheels and adjust, if necessary.

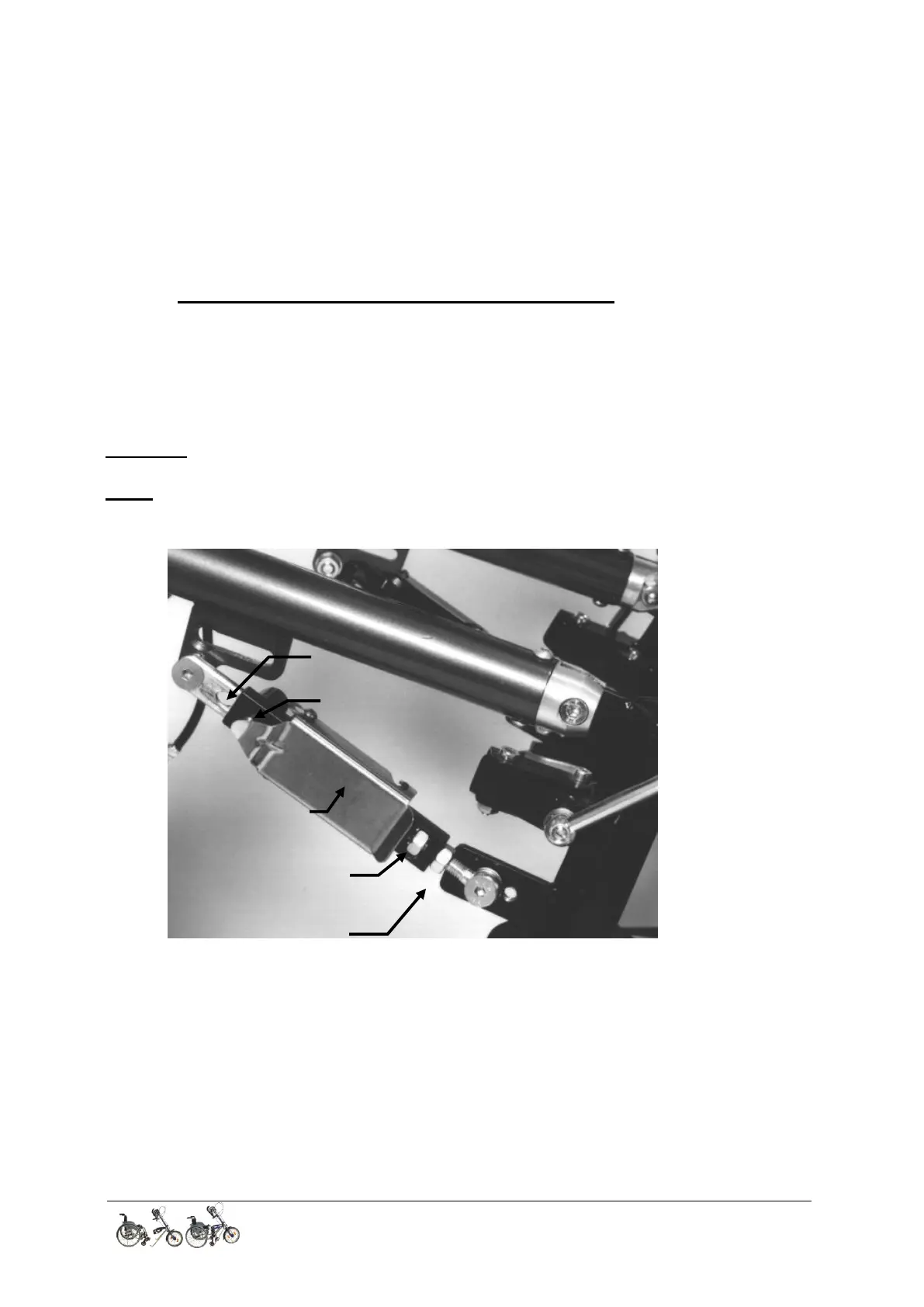

8 Function of the automatic click-in adjuster
The patented automatic adjusters allows for an ingeniously simple lifting of the front
wheels of the wheel chair and an automatic adjustment in driving position.
The click-off of the automatic adjuster is only works when the pin is relieved.
Therefore push forward the Hand-Bike on the handle.
Attention
Never try to push the bolts back with power, the flaps can be bent!
