Manual English V16/04 page 8

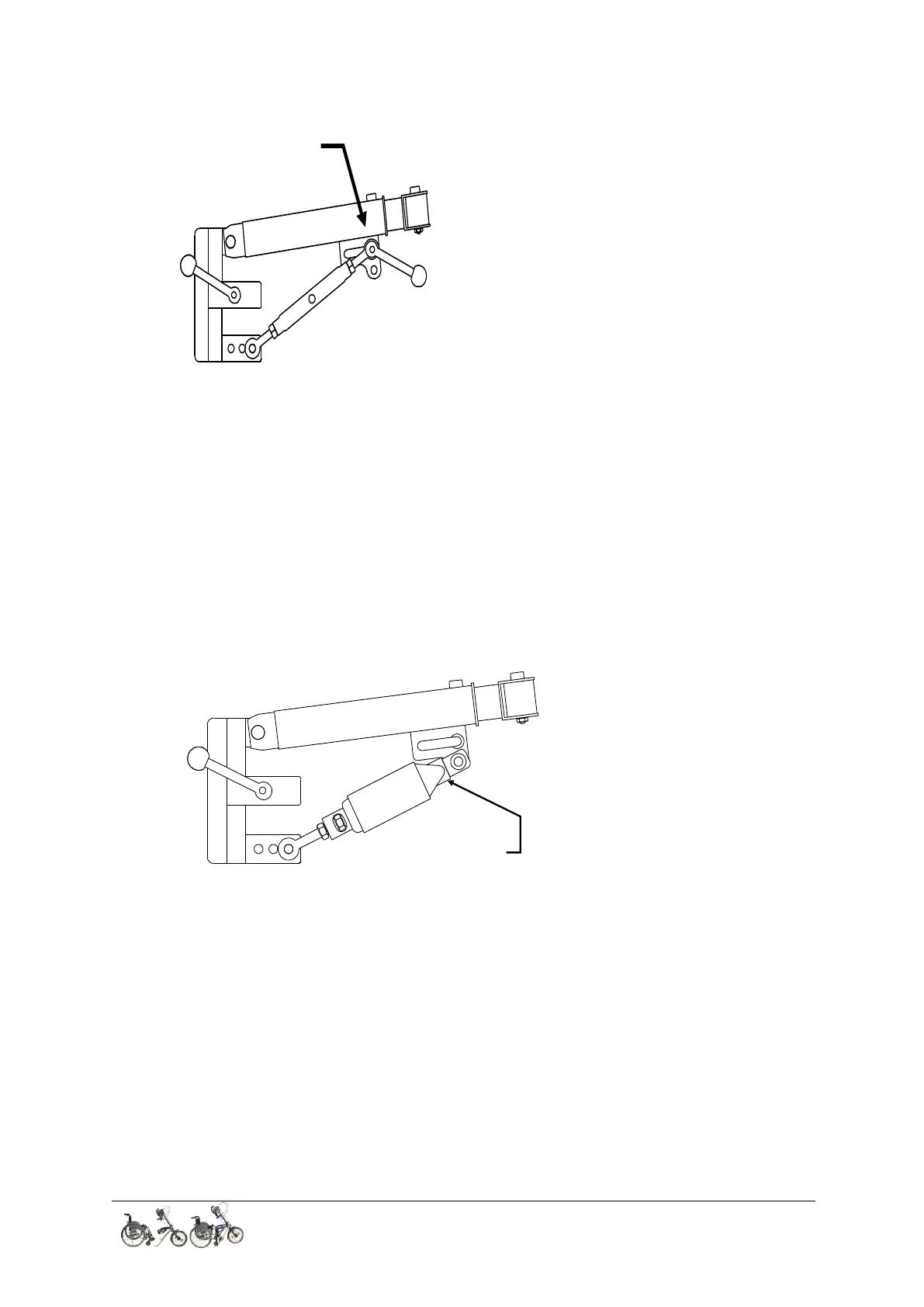

Push the lever to
the front of the slot
hole
picture.4
Models with Automatic click-in adjuster
The automatic click-in adjusters have to be unlocked, such that the slot holes are
visible. If this is not the case, unlock the automatic adjuster through opening the
flap and turning the clamps.
Then close the flap; or else you may injure yourself while turning the clamp levers.
Put the Hand-Bike on the handle on the front of the wheelchair and fix the clamps
on both sides carefully.
Push the handles forwards, until the front wheels of the wheelchair lift and the
automatic adjuster snaps into place on both sides. The pin must be visible (see
picture 5).
The pin have to come out
on both sides!
picture 5
Attention!
During connecting the handbike to the wheelchair, make sure that the clamps are parallel to
the tubes of the wheelchair. Otherwise, the PCV-protection can be damaged.
Before you start riding, please make sure, that the PVC- protection on the clamps are
undamaged. PVC-protection parts are wear parts and taken out from warranty!
If there are damages on the wheelchair tube caused by damaged PVC-protection parts
(scratches) we are not liable.
