Strobel 310D-R - Page 37

258.10.16

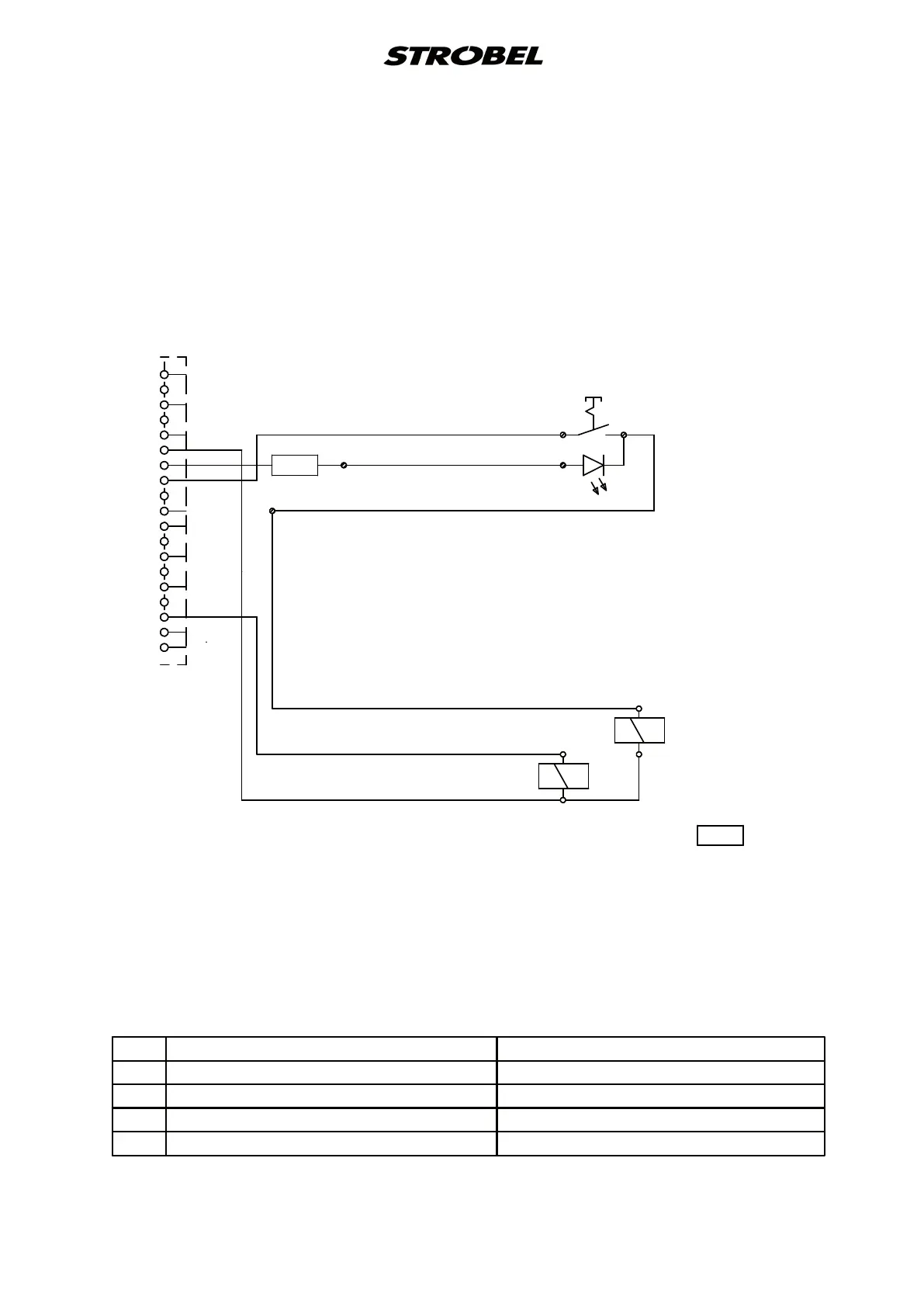

Elekrischer Schaltplan - Taucherabsenkung
Kl. 218D-TP Ausf. 3 und Kl. 325-40D-TP ab Ausf. 9
Electrical wiring diagram - Plunger lowering
Cl. 218D-TP version 3 and cl. 325-40D-TP as of version 9
35
37
18
17
19
1
ST2
+24V
+24V
0V
br bn
br bn br bn
br bn
ws wh
ws wh
ws wh
ws wh
gn gn
gn gn
gn gn
gn gn
R
S1
1V2 (TP)
1V1 (LÜ)
195.0027
1V1 Magnetventil "Lüftung" (LÜ) solenoid valve "lifting" (LÜ)
1V2 Magnetventil "Taucherabsenkung" (TP) solenoid valve "plunger lowering" (TP)
R Widerstand resistor
S1 Schalter mit LED switch with LED
ST2 Stecker Steuerkasten (Nähantrieb) plug control box (sewing drive)
vom Nähantrieb
from sewing drive
