• Place the box in the tank.
• Build a case around the machine.
• To keep the machine dry, plastic-wrap the machine and place a bag of desiccant (silica gel) in
the case.
• Place a lid on the case.
At the new location
At the new location, make sure that the facilities required are in place.
4 Installation

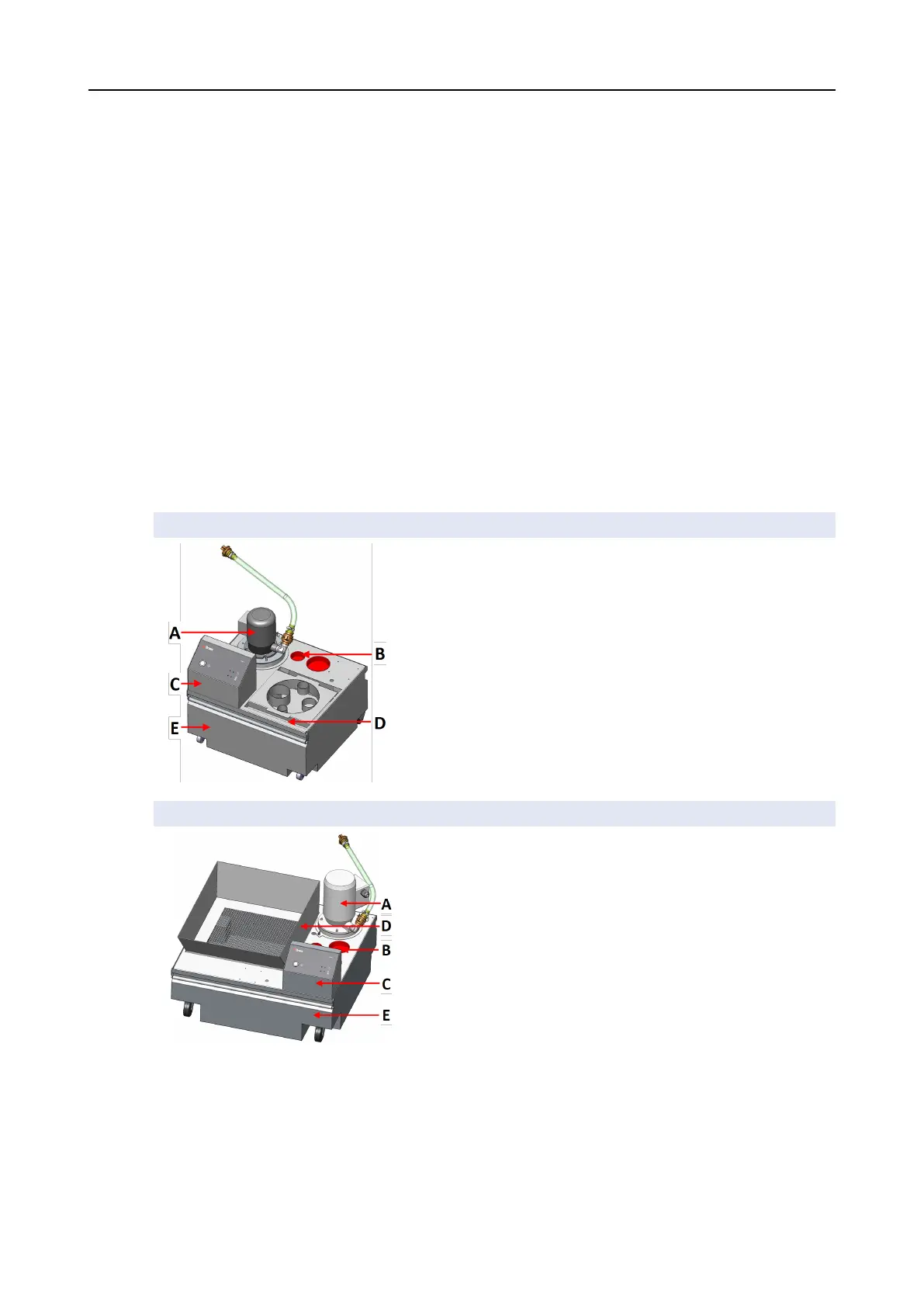

4.1 Overview - the cooling unit
50 l tank
Front view
A Recirculation pump
B Magnetic filter
C Control unit
D Filter tray
E Tank
100 l tank
Front view
A Recirculation pump
B Magnetic filter
C Control unit
D Filter tray
E Tank
