1. Lift the tank from the pallet.
2. Place the tank on the floor next to the machine you wish to connect it to.
3. Position the straps under the machine, so that they are on the inner side of the rollers.
4. A lifting bar is recommended to keep the two straps apart below the lifting point.

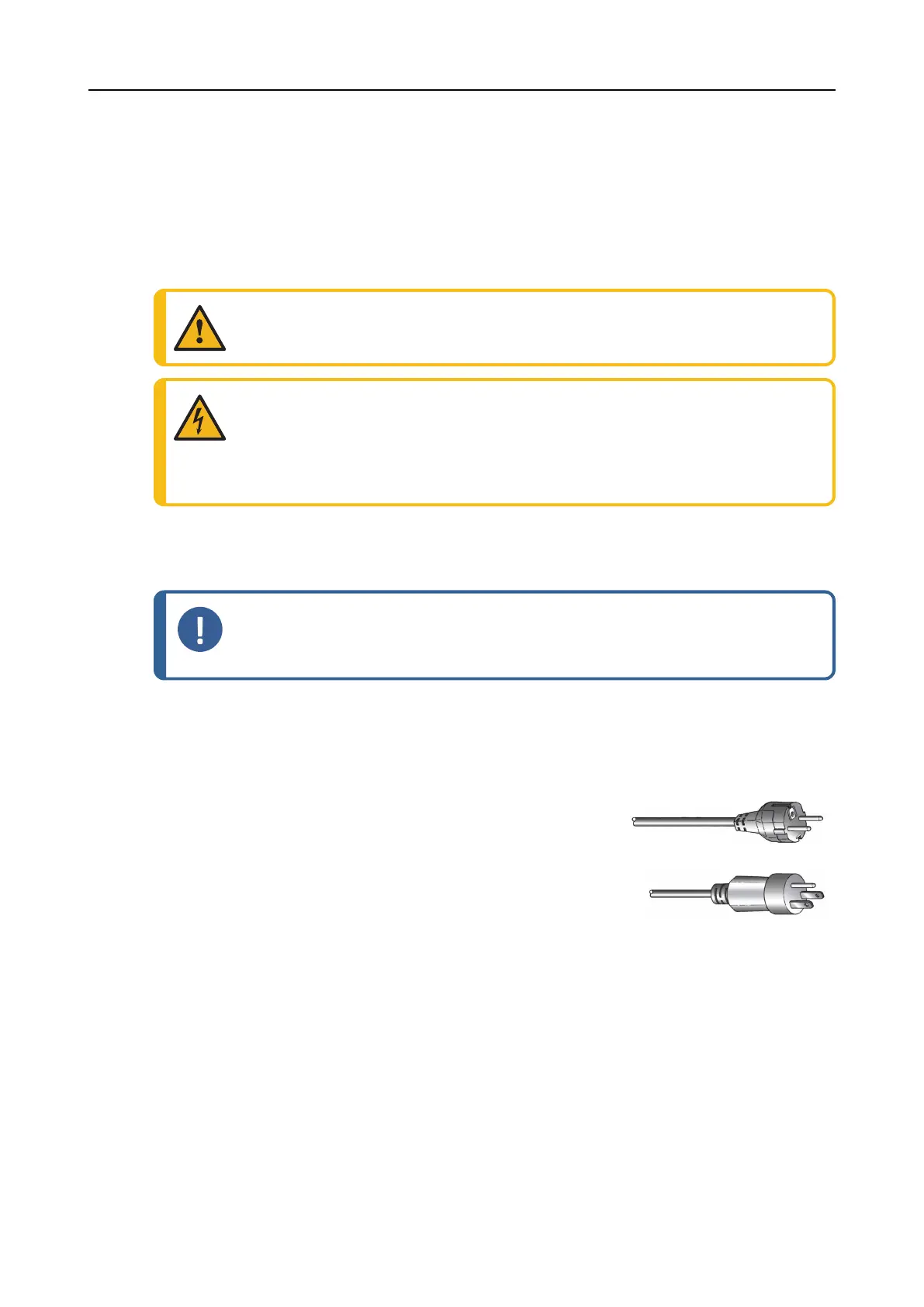

4.6 Power supply
WARNING
Switch off the machine, disconnect the electrical power cable before you dismantle
the machine or install additional components.
ELECTRICAL HAZARD
The machine must be earthed (grounded).
Switch off the electrical power supply before installing electrical equipment.
Make sure that the actual electrical power supply voltage corresponds to the voltage
stated on the type plate of the machine.
Incorrect voltage can damage the electrical circuit.
Power socket
The electrical power supply socket must be easy to access.
Note
The equipment is shipped with 2 types of electrical power cables. If the plug supplied
on these cables is not approved in your country, the plug must be replaced with an
approved plug.
4.6.1 Single-phase supply
Single-phase supply
The 2-pin plug (European Schuko) is for use on single-phase
electrical power connections.
The 3-pin plug (North American NEMA) is for use on single-
phase electrical power connections.
The leads must be connected as follows:
Yellow/Green Earth (ground)
Brown or Black Line (live)
Blue or White Neutral
