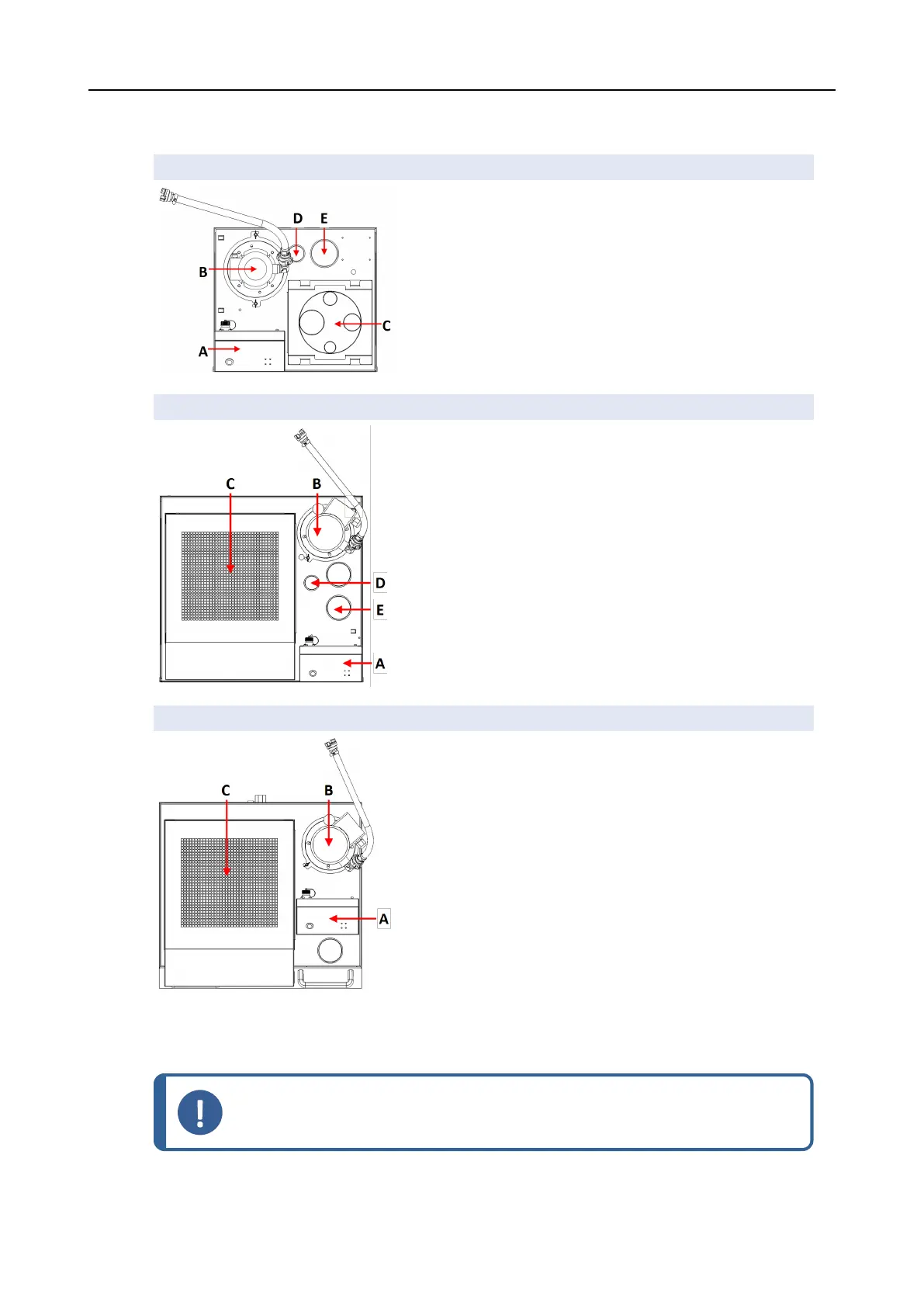

5.1 The tank
50 l tank
A Control unit
B Recirculation pump
C Filter tray
D Water level gauge
E Magnetic filter
100 l tank
A Control unit
B Recirculation pump
C Filter tray
D Water level gauge
E Magnetic filter
150 l tank
A Control unit
B Recirculation pump
C Filter tray
5.2 The control unit
Note
The control panel must be mounted facing the cooling unit's handle.
