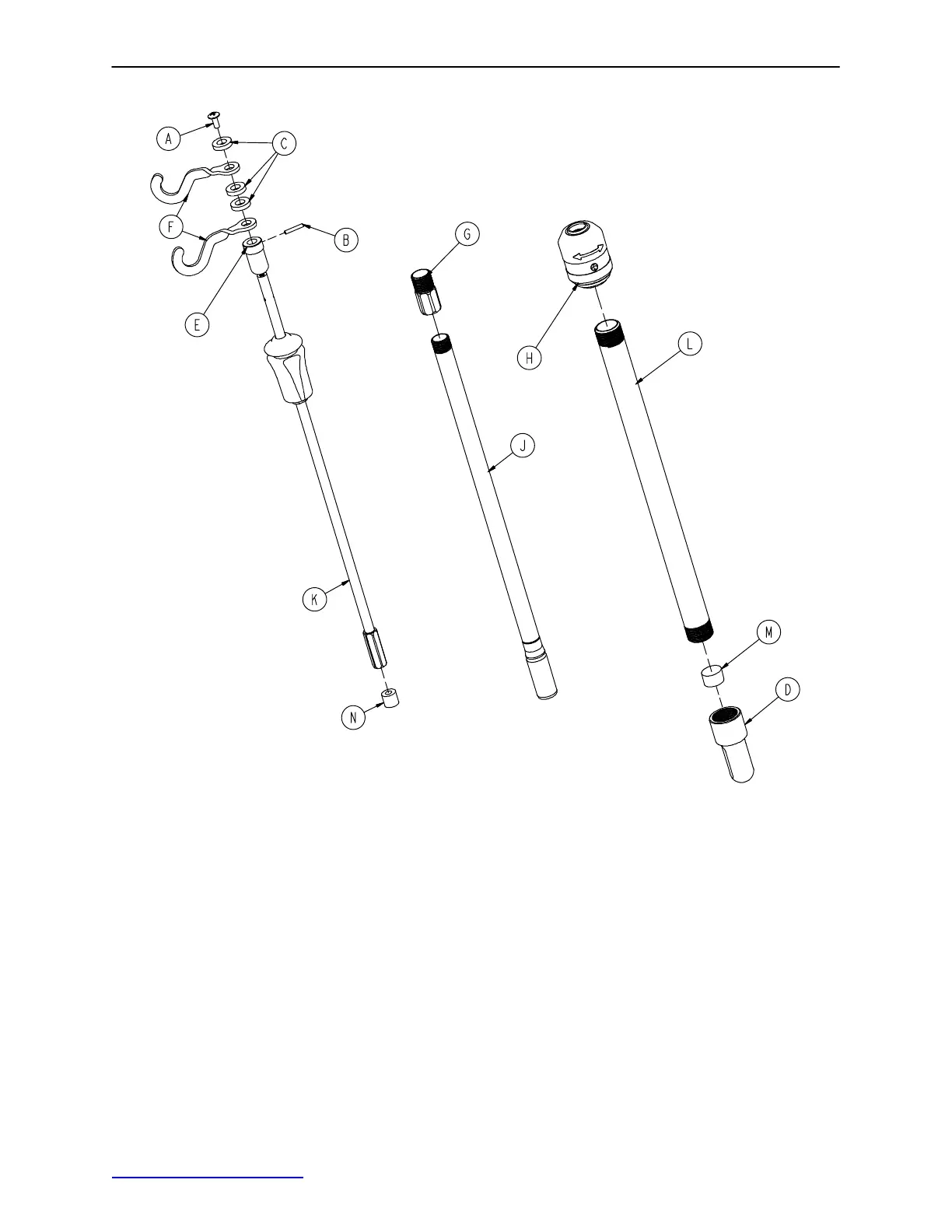

0785−035−200 26” 3−Stage IV Pole Assembly
149
Item Part No. Part Name Qty.
A 0007−004−000 Truss Hd. Machine Screw 1
B 0026−076−000 Slotted Spring Pin 1
C 0052−017−000 Spacer 3
D 0785−035−003 IV Pole Pivot 1
E 0785−035−026 Collar 1
F 1010−059−016 IV Hook 2
G 1211−110−016 Threaded Adaptor 1
H 0785−035−103 IV Pole Latch 1
J 0785−035−201 2nd Stage Assembly 1
K(page 151) 3rd Stage Assembly 1
L 0785−035−204 Base Tube 1
M 1001−259−013 Dampener 1
N 1001−359−014 Dampener 1
