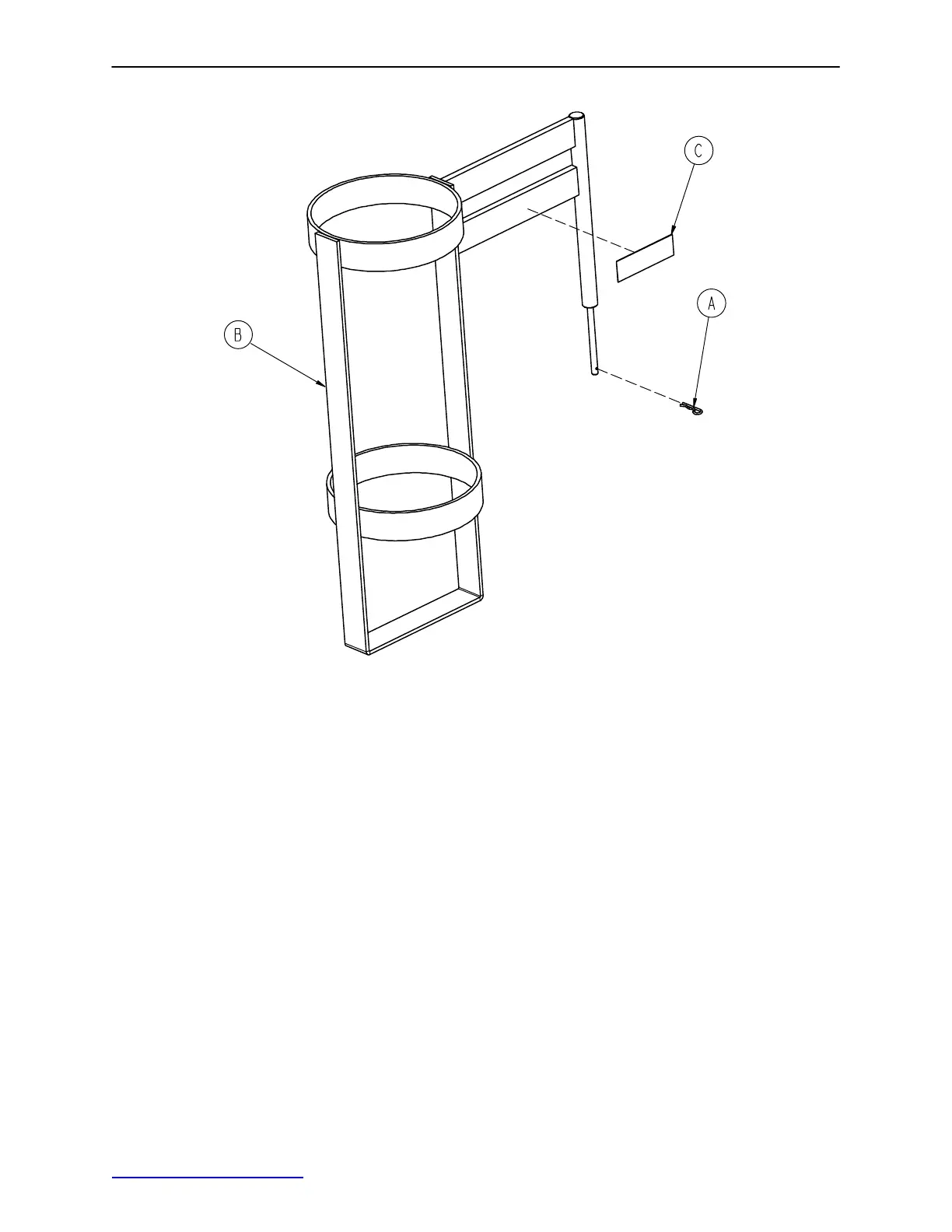

1020−130−000 Upright Oxygen Bottle Holder
Assembly
156
Item
Part No.
Part
Name
Qty
.
A
0027−030−000
Hair Pin Cotter
1
B
1020−030−1
1
1
Upright Bottle Holder
1
C
1020−030−1
17
Specification Label
1
Return to Table of Contents
