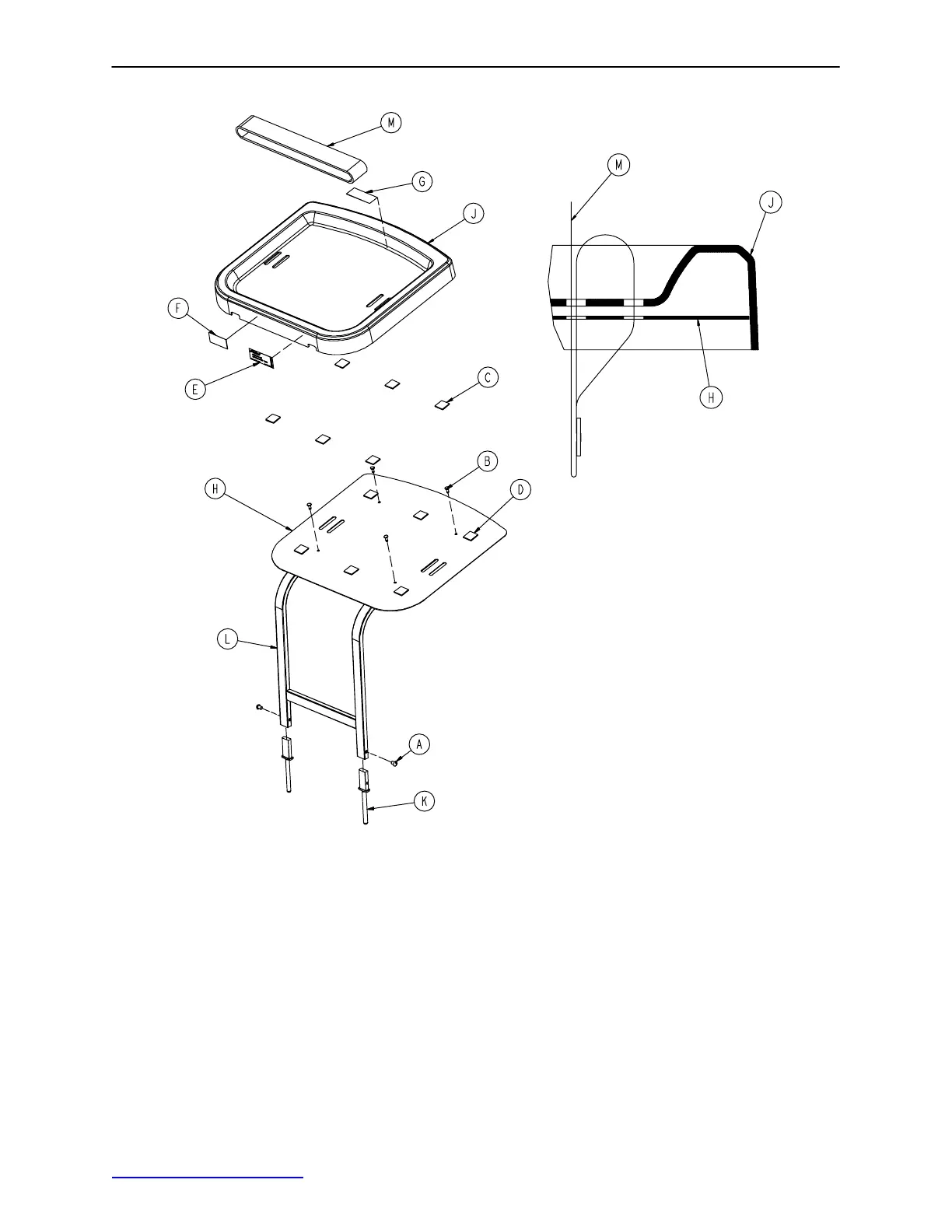

0785−045−200 Defibrillator Tray Assembly
157
Strap Securing Detail
Item Part No. Part Name Qty.
A 0002−044−000 Round Hd. Machine Screw 2
B 0025−055−000 Rivet 4
C 0029−008−000 Dual Lock 6
D 0029−010−000 Dual Lock 6
E 0785−045−201 Defib Tray Label 1
F 0785−045−402 Push/Pull Label 1
G 0785−045−403 Weight Capacity Label 1
H 0785−045−204 Tray Support 1
J 0785−045−207 Tray 1
K 0785−045−208 Bayonet 1
L 0785−045−210 Frame Weldment 1
M 1010−050−021 Long Strap 1
