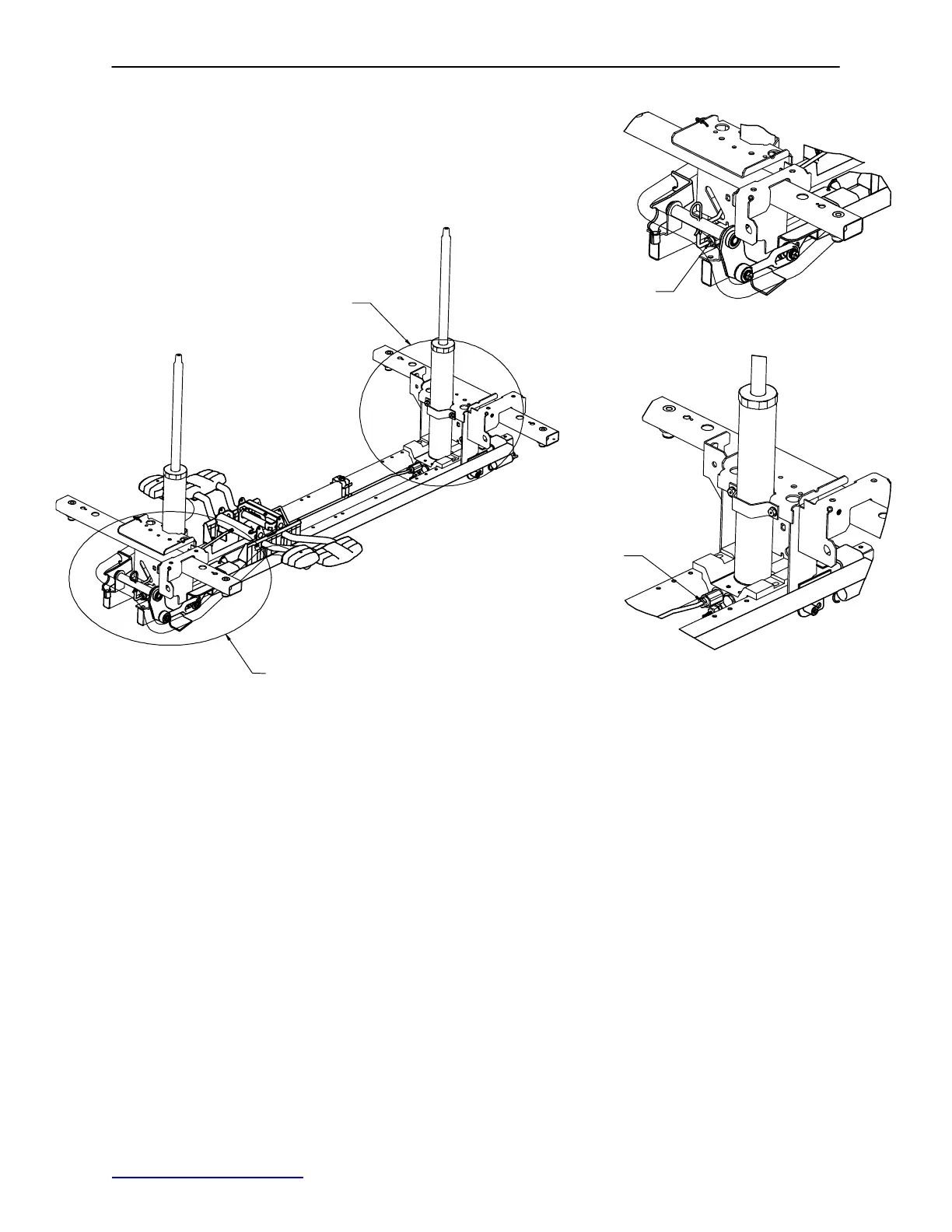

Base with Dual Side Hydraulics (Big Wheel Base)
39
See Detail C
See Detail B
Insert foot end release
rod into release valve
DETAIL C
Insert head end
release rod into
DETAIL B
release valve.
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
C 0023−288−000 Hex Washer Hd. Screw 7
D 0027−031−000 Hair Pin Cotter 1
E 0038−497−000 Extension Spring 3
F 0753−004−014 Head End Release Rod 1
G 0753−004−132 Release Pedal Swivel 2
H (page 40) Release Pedal Assembly 1
J 0753−005−037 Pump Connecting Rod 1
K 0753−005−044 Pump Pedal Bushing 2
L 0753−005−074 Pivot Pin 1
M 0753−005−075 Pump Pedal Link 1
N 0753−005−088 Wear Strip 2
P 0753−005−089 Pump Ram Plug 2
R(page 41) Pump Pedal Assembly 1
T 1040−004−015 Foot End Release Rod 1
W 1040−010−215 Release Rod Bracket 1
