Stryker 1027 User Manual

108

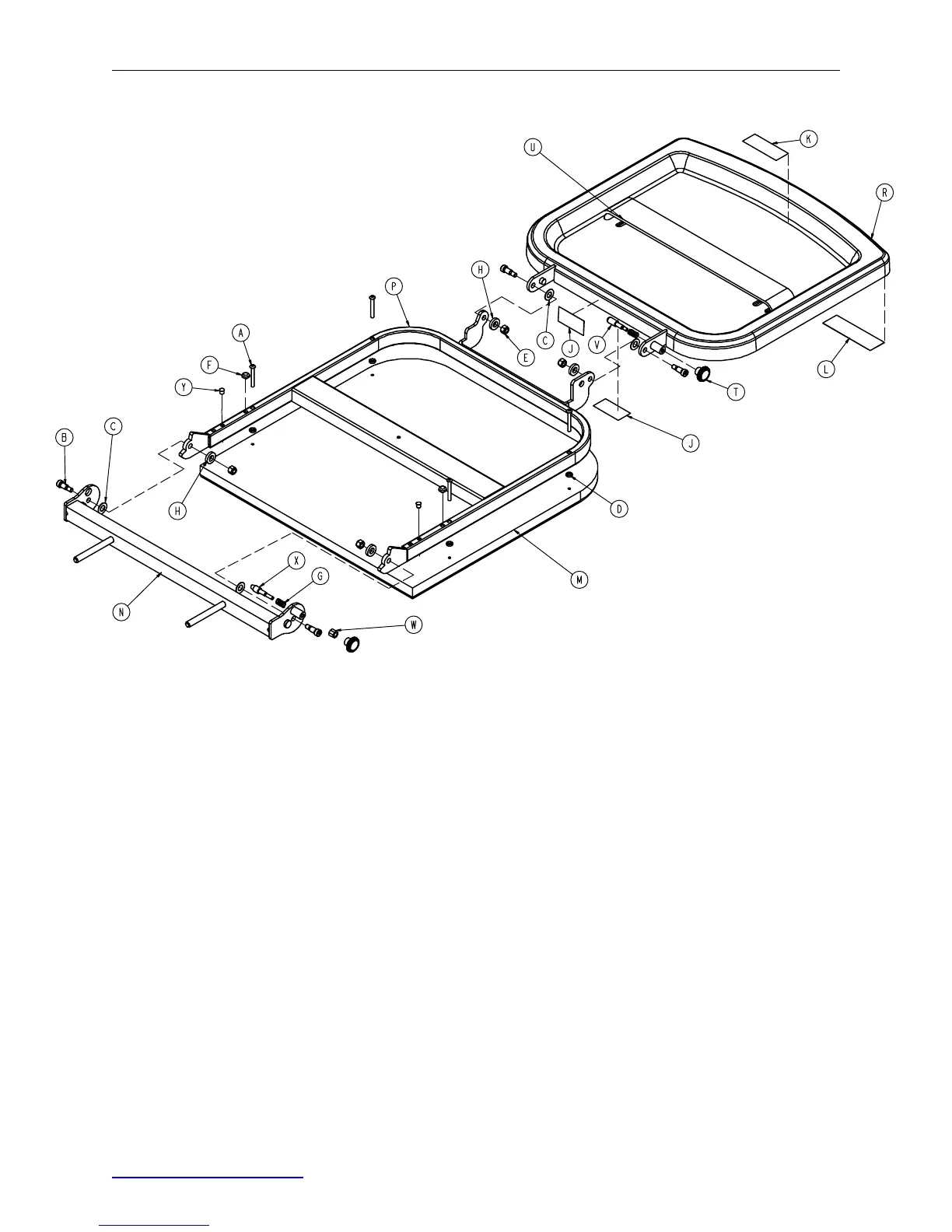

0785−045−400 Defib Tray/Foot Extender/Foot Board
Item Part No. Part Name Qty.
A 0004−215−000 But Hd. Cap Screw 4
B 0008−049−000 Soc. Hd. Cap Screw 4
C 0014−020−000 Washer 4
D 0014−120−000 Washer 4
E 0016−028−000 Hex Nut 4
F 0037−052−000 Rubber Bumper 2
G 0038−133−000 Compression Spring 2
H 0052−017−000 Spacer 4
J 0785−045−402 Push/Pull Label 2
K 0785−045−403 Weight Capacity Label 1
L 0785−045−401 Foot Extender/Defib Tray Label 1
M 0785−045−405 Cushion 1
N 0785−045−410 Base Mounting Weldment 1
P 0785−045−420 Frame Pivot Weldment 1
R 0785−045−430 Tray 1
T 0785−045−450 Knob 2
U 1010−050−021 Long Strap 1
V 1010−050−242 Lock Pin 1
W 1010−050−250 Lock Adjuster 1
X 1010−050−248 Lower Pin Lock 1
Y 0721−031−065 Hole Plug 2
