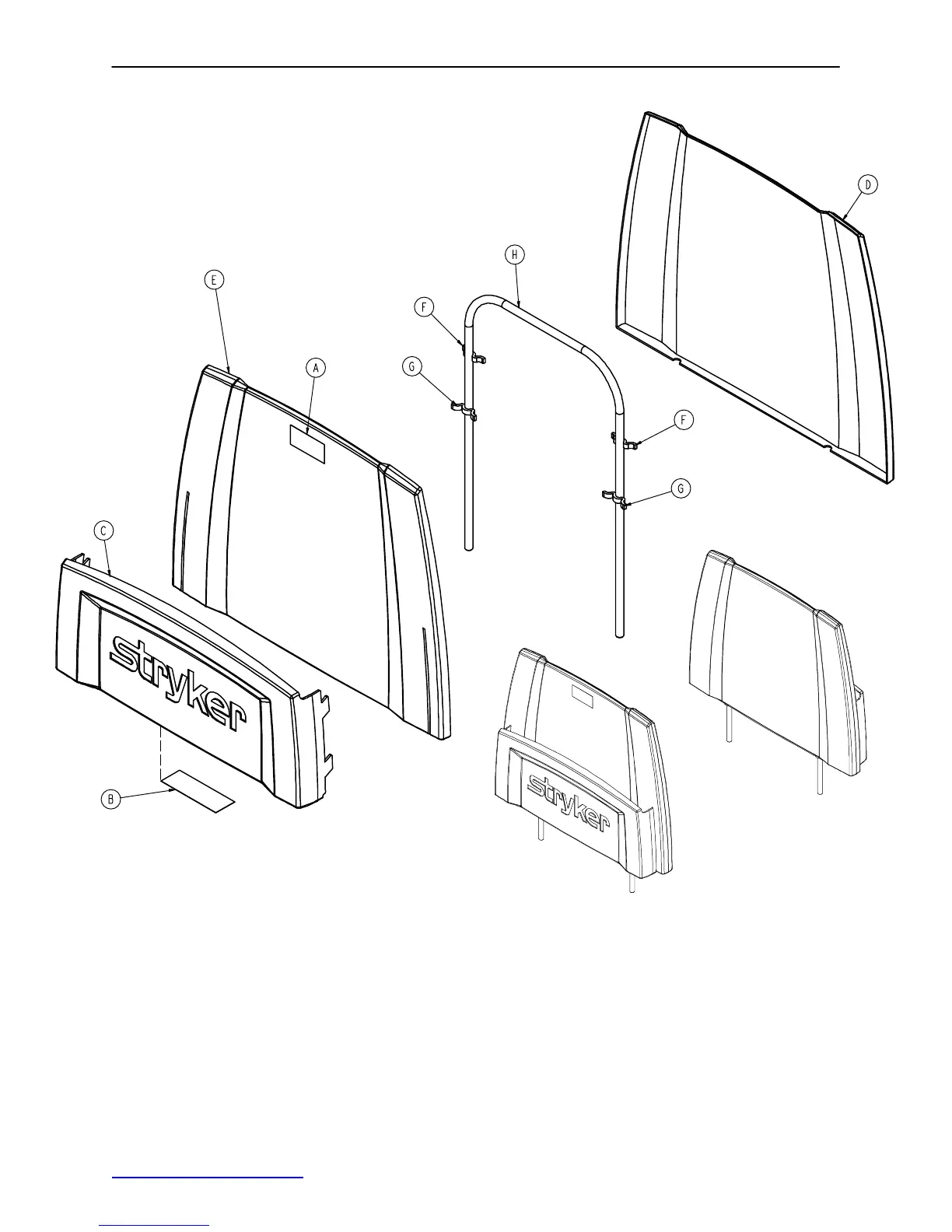

0785−045−500 Foot Board/Chartholder Assembly
116
FRONT
BACK
Item Part No. Part Name Qty.
A 0785−045−402 Push/Pull Label 1
B 0785−045−501 Foot Board Label 1
C 0785−045−511 Chartholder 1
D 0785−045−512 Foot Board Back 1
E 0785−045−513 Foot Board Front 1
F 0785−045−514 Small Standoff 2
G 0785−045−515 Large Standoff 2
H 0946−029−010 Support Weldment 1
