Stryker 1027 - Fowler X−Ray Cassette Assembly

96

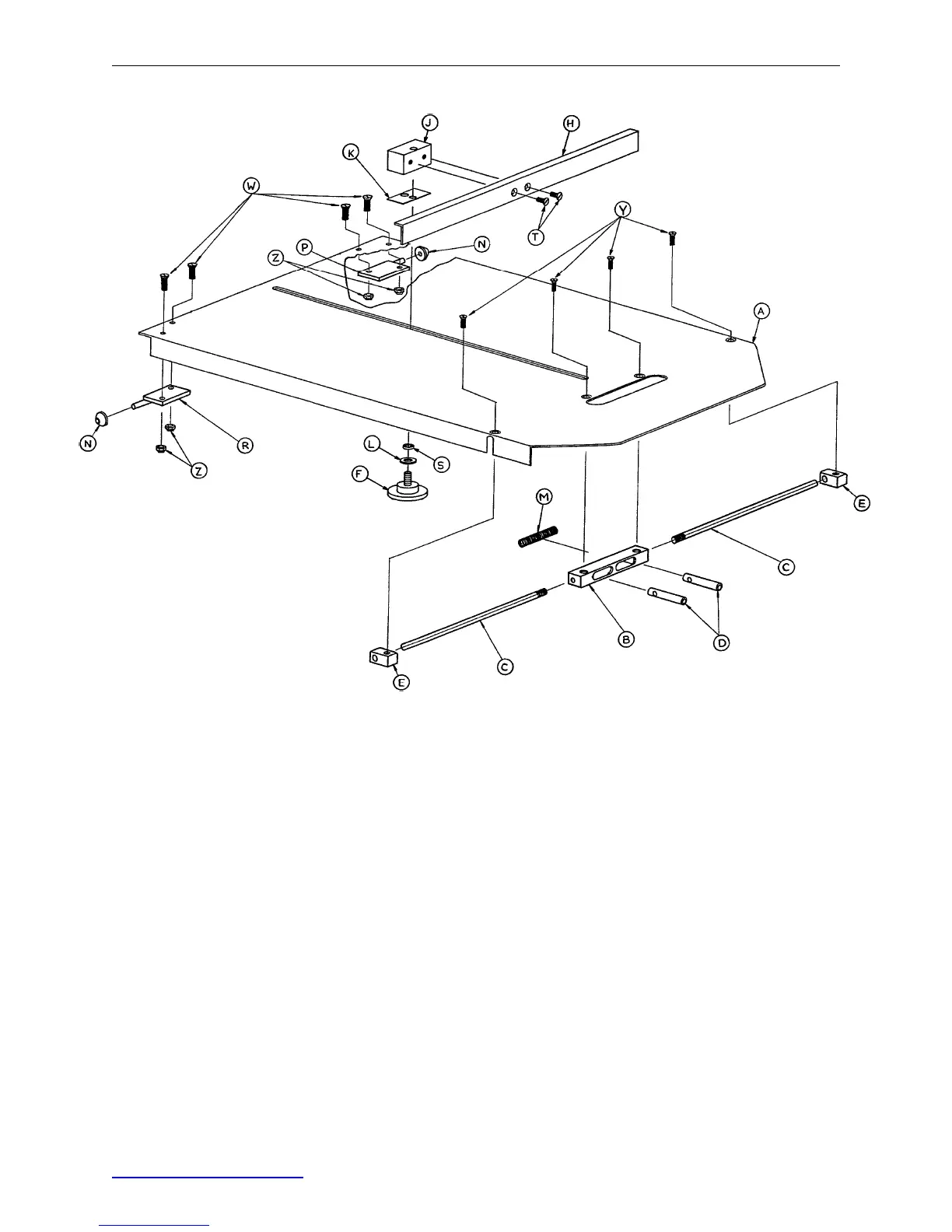

1020−23−000 Fowler X−Ray Cassette Assembly
Item Part No. Part Name Qty.
A 1020−023−011 Tray 1
B 1020−023−016 Post Housing 1
C 1020−023−025 Actuating Rod 2
D 0926−023−064 Post 2
E 1010−023−037 Rod Guide 2
F 1020−023−021 Knob 1
H 1010−023−028 Tray Angle 1
J 0926−023−070 Block Assembly 1
K 0926−023−069 Washer 1
L 0014−003−000 Washer 1
M 0038−122−000 Compression Spring 1
N 1020−023−026 Spacer 2
P 1020−023−019 Tray Hinge, Right 1
R 1020−023−020 Tray Hinge, Left 1
S 0926−023−071 Bushing 1
T 0001−020−000 Flat Hd. Mach. Screw 2
W 0004−149−000 Hex Soc. But. Hd. Cap Screw 4
Y 0001−022−000 Flat Hd. Screw 4
Z 0016−003−000 Nylock Nut 4
AA 1010−023−019 Tray Removal Label 1
AB 1020−023−027 Specification Label 1
