109

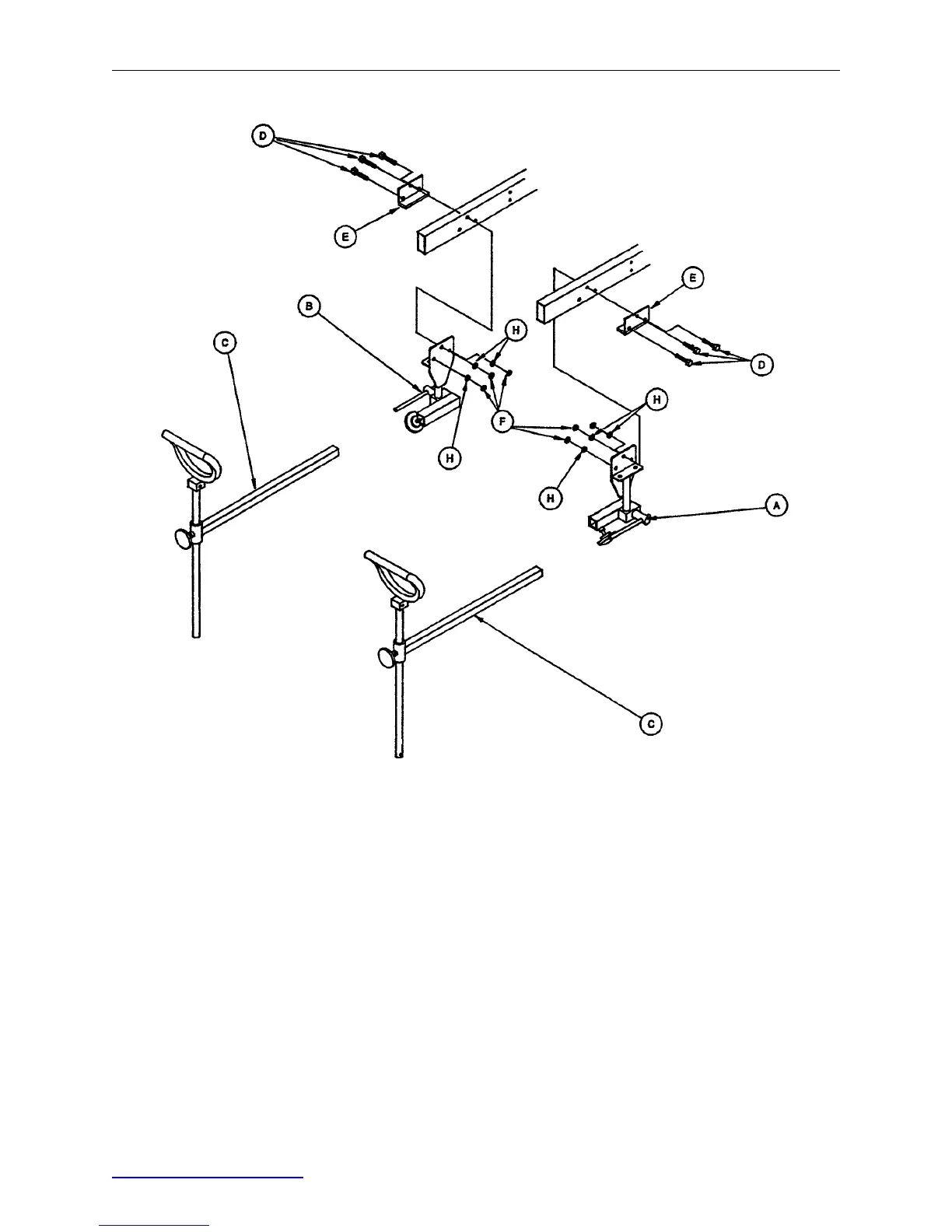

1020−55−000 Heel Stirrup and Support Assembly
Assembly part number 1020−055−010 (reference only)
Item Part No. Part Name Qty.
A(page 110) Stirrup Support Ass’y, Rt. 1
B(page 110) Stirrup Support Ass’y, Lt. 1
C(page 111) Stirrup Assembly 2
D 0003−078−000 Hex Hd. Cap Screw 6
E 1020−055−015 Backer Assembly 2
F 0016−028−000 Nylock Hex Nut 6
F 0011−158−000 Flat Washer 6
