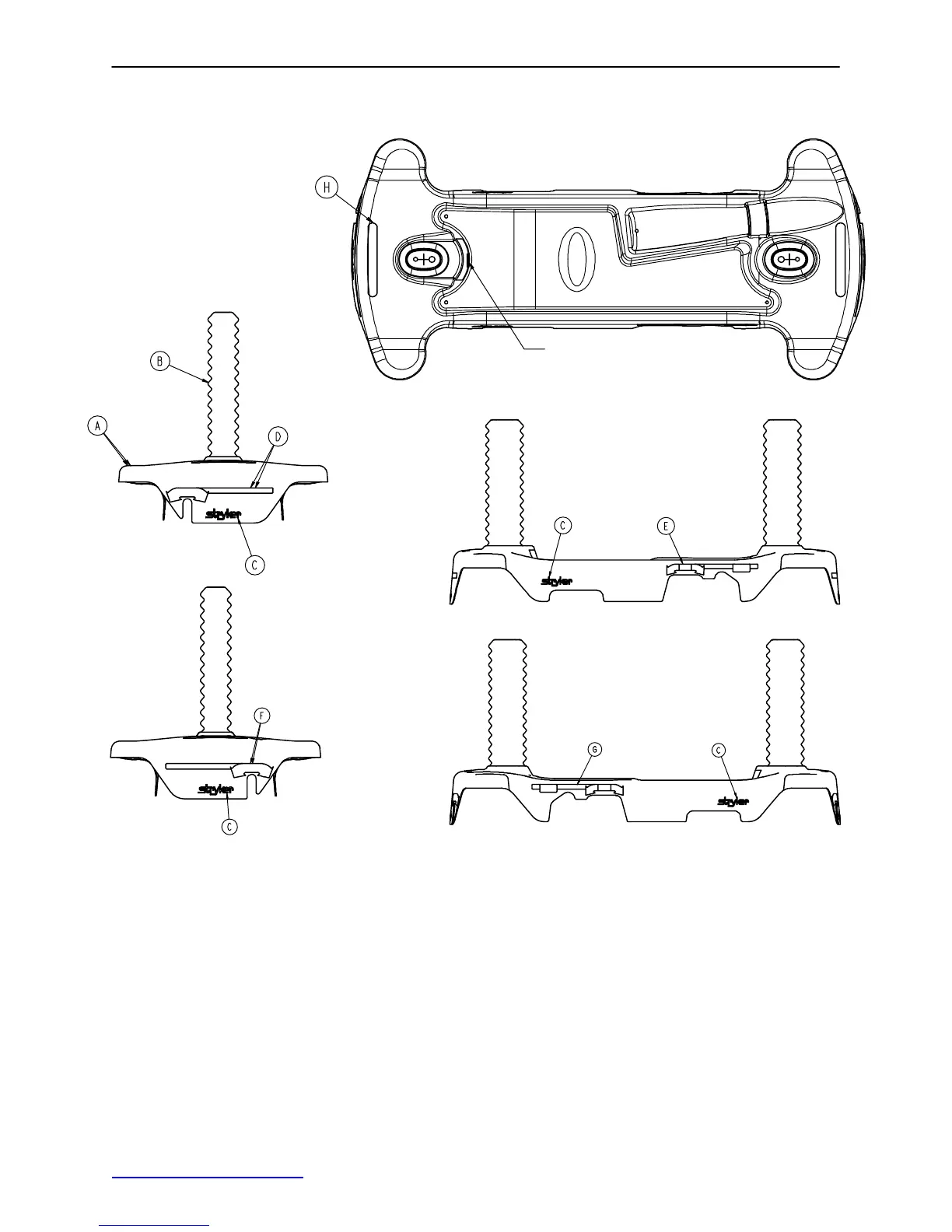

Base Labeling
Assembly
, Standard Brakes
65
FOOT
END
HEAD END
Department Label
see
page 67
Specification Label
Assembly part number 0853−010−062 (reference only)
(Serial Number Location)
Item
Part No.
Part Name
Qty
.
A
0853−001−040
Base Hood
1
B
1040−010−134
Bellows
2
C
0946−201−060
Stryker Logo Label
4
Return to Table of Contents
65
67
Table of Contents
Table of Contents
2
Introduction
5
Specifications
5
Warning / Caution / Note Definition
5
Summay of Safety Precautions
6
Preventative Maintenance
7
Checklist
7
Cover
7
Cleaning
8
Cover
8
Service Information
9
Caster Cover Installation and Removal
9
Caster Removal
9
Release Pedal Adjustment
10
Brake Rod Removal
10
Side Control Brake Rod Removal
11
Foot End Release Pedal Replacement
12
Foot End Release Pedal Rod Removal
12
Brake Ring Removal
13
Fifth Wheel Assembly Removal
13
Big Wheel Removal
14
Litter Top Removal
15
Big Wheel Carriage Removal
15
Big Wheel Cam Gas Spring Dampener Removal
16
Side Control Big Wheel Linkage Assembly Removal
16
Jack Descent Rate Adjustment
17
Removal of Excess Air from the Hydraulic System
17
Head End Hydraulic Jack Removal
18
Foot End Hydraulic Jack Removal
18
Pneumatic Fowler Adjustment
19
Transfer Board Counterbalance Adjustment
20
Siderail Latch Adjustment
20
Quick Reference Replacement Parts List
21
Assembly Drawings and Parts Lists Fifth Wheel Base Assembly
22
Fifth Wheel Assembly
22
Brake Rod Assembly
27
Drive Link Assembly
27
Assembly Drawings and Parts Lists Caster Assembly
30
Side Control Brake Assembly
31
Brake Rod/Side Control Assembly
34
Side Control Brake Sub−Assembly
35
Side Control Assembly, Colored Components
36
End Control Hydraulics Assembly, Colored Components
40
Lowering Pedal Assembly
41
Head End Pump Pedal Assembly
42
Non−Constant Descent Jack
43
Non−Constant Jack Assembly
44
Constant Descent Jack
45
Drive Link Assembly
51
Brake Rod Assembly
52
Cam Bracket Assembly
56
Big Wheel Carriage Assembly
58
Side Control Big Wheel Carriage Assembly
62
Side Control Big Wheel Linkage Assembly
64
Base Labeling Assembly, Standard Brakes
66
Base Labeling Assembly, 4−Sided Brakes
67
Base Labeling Assembly, Colored Components
68
Base Hood Department Labels
68
Litter Assembly
69
Litter Support Assembly
70
Siderail Assembly
74
Manual Fowler Assembly
78
Pneumatic Fowler Assembly
80
Litter Covers
81
Litter Covers
82
Transfer System Assembly
83
Arm Board Support Assembly
87
Optional Head End Push Handles
88
Push Handle Assembly
89
Optional Foot End Push Handles
90
X−Ray Tray Assembly
91
X−Ray Tray Assembly
92
X−Ray Grid Holder Assembly
94
Fowler X−Ray Cassette Assembly
96
Removable I.V. Pole Assembly
97
Tethered I.V. Pole Assembly
99
Optional 2−Stage I.V. Pole Assembly
101
I.V. Pole Latch Assembly
102
Optional 3−Stage I.V. Pole Assembly
104
Stage I.V. Pole 3Rd Stage Assembly
105
Defibrillator Tray Assembly
107
Stirrup Assembly
109
Stirrup Assembly
111
C−Spine Cassette Holder Assembly
112
Foot Board
116
Serving Tray Assembly
117
Foot Board/Serving Tray Holder
118
Mattresses and Siderail Pads
119
Mattresses and Siderail Pads
120
Service Contract Coverage
121
Return Authorization
122
