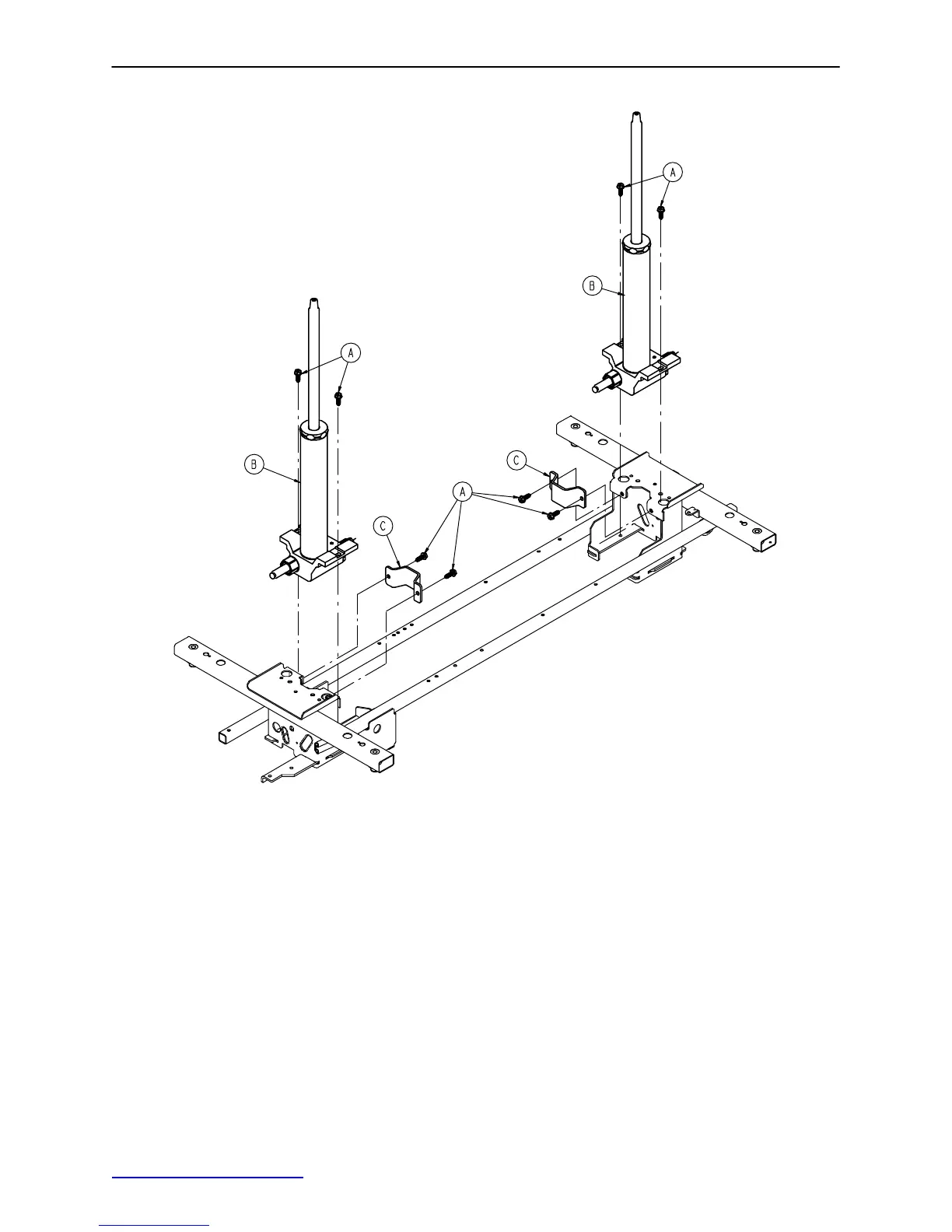

Non−Constant Descent Jack
42
Assembly part number 0853−002−180 (reference only)
Item
Part No.
Part
Name
Qty
.
A
0023−288−000
Hex W
asher Hd. Screw
8
B(
page 43
)
Jack Assembly
,
2
Non−Constant Descent
C
0853−010−007
Reservoir Clamp
2
Return to Table of Contents
