Stryker 1027 - Pneumatic Fowler Assembly

79

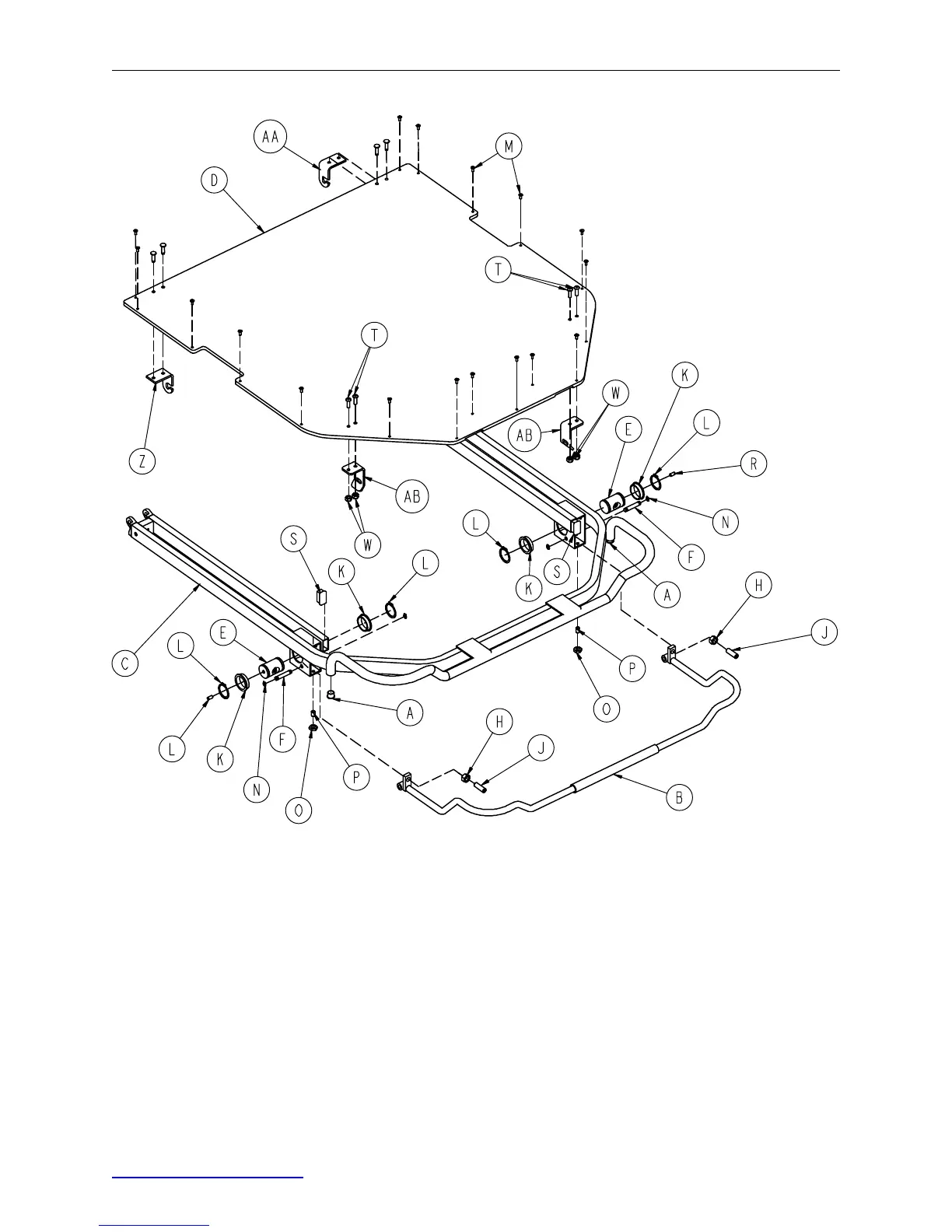

Pneumatic Fowler Assembly
Assembly part number 1020−031−010 (reference only)
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 0037−065−000 Hole Plug 2 N 0028−008−000 Retaining Ring 4
B 1020−031−020 Handle Assembly 1 O 0015−037−000 Jam Nut 2
C 1020−031−015 Fowler Weldment 1 P 0021−104−000 Set Screw 2
D 1020−031−039 Fowler Skin 1 R 0021−119−000 Set Screw 2
E 1510−031−028 Yoke 2 S 1010−032−066 Hole Plug 2
F 1510−031−037 Pivot 2 T 0004−149−000 But. Hd. Cap Screw 4
H 0015−050−000 Hex Nut 2 W 0016−003−000 Self−Locking Nut 4
J 0021−126−000 Set Screw 2 Y 0025−069−000 Pop Rivet 4
K 0946−035−025 Liner 4 Z 1020−023−012 Tray Hinge, Left 1
L 0028−076−000 Retaining Ring 4 AA 1020−023−013 Tray Hinge, Right 1
M 0025−099−000 Pop Rivet 17 AB 1020−023−014 Tray Latch 2
