90

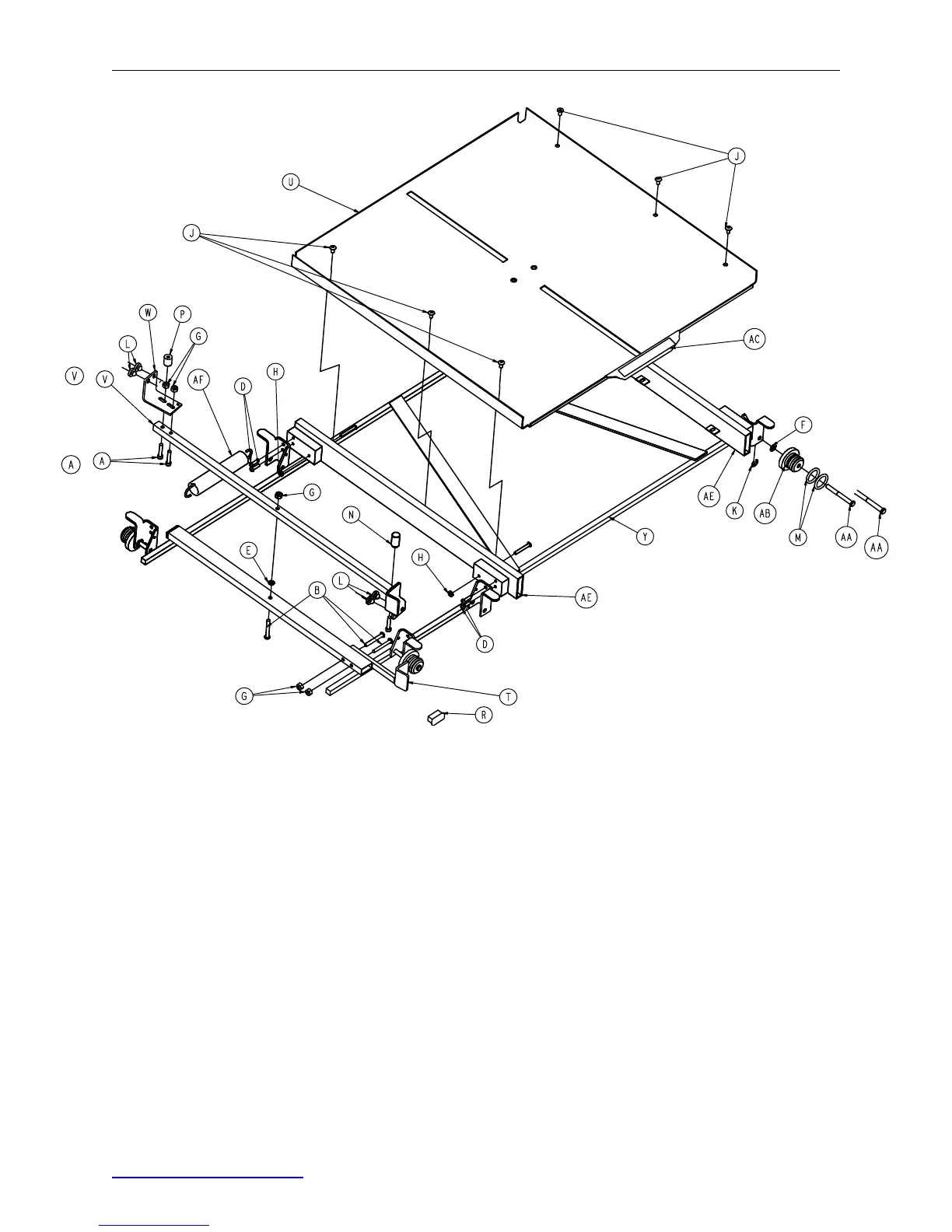

1020−022−010 X−Ray Tray Assembly, Right Side Load
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 0004−026−000 Soc. Hd. Cap Screw 3 P 1010−022−036 Retention Spacer, Lt. 1
B 0004−171−000 But. Hd. Cap Screw 3 R 1010−032−066 Hole Plug 2
C 0004−175−000 But. Hd. Cap Screw 4 T 1020−022−007 Brake Handle 1
D 0004−265−000 But. Hd. Cap Screw 8 U 1020−021−014 Tray Pan 1
E 0011−146−000 Nylon Washer 1 V 1020−022−015 Pivot Tube Ass’y 1
F 0014−004−000 Nylon Flat Washer 4 W 1020−022−036 Brake Adj. Bracket 1
G 0016−003−000 Nylock Hex Nut 5 Y 1020−022−044 Frame Assembly 1
H 0016−014−000 Nylon Hex nut 4 AA 1020−022−025 Wheel Axle 4
J 0025−079−000 Rivet 6 AB 1020−022−059 Wheel 4
K 0028−098−000 E−Ring 4 AC 1020−022−060 Label 1
L 0037−064−000 Rubber Bumper 4 AD 1020−022−061 X−Ray Tray Spacer 4
M 0045−952−000 O−Ring 8 AE 1020−022−062 Drawer Slides 1
N 1010−022−035 Retention Spacer, Rt. 1 AF 0038−253−000 Extension Spring 1
