Stryker 1027 - Page 113

113

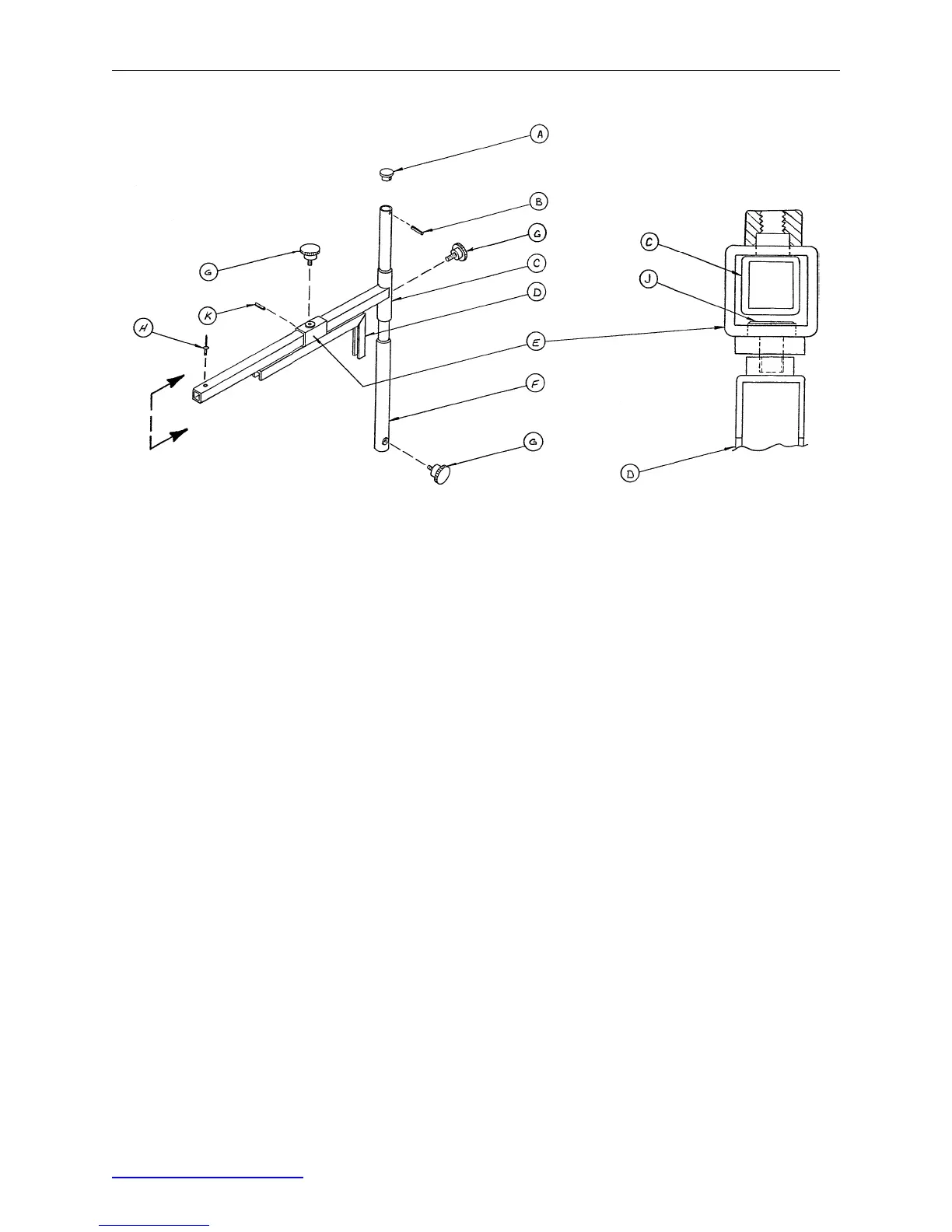

1010−070−010 C−Spine Support Pole Assembly
View
A−A
A
A
Item Part No. Part Name Qty.
A 1010−070−033 Support Tube Cap 1
B 0026−006−000 Roll Pin 1
C 1010−070−034 Support Arm Weldment 1
D 1010−070−042 Cassette Holder Weldment 1
E 1010−070−050 Adjustment Tube Weldment 1
F 1010−070−030 Base Tube Weldment 1
G 1010−070−045 Knob 3
H 0025−055−000 Pop Rivet 1
J 1010−070−044 Pivot Pin 1
K 0026−005−000 Roll Pin 1
