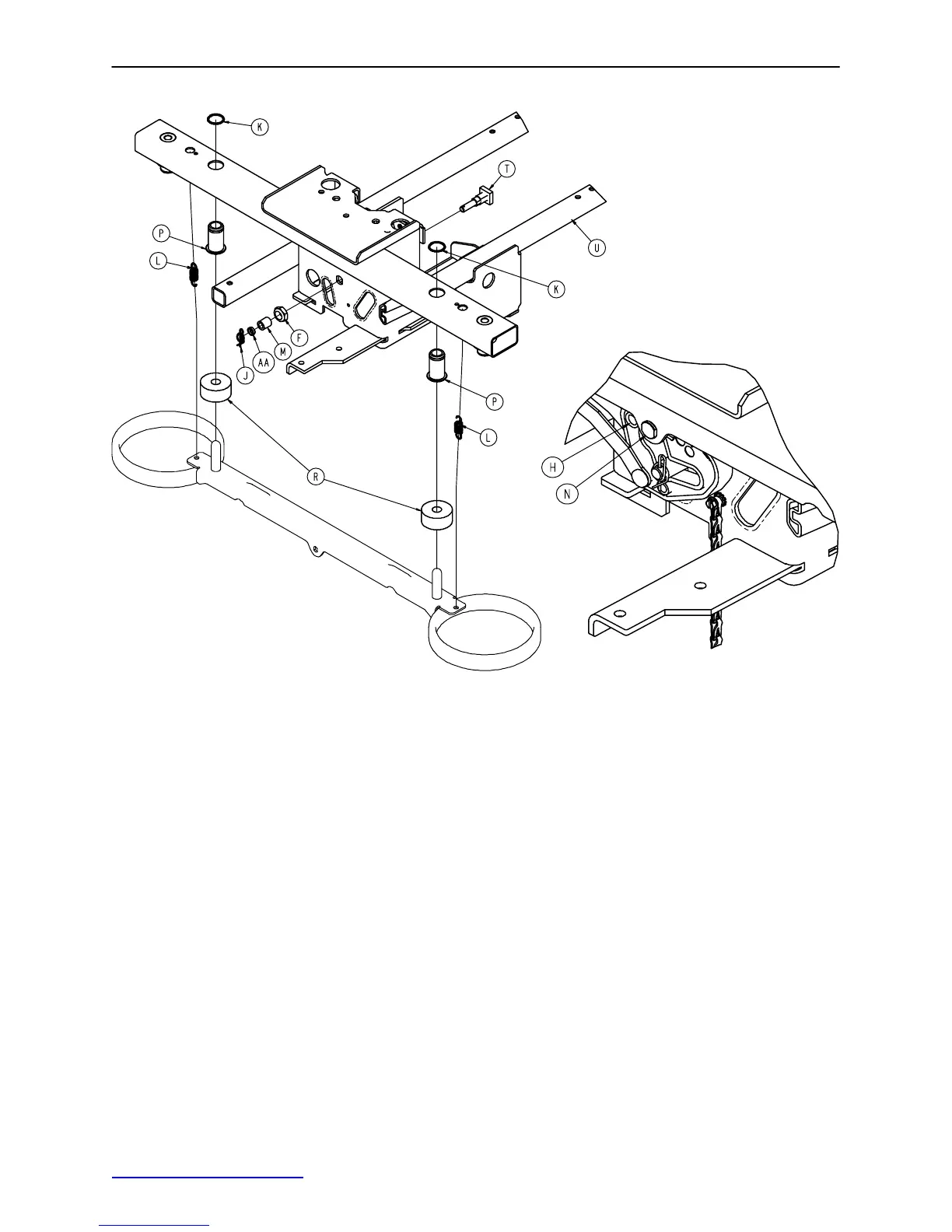

Standard Brake Assembly (Fifth Wheel Base)
25
Typical Both Ends
Typical Assembly Both Ends
Item Part No. Part Name Qty.
A 0003−364−000 Hex Screw 1
B 0005−044−000 Step Bolt 4
C 0011−262−000 Washer 4
D 0013−018−000 Tooth Lock Washer 1
E 0016−035−000 Nylock Hex Nut 4
F 0016−049−000 Nylock Hex Nut 2
G 0023−288−000 Hex Washer Hd. Screw 4
H 0027−012−000 Hitch Pin 2
J 0027−022−000 Rue Ring Cotter 2
K 0028−205−000 Spiral Retaining Ring 4
L 0038−439−000 Extension Spring 4
M 0081−272−000 Needle Bearing 2
N 0753−003−066 Clevis Pin 2
P 0753−003−079 Caster Tube Brake Pin Guide 4
R 0753−003−121 Brake Cushion 4
T 0853−003−230 Bearing Pivot Support 2
U 0853−001−001 Base Weldment 1
V(page 26) Brake Rod Assembly 1
W 0853−005−087 Return Spring Hook 1
Y 3001−200−052 Ground Chain 1
AA 0753−003−131 Spacer 2
