Stryker 1027 - Page 39

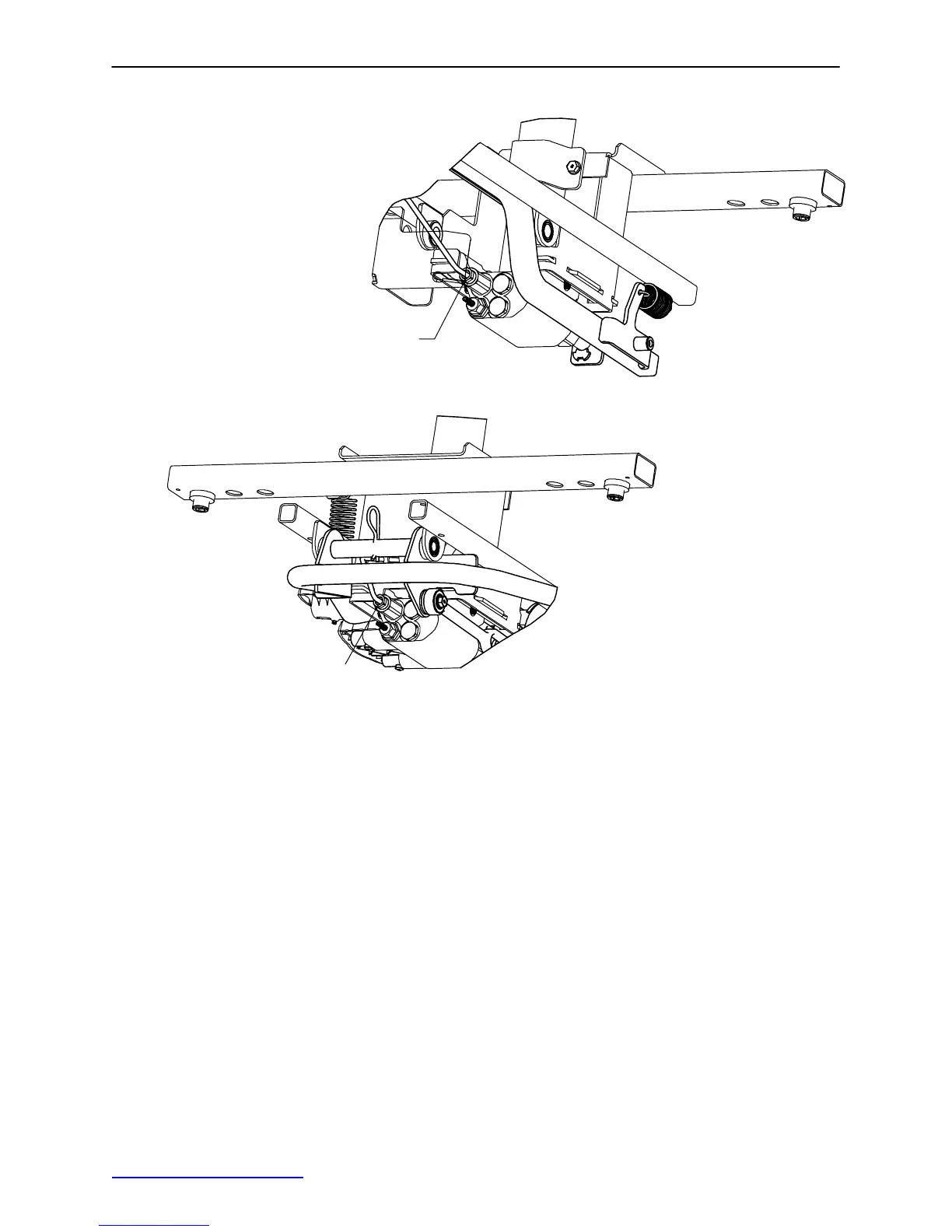

Dual Sided Hydraulics Assembly (Fifth Wheel Base)
38
Insert Head End Release Rod into
Release Valve Assembly as shown
Insert Foot End Release Rod into
Release Valve Assembly as shown
Item Part No. Part Name Qty.
A 0011−023−000 Washer 2
B 0014−071−000 Washer 2
C 0023−288−000 Hex Washer Hd. Screw 7
D 0027−020−000 Rue Ring Cotter 2
E 0027−031−000 Hair Pin Cotter 1
F 0853−005−009 Return Spring 3
G 0753−005−044 Pump Pedal Bushing 2
H 0753−005−089 Pump Ram Plug 2
J 0052−909−000 Clevis Joint 2
K 0853−004−014 Head End Release Rod 1
L 0853−004−015 Foot End Release Rod 1
M(page 40) Lowering Pedal Assembly 1
N 0853−005−035 Pump Connecting Tube Wldmnt 1
P 0853−005−074 Pivot Pin 1
R 0853−005−075 Pump Pedal Link 1
T(page 41) Head End Pump Pedal Ass’y 1
U 0853−010−215 Release Rod Bracket 1
