Stryker 1027 - Page 50

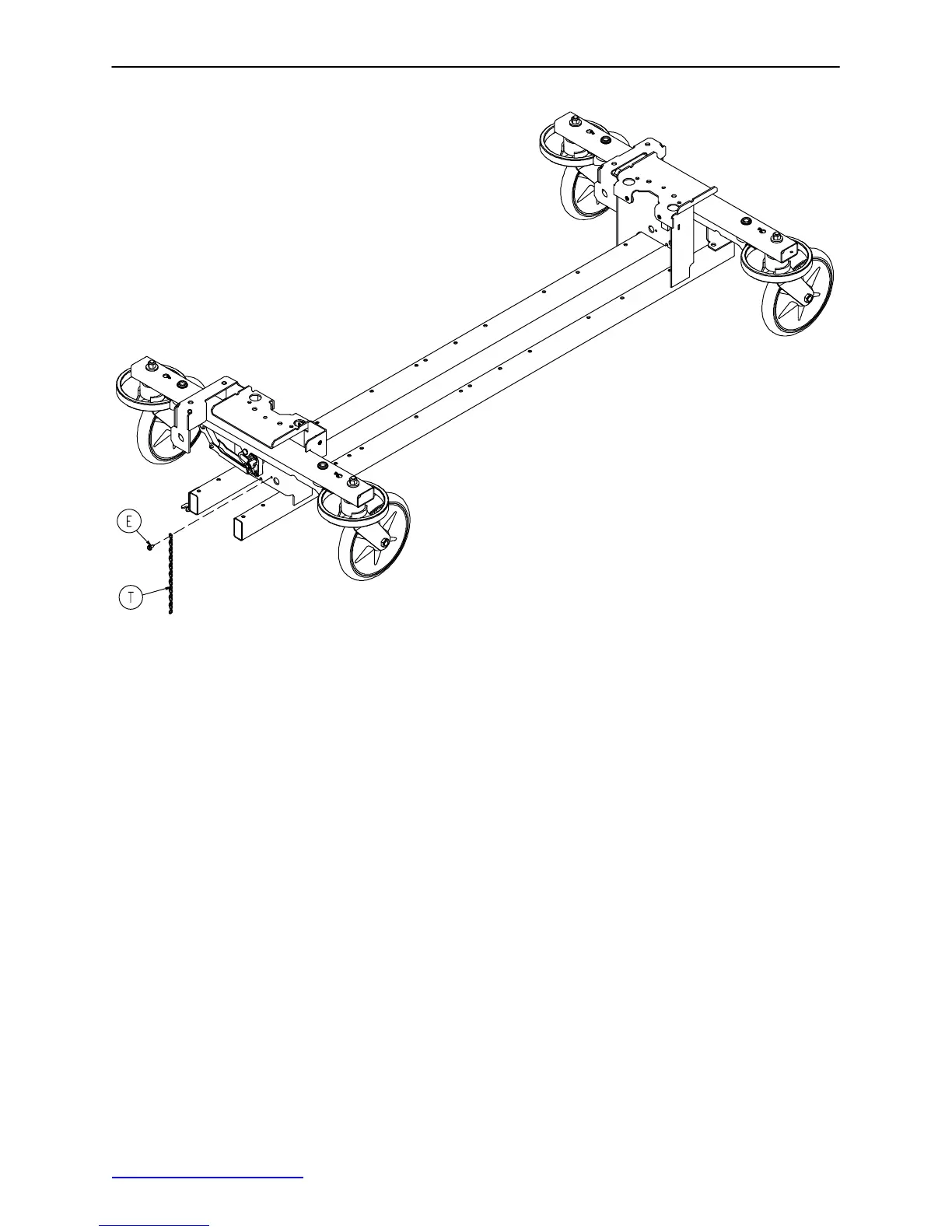

Base Assembly w/Standard Brakes (Big Wheel Base)
49
Item Part No. Part Name Qty.
A 0005−039−000 Step Bolt 4
B 0011−262−000 Washer 4
C 0016−035−000 Nylock Hex Nut 4
D 0016−049−000 Nylock Hex Nut 2
E 0023−025−000 Hex Washer Hd. Screw 1
F 0027−012−000 Hitch Pin 2
G 0027−022−000 Rue Ring Cotter Pin 2
H 0028−037−000 External Retaining Ring 4
J 0038−439−000 Extension Spring 4
K 0081−037−000 Plane Bearing 2
L 0753−003−006 Brake Ring 2
M 0753−003−066 Clevis Pin 2
N 0753−003−079 Caster Tube Brake Pin Guide 4
P 0753−003−121 Brake Cushion 4
R 0753−003−230 Bearing Pivot Support 2
T 0753−010−012 Ground Chain 1
U(page 29) Caster Assembly 4
V 1040−001−301 Base Frame 1
W (page 50) Drive Link Assembly 2
