84

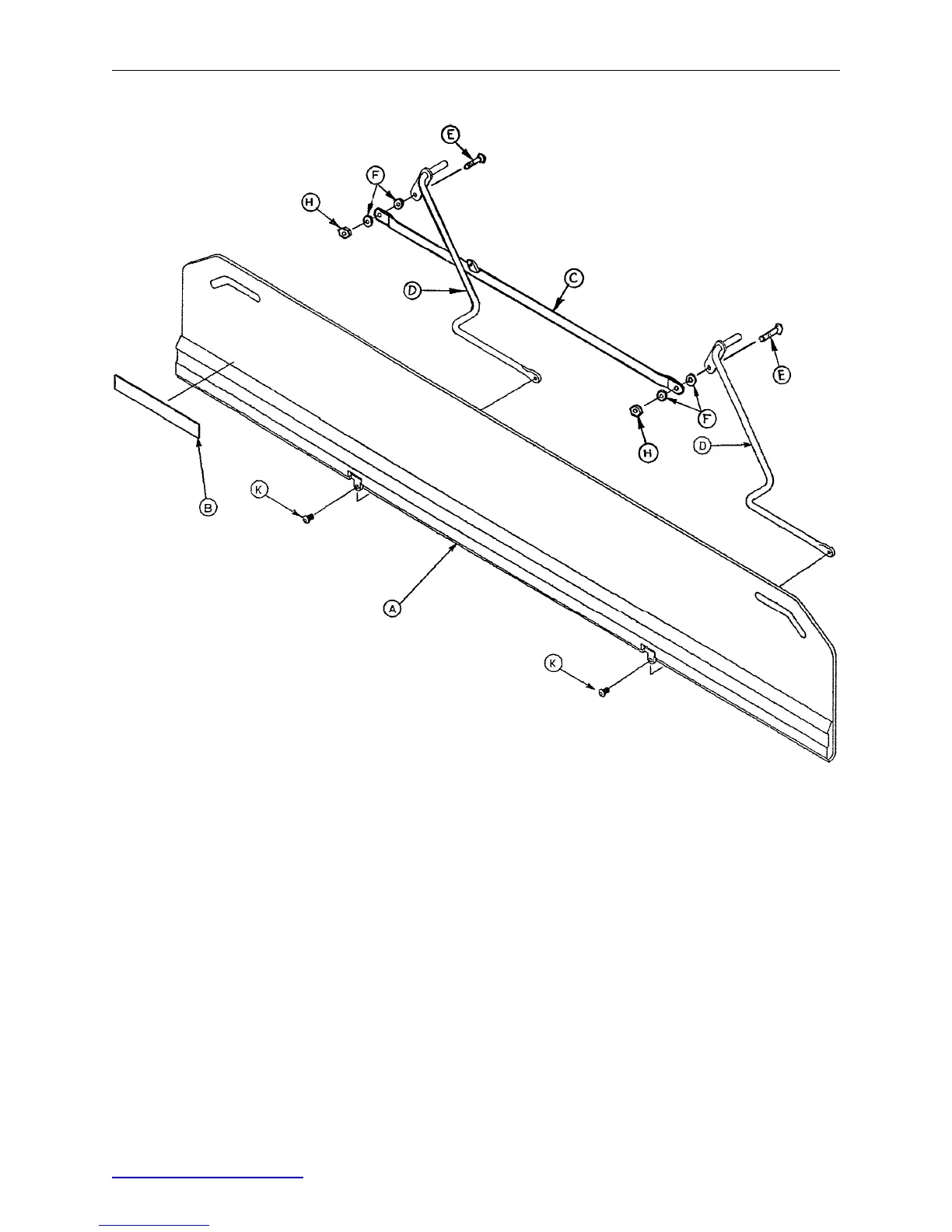

1020−024−010 Transfer Board Assembly, Left
HEAD END
Item Part No. Part Name Qty.
A 1020−032−100 Transfer Board 1
B 0721−024−046 Label 1
C 1020−024−038 Connecting Link Assembly 1
D 1020−024−012 Pivot Arm Assembly, Left 2
E 0001−025−000 Flat Hd. Machine Screw 2
F 0011−224−000 Nylon Flat Washer 4
H 0016−028−000 Nylock Hex Nut 2
K 0004−156−000 Button Hd. Cap Screw 2
