8. Verify proper operation before you return the product to service.

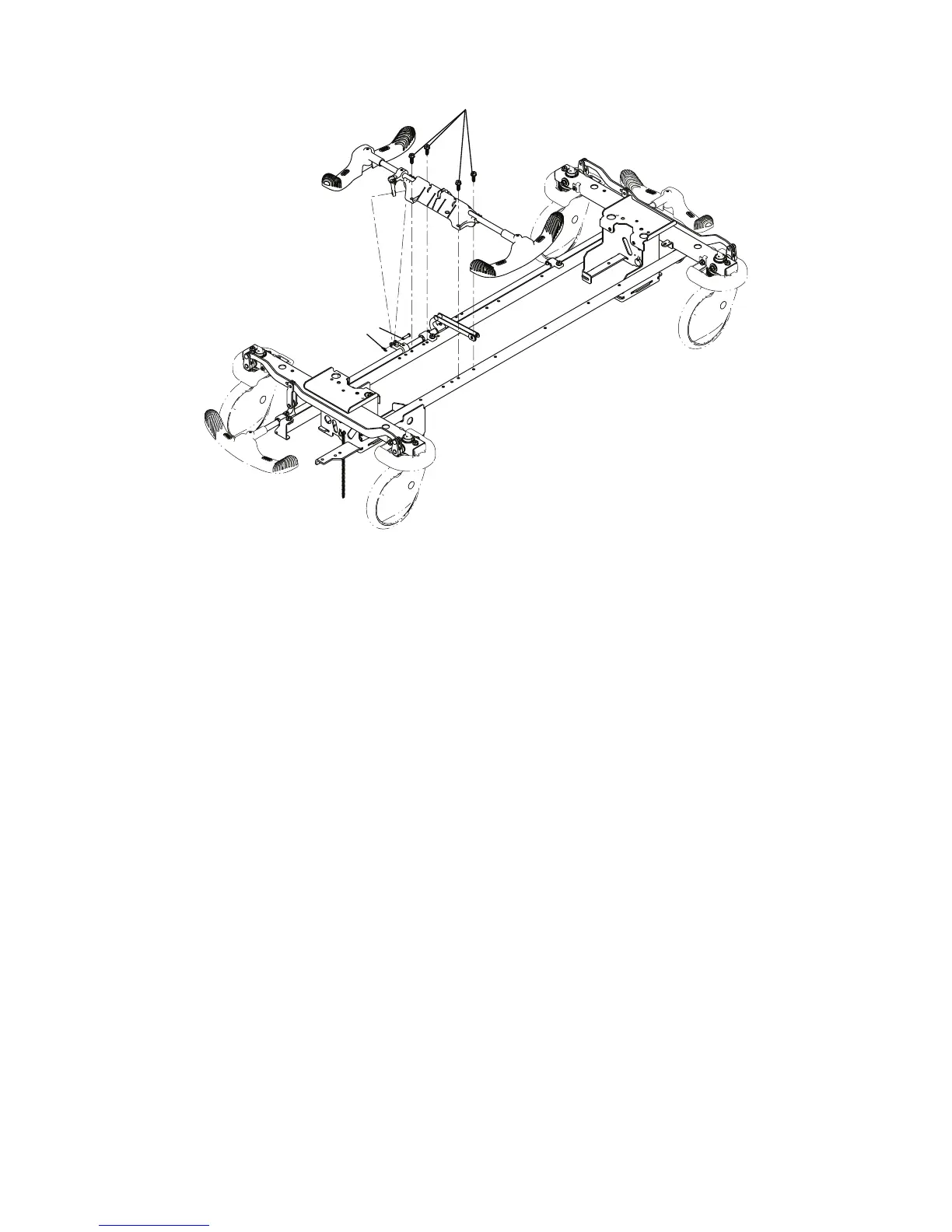

A
B
C
Torque item C
to 13 ± 2 ft-lb
FFiigguurree 77 –– RReeppllaaccee tthhee ssiiddee ccoonnttrrooll bbrraakkee rroodd
FFiifftthh wwhheeeell aasssseemmbbllyy rreeppllaacceemmeenntt
TToooollss RReeqquuiirreedd::
• 1/2” socket
• 3/8” drive ratchet
• 3/8” drive torque wrench (ft-lb)
• Needle nose pliers
• Bungee cords
1. Raise the litter to the highest position.
2. Raise both siderails to the up and latched position.
3. Raise the base hood and support the hood with bungee cords.
4. Using a 1/2” socket with a 3/8” drive ratchet, remove the hex washer head screw (B) that holds the fifth wheel cam drive
link to the cam (Figure 8).
5. Using a 1/2” socket with a 3/8” drive ratchet, remove the two hex washer head screws (A) that secure the fifth wheel
assembly (D) to the base frame.
6. Using needle nose pliers, remove the pump pedal return spring from the fifth wheel bracket.
7. Using needle nose pliers, remove the rue ring cotter that secures the foot end release rod to the release pedal
weldment.
8. Remove the foot end release rod.
9. Working from the patient left side, rotate the fifth wheel assembly counterclockwise. Lift the fifth wheel assembly up and
out.
10.Reverse steps to reinstall. Using a 3/8” drive torque wrench, torque all screws to 13 ± 2 ft-lb.
11.Verify proper operation before you return the product to service.
