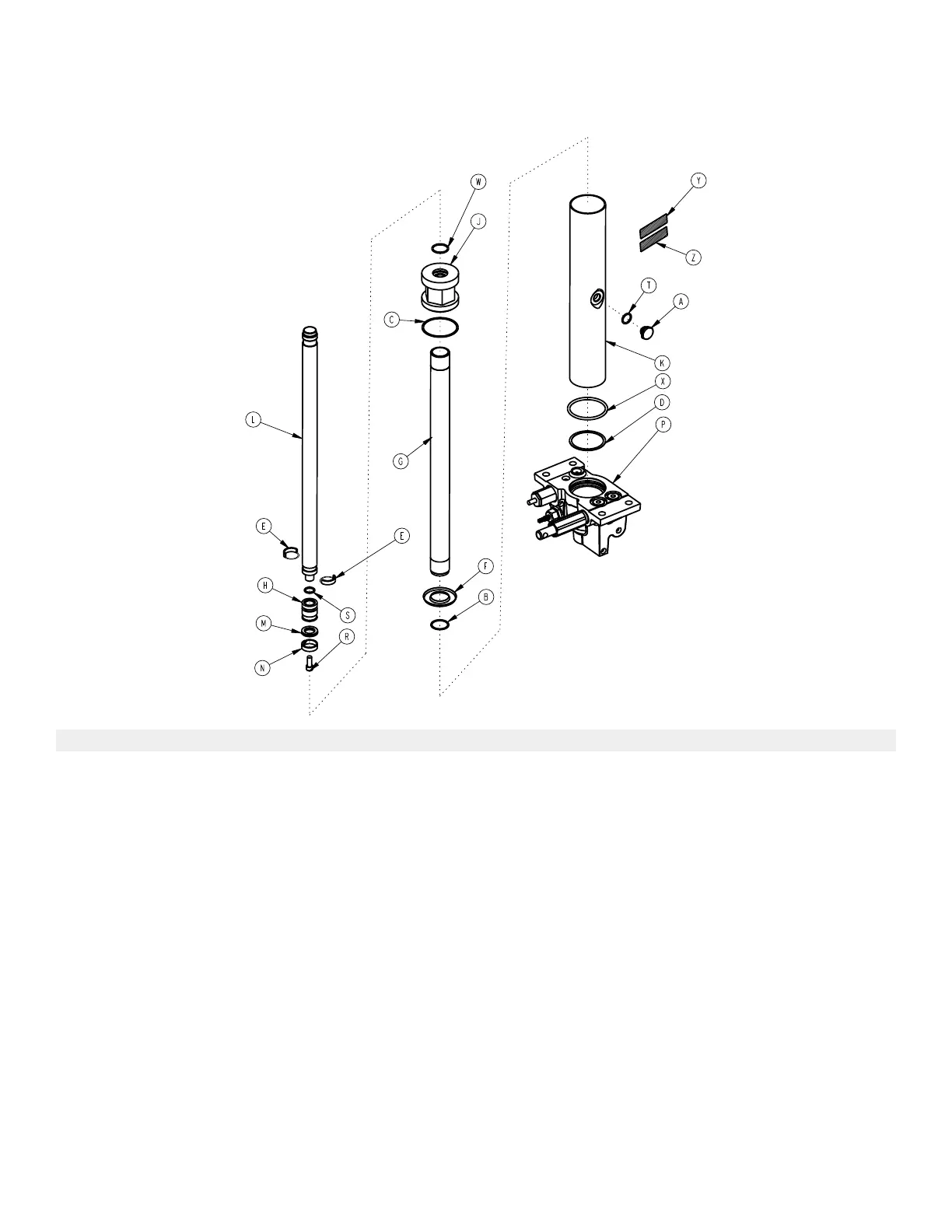

CCoonnssttaanntt ffllooww jjaacckk aasssseemmbbllyy
1231-070-210 Rev C (Reference only)
IItteemm NNuummbbeerr NNaammee QQuuaannttiittyy
A 0388-100-039 Plug 1
B 0390-001-238 Actuator gasket 1
C 0390-001-243 Gasket 1
D 0390-001-244 Base gasket 1
E 0390-002-139 Retaining ring 2
F 0715-001-320 Jack screen 1
G 0715-001-323 Actuator cylinder 1
H 0715-001-331 Piston end 1
J 0715-001-340 Jack cap assembly 1
K 0715-001-422 Reservoir 1
L 0715-101-325 Actuator rod 1
M 0926-020-161 Parker packing 1
N 0926-020-162 Wear ring 1
P 5050-370-100
Constant flow jack base assembly
(page
39)
1
R 0004-014-000 Socket head cap screw 1
S 0045-014-000 O-ring 1
T 0045-015-001 O-ring 1
