www.stryker.com 6390-009-001 REV B 41
Return To Table of Contents
Ref Icon/Button Name Description Type Location
1
Main
Power
Press to power the unit on or off.
Note: The battery power LED also illuminates to
indicate that the Power-LOAD system is on. If the
trolley battery is low, a flashing amber LED may appear.
Button Power-LOAD
Control Panel
2
Battery
Power
If LED is solid green, the Power-LOAD system is on
and not charging.
If LED is flashing green, the battery is charging.
Note: The battery will only charge when the trolley
is locked at the head end of the vehicle patient
compartment.
LED Power-LOAD
Control Panel
3
Error If LED is solid amber, there is a Power-LOAD error.
Press the main power button twice to reset the unit.
If the LED remains solid amber, contact technical
support.
If LED is flashing amber, the Power-LOAD battery
power is low.
LED Power-LOAD
Control Panel
4
Up/Down
Press up (Ç) to raise the lifting arms to the highest
position.
Note: The cot legs do not retract.
Press down (È) to lower the lifting arms and cot.
Button Power-LOAD
Control Panel
5
Manual
Release
Ensure that the cot base is extended before pressing.
Press to unload the cot in the event of a Power-LOAD
power failure. Continue holding the button until the
arms are clear of the cot.
Button Power-LOAD
Control Panel
6
Head
End Lock
Indicator
If LEDs are solid green, the cot head end is locked into
Power-LOAD.
If LEDs are flashing red, the cot head end is not locked
into Power-LOAD.
LED Trolley
Head End

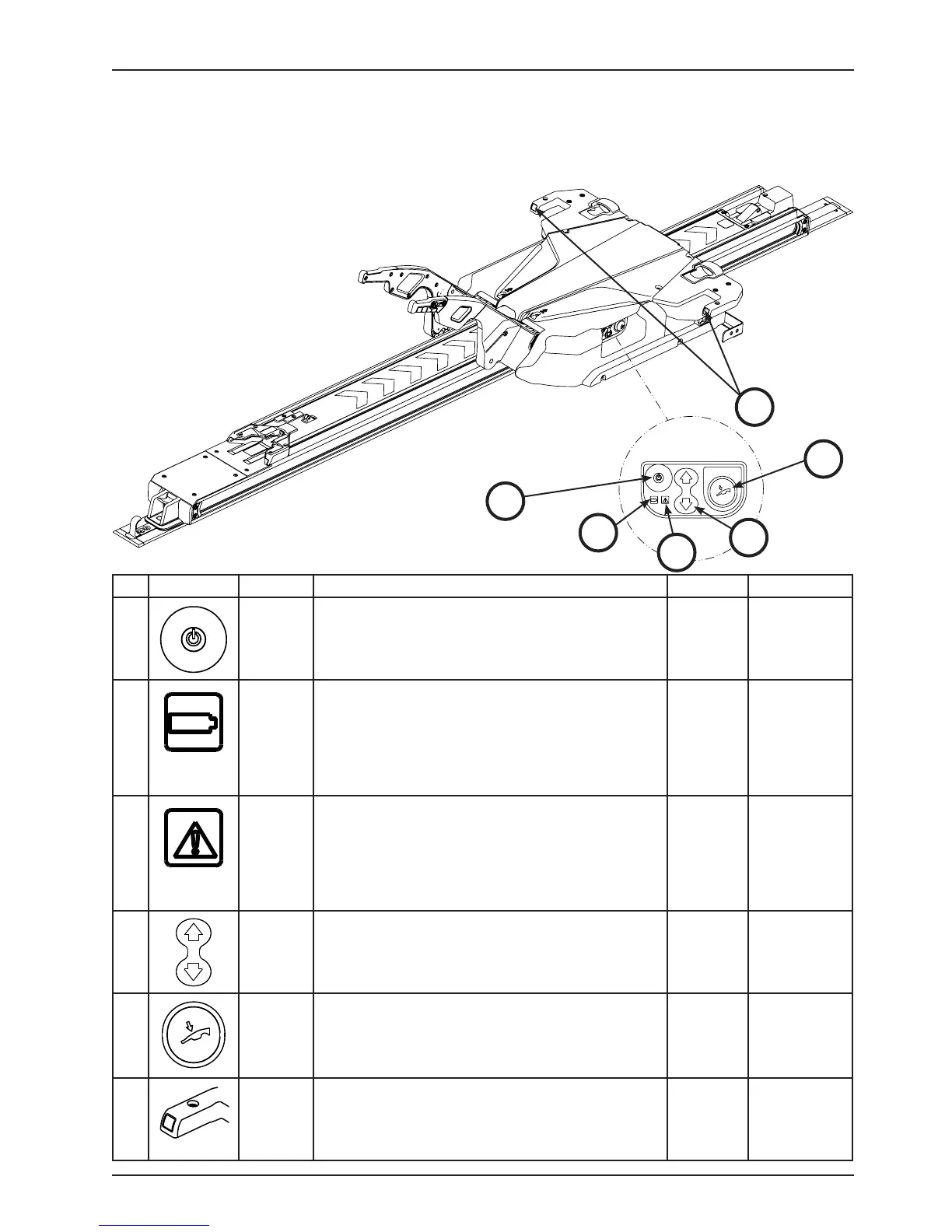

User Controls and LED Indicators
Power-LOAD LED indicators, located on the side Power-LOAD control panel and at the head end of Power-LOAD,
display Power-LOAD battery and system status.
This figure and table highlight all Power-LOAD buttons and
LED indicators.
2
3
1
Power-LOAD Control Panel
4
5
6
Head End
Foot End
Note: If Power-LOAD will not be in
use for a week or more, press the
main power button (1) to turn the unit
off and avoid draining the battery.
