LOADING A POWER-PRO COT INTO A VEHICLE (MODEL 6500/6506 & 6510/6516 WITH THE POWER-
LOAD OPTION)
WARNING
Ǩɣ Loading and/or unloading an occupied cot into a vehicle requires a minimum of two (2) trained operators.
Ǩɣ Make sure that all occupants enter the vehicle patient compartment after the Power-LOAD compatible cot has been
loaded into the vehicle patient compartment.
1. Lift the vehicle bumper to the raised position (if equipped).
2. Raise the lifting arms to guide and pull the trolley out of the vehicle patient compartment as shown in Figure 42.
3. Press and hold the extend (+) button on the cot control switch to extend the cot undercarriage to the set load height
with the cot wheels on the ground. (Figure 43).
4. Push the cot into Power-LOAD until the cot load wheel
pins lock into position as shown in Figure 44. Ensure
that the cot is aligned with the lifting arms when loading.
CAUTION
To avoid the risk of equipment damage, do not slam the cot
into the trolley when loading.
5. Check the head end lock LED indicators to ensure that
the cot is locked into Power-LOAD.
Ǩɣ If the LEDs are solid green, the cot head end is
locked into Power-LOAD.
Ǩɣ If the LEDs are flashing red, the cot head end is
not locked into Power-LOAD.
Operation Guide

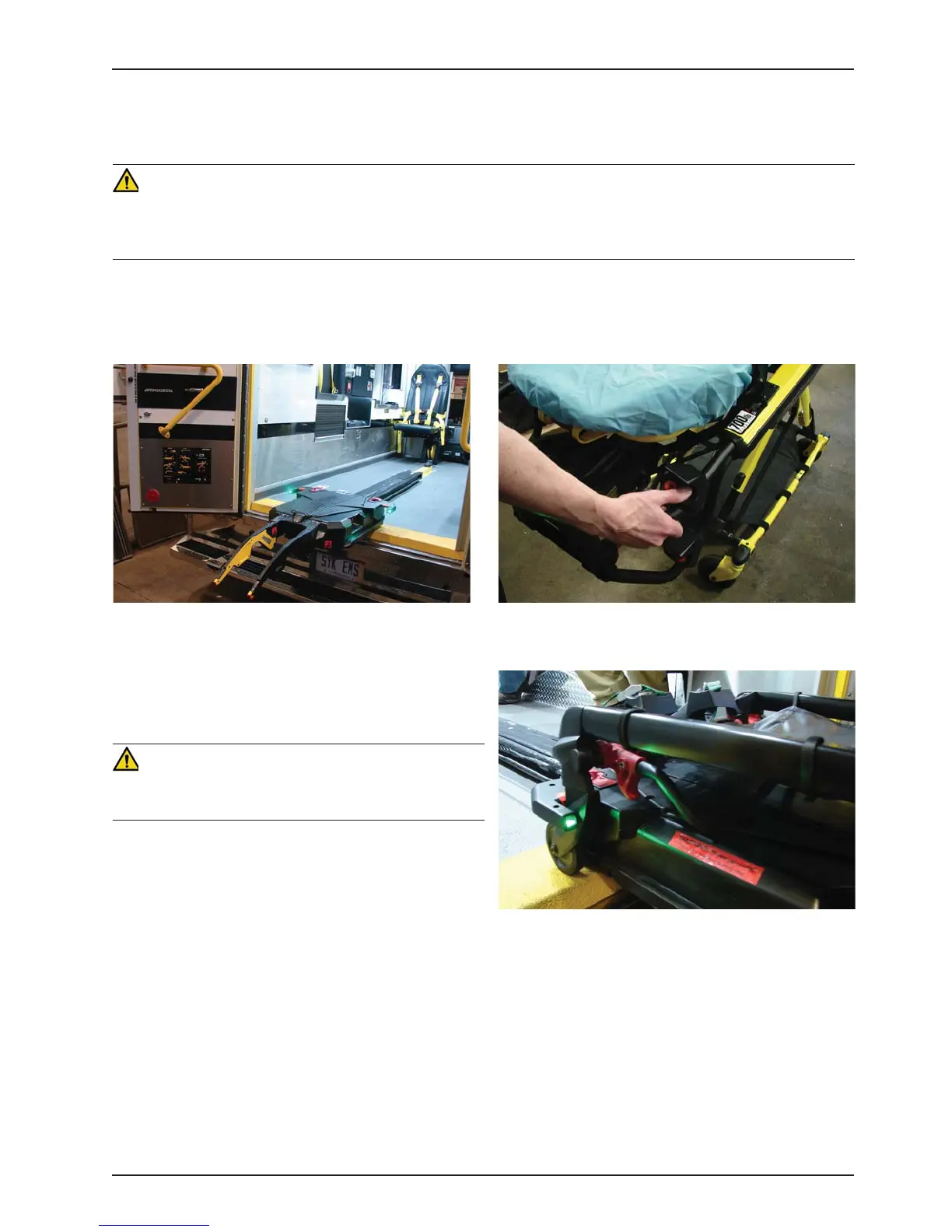

Figure 42 Figure 43
Figure 44
To Next Page
