Manual User Controls
Ref Manual Control Name Description Location
11 Release
Lever
Press and hold to disengage the cot from the vehicle patient
compartment.
Foot End
12
Trolley
Release
Button
Press while raising the lifting arms to release and extend Power-
LOAD from the vehicle patient compartment without a cot.
Then, pull the trolley out of the vehicle patient compartment.
Head End
13
Cot Release
Handle
Lift to unlock the cot from Power-LOAD when the cot base is
fully extended.
Trolley
Head End

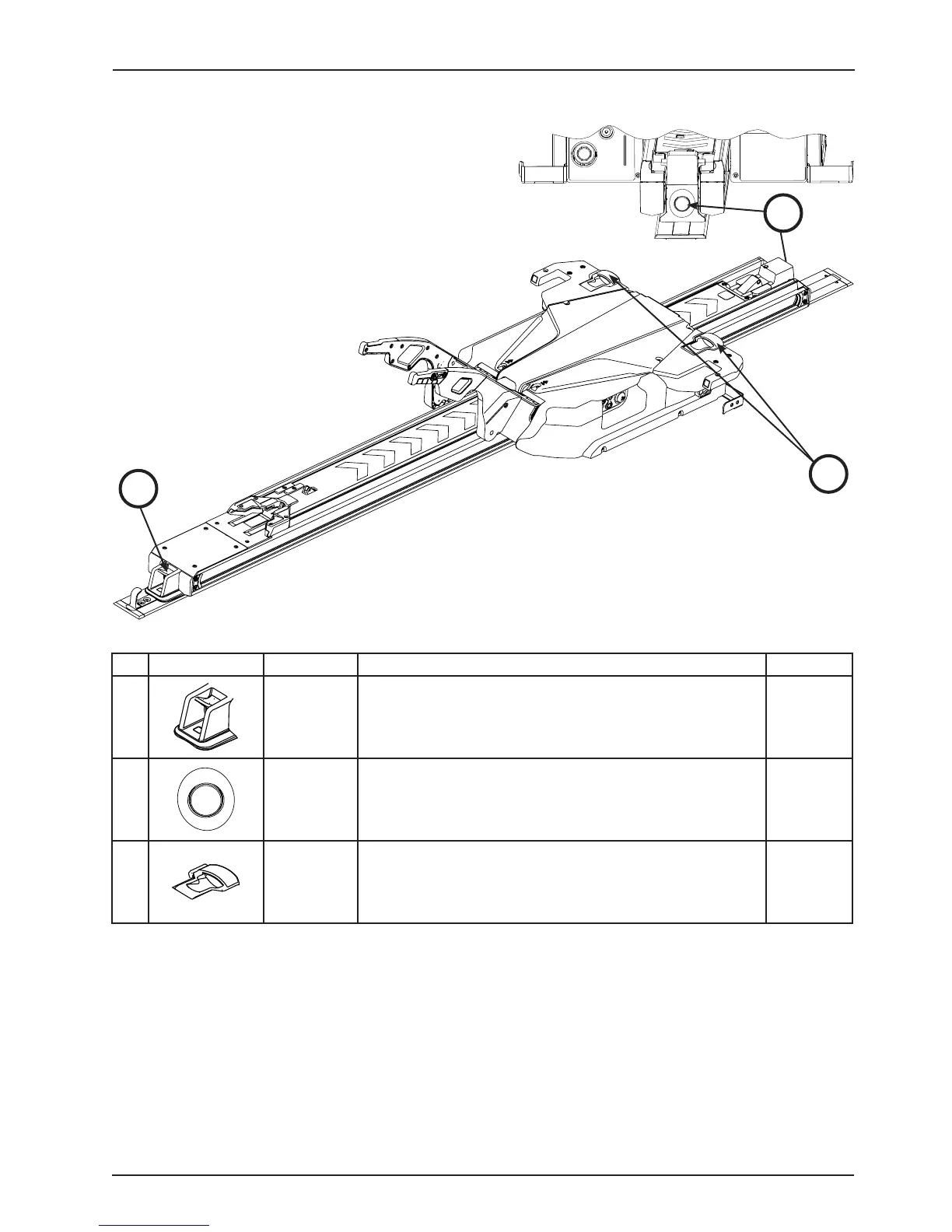

These three manual user controls allow you to release a cot
from Power-LOAD without any power:
Ǩɣ Release Lever
Ǩɣ Trolley Release Button
Ǩɣ Cot Release Handle
11
13
Head End
Foot End
12

Stryker Power-LOAD Specifications

General

Load Capacity	700 lbs (317.5 kg)
Battery Type	Sealed Lead Acid
Charging Time	8 hours
Compatibility	Stryker ambulance cots
Power Source	Battery
Lifting Mechanism	Hydraulic
