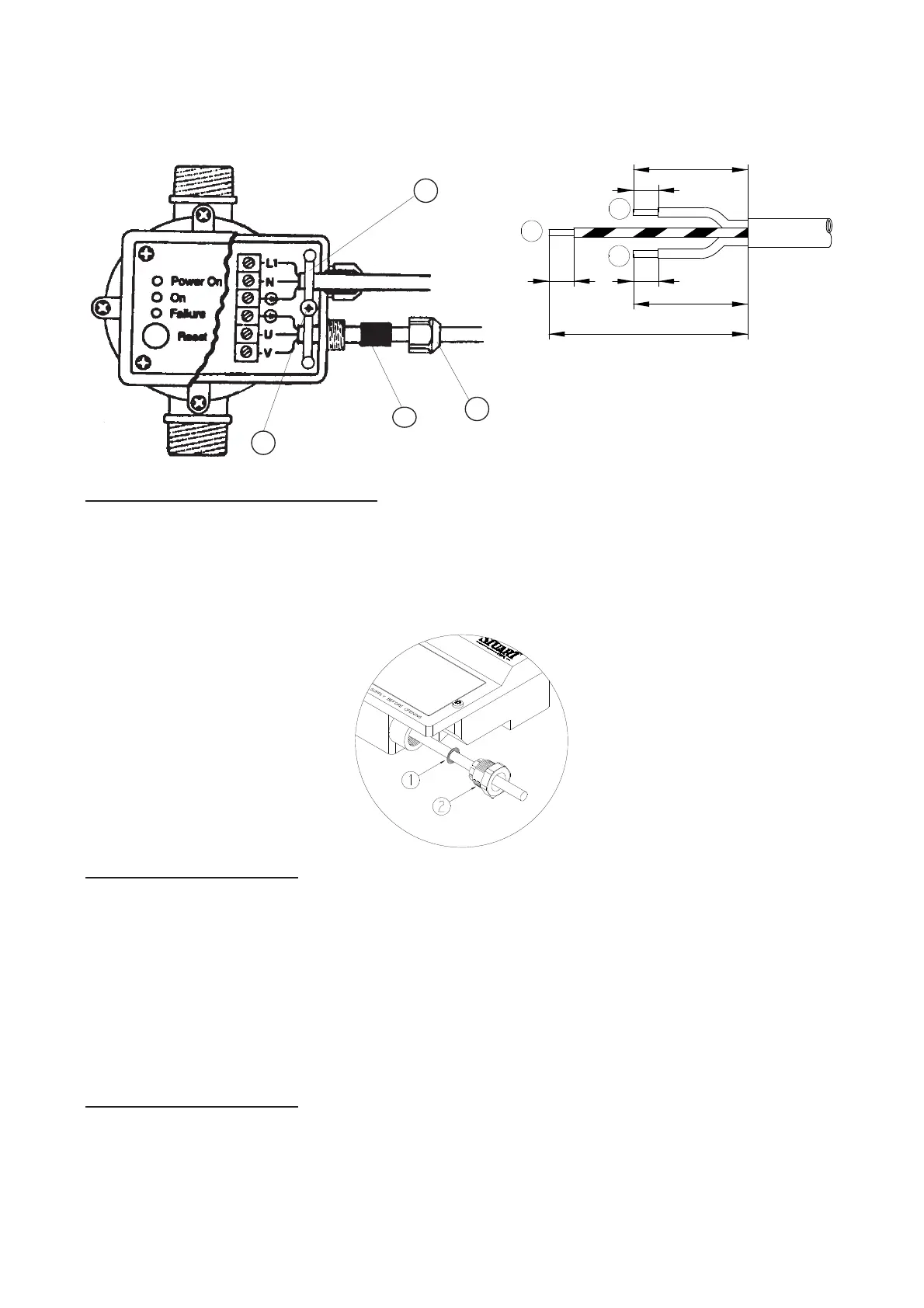

Cable Gland Fitting Instructions (Motor Terminal Box)
(Applicable to 330, 500, 600 and Kennet KB6 models)
To enable correct assembly of the cable gland, the 'O'-ring (Fig. 20 item 1) must be
placed over the cable before the clamping insert (Fig. 20 item 2) can be tightened as
shown.
Note: Cable diameter range:- 6.5 mm to 9.5 mm.
-19-
5. Assemble and secure terminal box cover.
Supply Cord Extension (Models 330, 500, 600, Kennet, Loddon and Thame
Range)
This range of pumps are fitted with a supply cord to the following specifications:-
330, 500 (230V), 600 & Kennet range:- . . . . . .HO5VV-F3 G 0.75 mm² - 6 Amp rating.
500 (110V):- . . . . . . . . . . . . . . . . . . . . . . . . . . . .HO5VV-F3 G 1.0 mm² - 10 Amp rating.
Thame and Loddon range:- . . . . . . . . . . . . . . . .HO7RN-F3 G 1.0 mm² - 10 Amp rating.
If the supply cord is to be extended, a cord of the same specification should be used.
Any connections or junction boxes used should be specifically suited for the application
and installed in accordance with the manufacturers instructions.
Supply Cord Extension (Models Jet 40 and 90)
This range of pumps is fitted with a supply cord suitable for outdoor use. Cord
specification is as follows:-
HO7RN-F3 G 1.0 mm² - 10 Amp rating.
6
E
N
L
30
30
6
6
40
Fig. 18
Fig. 19
(Dims. in mm)
4
1
2
3
Fig. 20
