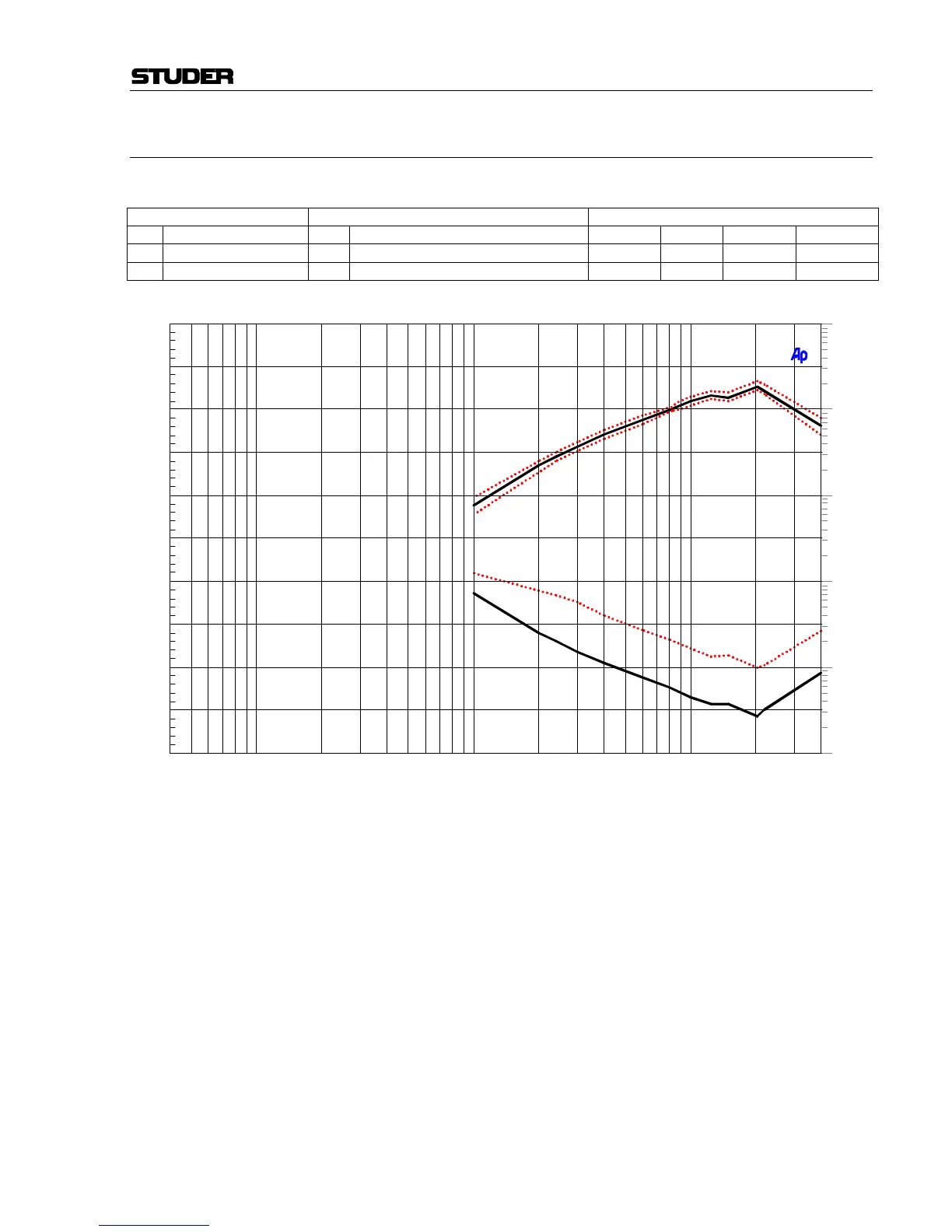

4.3.1.9 A1: Tweeter Amplifier Output
• Connect only the RLt dummy load (10 Ω)
Steps Generator Measurement
No. Description Id Value Test pos. Type Value Limits
1 Tweeter output level G1 –20 dBV/8.1 kHz/sine wave Mt Level 0 dBV ±0.25 dB
2 Tweeter output THD G1 –20 dBV/8.1 kHz/sine wave Mt THD + N < 0.1 % < 0.1 %
Anlr.Level A
Anlr.THD+N Ratio
0.01
0.02
0.05
0.1
0.2
0.5
2
5
10
20
50
100
[%]
40
40 k
50 100 200 500 1 k 2 k 5 k 10 k 20 k
[Hz]
1
Tweeter output
20
10
0
–80
–70
–60
–50
–40
–30
–20
–10
[dBV]
