A Series Active Monitor Speakers
Date printed: 29.02.00 Service E4/21

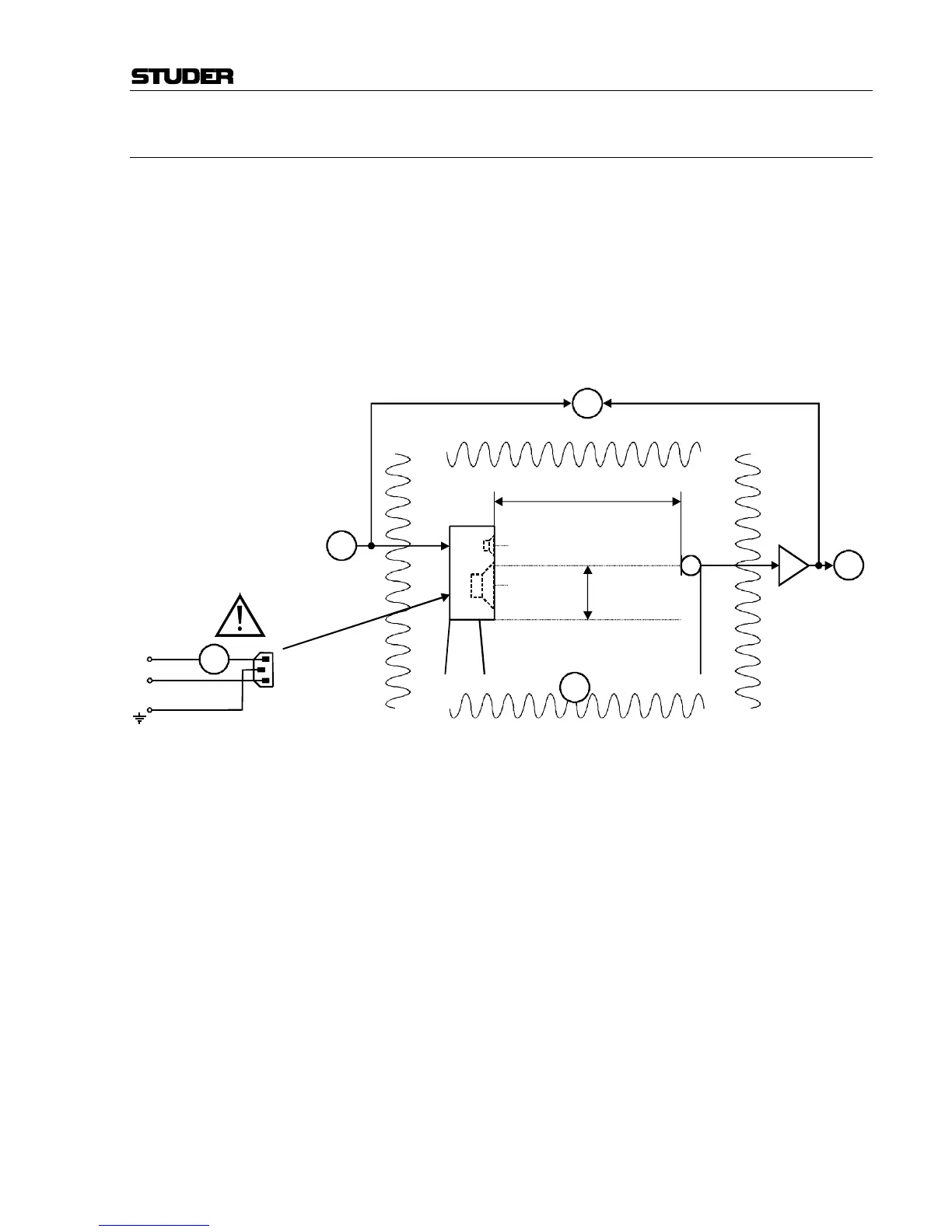

4.4.2.4 A3: Measurement Setup in the Anechoic Room
• Setup the loudspeaker;
• Setup the measurement microphone:
- Distance to the baffle 1 m,
- Equidistant from the two vertical edges,
- Equidistant from the centers of woofer and tweeter units (i.e., h =
23 cm), and
- Perpendicular to the baffle;
• Connect your unit to the mains, set power switch to ON, check the current
consumption ( < 60 mA
AC
for 230 V);
• Connect generator G1 with correct signal polarity.
Note: For more information on frequency response measurements, please refer
to section 4.6 .
h
1 m
=
=
G1
M2
L
N
M1
A1
C
P1
M3
